Elo 64L Open Frame Touchscreen Monitors
Price range: 272,00 € through 506,00 € ex. VAT
Elo 64L Open Frame Touchscreen Monitors – industrial performance, compact design and modern connectivity for 24/7 professional applications.
Elo 64L Open Frame Touchscreen Monitors – Industrial Performance in a Sleek Design
The Elo 64L series redefines the standard for industrial open-frame monitors. With TouchPro® PCAP technology and IK08 impact-resistant glass, these displays deliver a precise touch experience and top-notch durability – perfect for industrial, automation, HMI, gaming, retail, or self-service applications.
Built for 24/7 Performance
Each Elo 64L monitor is designed for continuous operation, 24 hours a day. UL62368 and TUV Rheinland certifications guarantee quality and safety, and the MTBF of 50,000 hours confirms long-term reliability.

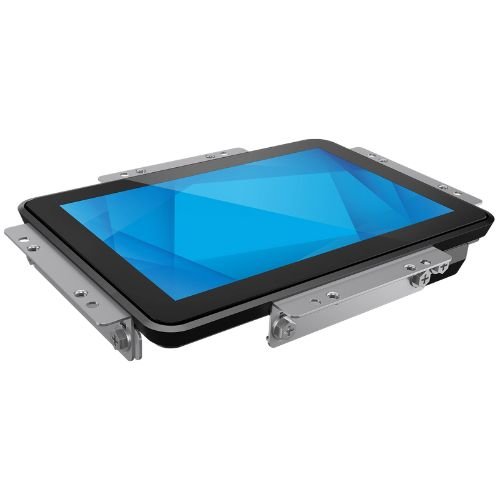

Open-frame design with flexible mounting
Thanks to the VESA 75/100 mm system and compact bezels with narrow edges, the monitors can be easily integrated into kiosks, vending machines or industrial panels. It supports landscape, portrait or table-top mounting, offering complete freedom of integration.

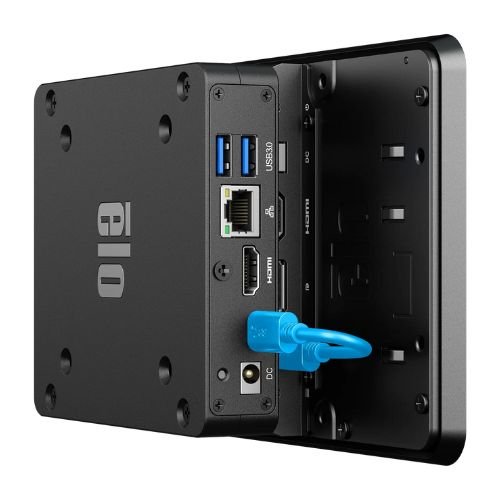

Modern connectivity
The Elo 64L allows power, video signal and touch interface through a single USB-C cable, along with HDMI and DisplayPort ports. The USB touch interface ensures plug-and-play compatibility with Windows, Linux and Android systems.
High clarity and brightness
With resolutions up to Full HD (1920×1080) and brightness up to 500 cd/m², the monitors offer a clear image and vibrant colors. The wide viewing angle (89°/178°) allows for uniform display, regardless of the user’s position.
Advanced TouchPro® PCAP touch technology
PCAP (Projected Capacitive) screens provide a natural touch experience, supporting up to 10 simultaneous points and thru-glass functionality (through 6 mm glass or 3 mm plastic). Perfect for public environments, where additional protection is essential.
📋 General Technical Specifications
| Feature | 7” Elo 0764L E970862 | 10.1” Elo 1064L E971060 | 15.6” Elo 1564L E971256 |
|---|---|---|---|
| LCD technology | TFT Active Matrix | TFT Active Matrix | TFT Active Matrix |
| Native resolution | 1280×800 (16:10) | 1280×800 (16:10) | 1920×1080 (16:9) |
| Touch technology | TouchPro® PCAP, 10 points | TouchPro® PCAP, 10 points | TouchPro® PCAP, 10 points |
| Brightness (LCD/PCAP) | 400 / 360 nits | 500 / 450 nits | 450 / 405 nits |
| Response Time | 40ms | 29 ms | 25ms |
| Viewing angle (H/V) | 88°/176° | 89°/178° | 89°/178° |
| Contrast | 800:1 | 800:1 | 1000:1 |
| Interfaces | USB-C, HDMI, DisplayPort | USB-C, HDMI, DisplayPort | USB-C, HDMI, DisplayPort |
| Mounting | VESA 75×75 mm | VESA 75×75 mm | VESA 75×75 mm |
| Mechanical protection | Clear glass, IK08 | Clear glass, IK08 | Clear glass, IK08 |
| Consumption typical | 6.8W | 7.4W | 12.9W |
| Certifications | CE, UL, FCC, UKCA, TUV | CE, UL, FCC, UKCA, TUV | CE, UL, FCC, UKCA, TUV |
| Lifetime | 50,000 hours | 50,000 hours | 50,000 hours |
Recommended Applications

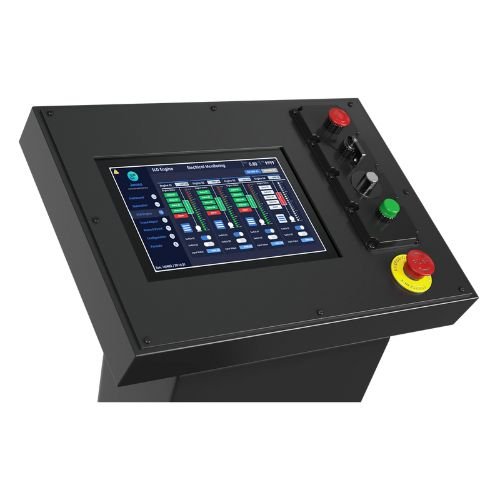

- HMI Systems and Industrial Control Panels
- POS Terminals and Kiosks
- Gaming, Automation and Entertainment Panels
- Interactive Retail and Digital Signage
- Interactive Medical or Educational Solutions
Key Benefits
- 🔌 Single USB-C cable for power and data
- 💎 Clear glass, scratch resistant
- 🧱 Robust construction, IK08 tested
- 🌐 Extended compatibility with multiple platforms
- ⚙️ Mounting and integration flexibility
- 🕒 24/7 non-stop operation, industrial reliability
Why choose ELO 64L?
If you need a reliable industrial touch monitor with stable performance and elegant design, Elo 64L is the perfect choice. Combining advanced PCAP technology, modern USB-C connectivity, and industrial-grade durability, these displays are ideal for precision-demanding applications and durability.
The Elo 64L Open Frame Touchscreen monitors offer an ideal combination of reliability, performance and versatility. Whether used in industry, retail, gaming or automation, these displays guarantee a precise touch experience, a robust design and uninterrupted operation, 24/7.
