Monitor Open Frame Touchscreen 7-inch Elo 0764L E970862
272,00 € incl. VAT
Elo 0764L E970862 – touch monitor (open-frame, 16:10), screen size: 17.8 cm (7”), projected capacitive, multi-touch (10 points), 1280×800 pixels, VESA mount (75×75 mm), response time: 40ms, brightness 400cd, viewing angle 88/176°(H/V), contrast: 800:1, transparent glass, connection: USB (type A), USB-C, display-port, HDMI, touch interface: USB, incl.: cable (USB, type A, USB-C, HDMI), QSG, must be ordered separately: power cable, power supply, color: black

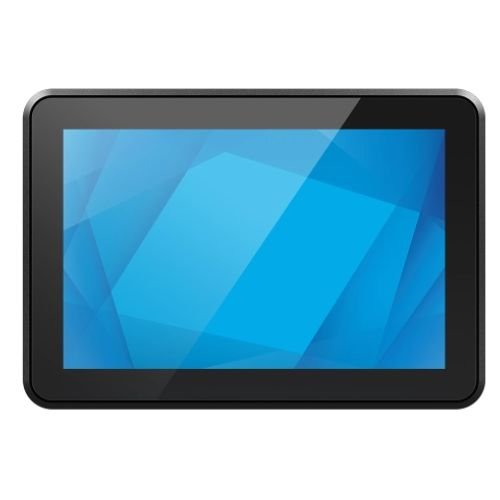

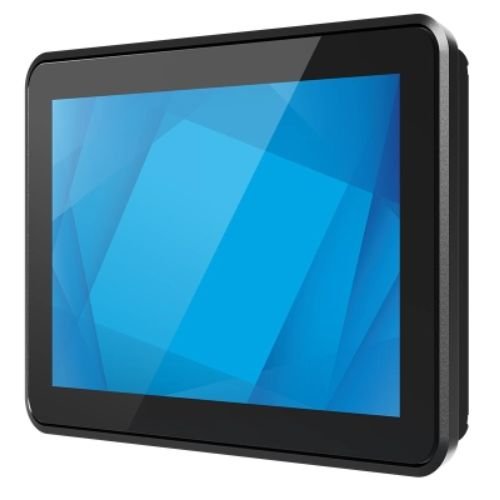

Elo 0764L E970862 7-inch Open Frame Touchscreen Monitor
Compact, powerful and built for professional integration
Elo 0764L is part of the 64L Open Frame series, designed specifically for industrial applications, HMI and interactive kiosks. With a 7-inch Projected Capacitive (PCAP) touchscreen, this model offers a smooth, accurate and reliable touch experience — even under heavy use.
⚙️ Technical Specifications
| Specification | Technical Details |
|---|---|
| Model | Elo 0764L (E970862) |
| Screen Type | Open-frame Touchscreen |
| Touch Technology | TouchPro® Projected Capacitive (PCAP), multi-touch (10 points) |
| Diagonal Size | 7” / 17.8 cm |
| Native Resolution | 1280 × 800 pixels (16:10) |
| Brightness | 400 cd/m² |
| Contrast | 800:1 |
| Battery Time response | 40 ms |
| Viewing angle (H/V) | 88° / 176° |
| Glass type | Clear Glass, scratch resistant |

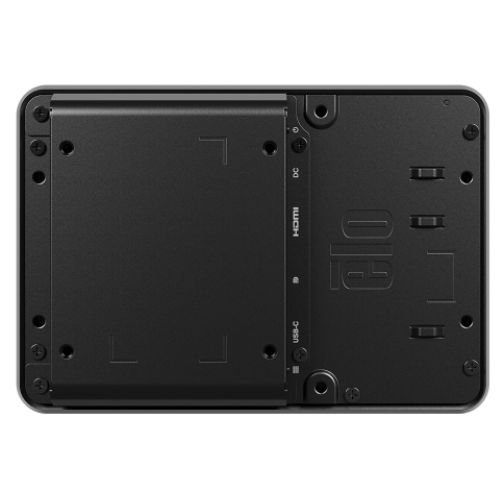

| Mounting | VESA 75 × 75 mm, bracket included |
| Video interfaces | DisplayPort, HDMI |
| Data/touch interfaces | USB Type-A, USB-C |
| OS compatibility | Windows, Linux, Android |
| Typical power consumption | 6.8 W |
| Dimensions (L×H×D) | 176.2 × 120.0 × 31.7 mm |
| Weight | 0.66 kg (without packaging) |
| Color | Black |
| Lifetime (MTBF) | 50,000 hours |
| Certifications | CE, UL, FCC, UKCA, TUV Rheinland, RoHS, WEEE |
| Package included | USB-A cable, USB-C cable, HDMI cable, Quick Start Guide |
| Optional accessories | power cable, DC power adapter |
🧠 Advanced technology and industrial reliability
The Elo 64L series is designed for 24/7 operation, being UL62368 certified and IK08 impact tested, which ensures excellent resistance in industrial and commercial environments.
The PCAP display offers thru-glass support — it works perfectly even and an additional layer of glass up to 6 mm, making it ideal for integration into kiosks or protective panels.
🔌 Full connectivity in a minimalist design
With USB-C, HDMI and DisplayPort ports, the monitor can be quickly connected to any modern system.
A single USB-C cable can handle power, video signal and touch data, simplifying installation and reducing cabling.
🧩 Integration flexibility
The open-frame design allows the monitor to be mounted in various applications:
- Industrial automation (HMI)
- Retail and POS interactive
- Self-service kiosks
- Medical, gaming and entertainment systems
- Educational terminals and digital signs
The narrow bezel and the possibility of landscape, portrait or flat mounting make it a universal solution for integrators.
💡 Key advantages
- 🔹 Precise and responsive touch (10 simultaneous points)
- 🔹 Impact and scratch-resistant glass (IK08)
- 🔹 Unified USB-C connectivity for data, video and power
- 🔹 Brightness 400 cd/m² for optimal visibility
- 🔹 Built for 24/7 operation
- 🔹 Industrially certified and globally compatible (CE, UL, TUV)
🧰 What’s in the box
- Elo 0764L monitor
- HDMI cable
- USB-A ↔ USB-C cable (for touch)
- Mounting brackets and screws
- Quick Setup Guide (QSG)
👉 Note: Power cord and DC adapter must be ordered separately.
Elo 0764L The 7″ Open Frame Touchscreen offers industrial performance and reliability in a compact format, ideal for professional projects. It is a robust and modern solution, perfect for integrators looking for precision, durability and simplicity of implementation.
