Monitor Open Frame Touchscreen 10-inch Elo 1064L E971060
479,16 € incl. VAT
Elo 1064L E971060 – touch monitor (open-frame, 16:10), screen size: 25.7 cm (10.1”), projected capacitive, multi-touch (10 points), 1280×800 pixels, VESA mount (75×75 mm), response time: 29ms, brightness 500cd, viewing angle 89/178°(H/V), contrast: 800:1, transparent glass, connection: USB (type A), USB-C, display-port, HDMI, touch interface: USB, incl.: cable (USB, type A, USB-C, HDMI), QSG, must be ordered separately: power cable, power supply, color: black

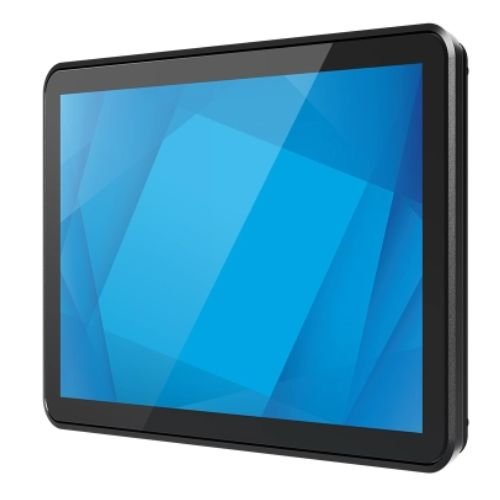

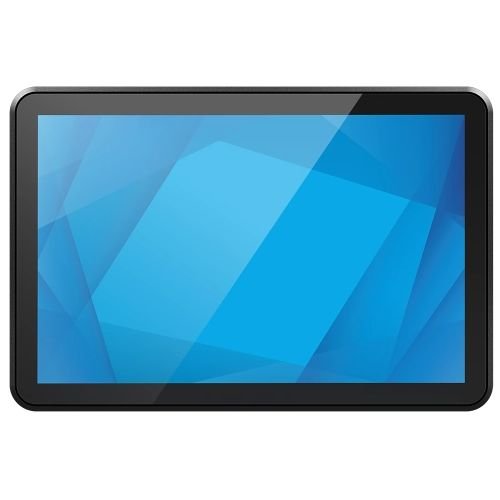

Elo 1064L E971060 10-inch Open Frame Touchscreen Monitor
Power, precision and versatility in a 10-inch format
The Elo 1064L monitor is a high-performance industrial touchscreen, ideal for professional applications that demand reliability, clarity and easy integration. Whether we are talking about payment machines, industrial HMIs or interactive kiosks, this compact display, with TouchPro® PCAP, offers a top-notch multi-touch (10 points) touch experience, with fast response and consistent accuracy.
⚙️ Technical Specifications
| Specification | Technical Details |
|---|---|
| Model | Elo 1064L (E971060) |
| Screen Type | Open-frame Touchscreen |
| Touch technology | TouchPro® Projected Capacitive (PCAP), multi-touch (10 points) |
| Diagonal size | 10.1” / 25.7 cm |
| Native resolution | 1280 × 800 pixels (16:10) |
| Brightness | 500 cd/m² |
| Contrast | 800:1 |
| Response time | 29 ms |
| Viewing angle (H/V) | 89° / 178° |
| Glass type | Clear Glass, scratch resistant |
| Mounting | VESA 75 × 75 mm (bracket included) |
| Video interfaces | DisplayPort, HDMI |
| Data/touch interfaces | USB Type-A, USB-C |
| OS compatibility | Windows, Linux, Android |
| Typical power consumption | 7.4 W |
| Dimensions (L×H×A) | 240.4 × 159.0 × 32.0 mm |
| Weight | 1.25 kg (without packaging) |
| Color | Black |
| Lifetime (MTBF) | 50,000 hours |
| Certifications | CE, UL, FCC, UKCA, TUV Rheinland, RoHS, WEEE |
| Package included | USB-A cable, USB-C cable, HDMI cable, Quick Start Guide |
| Optional accessories | Power cable, DC power adapter |
💡 Superior clarity and instant response
With an impressive brightness of 500 cd/m², the Elo 1064L monitor delivers clear images, vivid colors, and excellent visibility even in bright environments.
The 29 ms response time guarantees smooth, tear-free touch interactions. ∫delay, making it perfect for interactive applications, navigation systems or information points.
🧠 Industrial durability for non-stop applications
Built to UL62368 standards and IK08 certified, the 1064L is designed for 24/7 continuous operation, in demanding environments.
The thin frame and durable glass make it suitable for integration into HMI equipment, control panels, medical systems or public terminals.
🔌 Modern connectivity – one cable for everything
The Elo 1064L simplifies installation and maintenance with USB-C connectivity, which allows power, video, and touch data through a single cable.
It also includes HDMI and DisplayPort ports, compatible with most current systems.
🧩 Integration flexibility
Thanks to the open-frame design, the monitor can be easily mounted îin various types of applications:
-
Interactive kiosks and self-service terminals
-
Industrial automation (HMI, SCADA)
-
Retail digital signage and POS
-
Medical and educational systems
-
Gaming and entertainment applications
Positioning can be landscape, portrait or flat, for a perfect adaptation to your project.
🌍 Designed for professional integrators

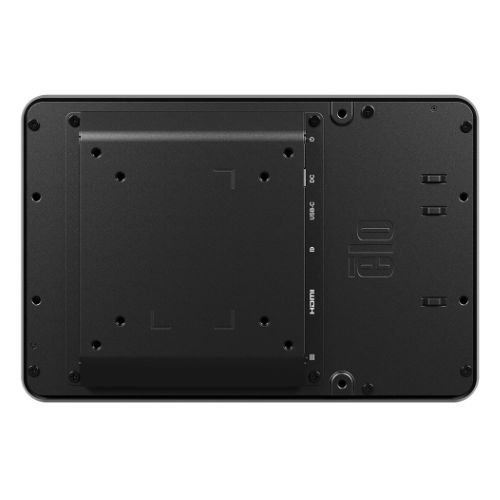

Elo 1064L offers 75×75 mm VESA mounting, complete cable kit and brackets included.
Whether you are an industrial solutions integrator or developing interactive terminals for retail, this model guarantees compatibility, performance and long-term reliability.
⚙️ Key Benefits
-
🔹 High-precision PCAP touchscreen (10 simultaneous points)
-
🔹 High brightness – 500 cd/m²
-
🔹 Full connectivity: USB-C, HDMI, DisplayPort
-
🔹 Robust design, IK08 certified
-
🔹 24/7 operation and 50,000-hour lifespan
-
🔹 Compatible with Windows, Android and Linux
-
🔹 Clear, easy-to-clean glass, ideal for public use
📦 What’s in the package
-
Monitor Elo 1064L
-
USB-A ↔ USB-C (touch) cable
-
HDMI cable
-
Mounting bracket and screws
-
Quick Start Guide
👉 Power cable and adapter must be ordered separately.
Elo 1064L 10” Open Frame Touchscreen offers the perfect combination of performance, durability and industrial elegance. With exceptional clarity, instant response, and simplified connectivity, this monitor is the ideal choice for integration into industrial, commercial, and interactive applications.
Proven durability and compact design make it ideal for projects that demand 24/7 reliability and an uncompromising touch experience.
