Zebra MC9450 Mobile Terminal

Zebra MC9450 ultra-rugged mobile terminal with 5G and Wi-Fi 6E

The Zebra MC9450 mobile terminal is an ultra-rugged industrial computer designed for data collection, barcode scanning and real-time communication in warehouses, logistics centers, factories, ports, freight yards and other large spaces. The model combines Wi-Fi 6E connectivity with access to public and private 5G cellular networks, allowing operators to work even in areas where Wi-Fi infrastructure is not available or does not provide continuous coverage. The Zebra MC9450 continues the MC9000 industrial platform and is recommended for operations carried out both inside buildings and outside. The terminal can maintain access to WMS, ERP and transport management applications in the warehouse, on the ramp, in the logistics yard, at the port or while moving between locations. The platform includes a modern Qualcomm processor, 6 GB RAM, 128 GB Flash memory, replaceable physical keyboards, hot-swap battery and scanning options for codes located near the operator or at distances of more than 30 meters. Standard, freezer and, for certain markets, non-incendive versions for environments with special requirements are available.

5G connectivity for operations without Wi-Fi coverage

The main differentiator of the Zebra MC9450 is its 5G cellular connectivity. The terminal can use public or private 5G networks to transmit data between the operator and the company’s systems, reducing reliance on Wi-Fi access points. Cellular connectivity is particularly useful in:

• logistics yards and vehicle handling areas;
• loading and unloading ramps;
• ports and intermodal terminals;
• warehouses with extensive outdoor areas;
• distribution centers with multiple buildings;
• transportation and delivery operations between locations;
• spaces where installing a complete Wi-Fi infrastructure is difficult;
• private 5G networks deployed in factories and logistics centers.

The Zebra MC9450 includes a nano-SIM slot and eSIM support. The two options can be used to connect to different networks, for redundancy, or to separate public and private networks, depending on carrier configuration and company policies. The terminal’s cellular modem is designed for data communications. Push-to-talk, messaging, and collaboration applications can utilize the data connection through compatible software solutions.

GNSS localization for logistics and transportation yards

In addition to cellular connectivity, the Zebra MC9450 includes dual-band GNSS location. The terminal is compatible with systems such as GPS, GLONASS, Galileo and QZSS, allowing authorized applications to determine the device’s position in outdoor spaces. GNSS functionality can be used for:

• identifying the position of operators in logistics yards;
• location of loading and unloading areas;
• container and trailer management;
• confirmation of operations performed at a specific location;
• tracking processes between buildings;
• transportation, delivery and collection applications;
• asset management in ports and cargo terminals.

Location accuracy depends on satellite visibility, usage environment, software configuration, and enabled location services.

Wi-Fi 6E for performance inside the warehouse

When used indoors, the Zebra MC9450 can connect to Wi-Fi 6E networks in the 2.4 GHz, 5 GHz, and 6 GHz bands. 2×2 MU-MIMO technology and fast roaming capabilities help maintain a stable connection while moving between aisles, picking areas, and access points. The 6 GHz band can provide more available spectrum and reduced congestion in compatible infrastructure. This is important in warehouses where many mobile terminals, tablets, printers, scanners, and other wireless devices are in use simultaneously. Wi-Fi connectivity is used for:

• sending picking orders;
• real-time stock updates;
• confirmation of locations and quantities;
• reception and dispatch of goods;
• push-to-talk communications;
• accessing work instructions;
• data synchronization with WMS and ERP applications.

The Zebra MC9450 is also backward compatible with previous Wi-Fi generations, so it can be deployed before a full infrastructure upgrade to Wi-Fi 6E.

Switching between Wi-Fi and cellular network

By combining Wi-Fi 6E with 5G cellular connectivity, the Zebra MC9450 can support workflows that cross multiple zones. An operator can start an order inside the warehouse, continue scanning on the ramp, and complete the process in the logistics yard without always being dependent on the same WLAN network. Connection policies, network prioritization, and traffic transfer between Wi-Fi and WWAN must be configured by IT based on applications used, active subscriptions, security requirements, and available coverage.

Performance for complex industrial applications

The Zebra MC9450 uses the Qualcomm 4490 platform, with a 2.4 GHz octa-core processor, 6 GB RAM and 128 GB Flash memory. The processing power enables simultaneous use of operational applications, communication tools, scanning solutions and device management functions. The terminal can run:

• WMS and ERP applications;
• logistics yard management solutions;
• transportation and shipping applications;
• Terminal Emulation and green-screen applications;
• push-to-talk communications and secure messaging;
• applications for inventory and traceability;
• quality control solutions;
• applications based on augmented reality or artificial intelligence.

The microSD slot allows for storage expansion of up to 2TB, depending on the card used. This can be used for documents, images, local databases, diagnostic files, and application content.

• Processor: Qualcomm 4490 octa-core, 2.4 GHz
• Memory: 6 GB RAM and 128 GB Flash
• Expansion: microSD up to 2TB
• Operating system: Android Enterprise
• Security: Secure Boot, Verified Boot and FIPS 140-2 validation

Standard or Extended Range scanning

The Zebra MC9450 can be configured with the SE4770 scan engine or the SE58 Extended Range engine with IntelliFocus technology. Both options capture 1D and 2D barcodes, but are designed for different distances and applications.

Zebra SE4770 scan engine

The SE4770 is recommended for reading codes located near the operator. The engine is suitable for receiving, picking, inventory, parcel checking and scanning labels on products or boxes. The SE4770 configuration is suitable for:

• scanning products and packages;
• reading labels on documents;
• picking at the operator level;
• checking goods on the ramp;
• inventory of nearby locations;
• scanning codes inside vehicles.

Zebra SE58 Extended Range Scan Engine

The SE58 engine with IntelliFocus technology allows reading of codes close to the terminal and labels positioned at distances of more than 30 meters. The effective distance depends on the code size, print resolution, contrast, light and scanning angle. The green laser pointer is easier to see than a typical red aiming point and helps the operator select the correct code on high shelves, containers or pallets located at a distance. The SE58 is recommended for:

• warehouses with high shelves;
• logistics yards and outdoor storage areas;
• remote pallet scanning;
• identification of containers and trailers;
• ports and cargo terminals;
• factories and distribution centers with extensive spaces;
• operations where code proximity is not safe or effective.

Physical keyboards for fast data entry

The Zebra MC9450 is available with multiple physical keyboard configurations. The keys are backlit and field replaceable, allowing the terminal to be reused in another operational area without having to ship it to a service center.

• numeric and calculation keyboard with 29 keys;
• numeric and functional keyboard with 34 keys;
• numeric and functional keyboard with 43 keys;
• standard alphanumeric keyboard with 53 keys;
• 53-key Terminal Emulation keyboard for 5250 or VT;
• alphanumeric and functional keyboard with 58 keys.

Numeric keypads are suitable for entering quantities, location numbers and short codes. Alphanumeric variants are recommended for operations that require entering texts, complex identifiers or special commands. Terminal Emulation configurations allow the terminal to be integrated into industrial flows based on traditional applications, while maintaining the commands familiar to operators.

Industrial screen usable with gloves

The Zebra MC9450 is equipped with a 4.3-inch color display, WVGA resolution of 800 × 480 pixels and a typical brightness of 600 nits. The capacitive touch panel can be used with a finger, with gloves or with a compatible conductive stylus. The display is protected by Corning Gorilla Glass and can be used even when wet. These features are important for operators working in production, logistics yards, ports, cold rooms or spaces exposed to dust and moisture.

Extended battery life and hot-swap battery

The Zebra MC9450 uses a 7,000 mAh PowerPrecision+ battery, designed for full-shift industrial operations. PowerPrecision+ technology provides information on battery health, charge cycles and available capacity, helping administrators identify batteries that need to be replaced. Hot-swap temporarily maintains the terminal session during battery changes. The operator can insert a charged battery without losing data or completely restarting active applications. An optional Bluetooth Low Energy battery can be used. Together with Zebra Device Tracker licenses and solutions, this can help locate the terminal even if the device is turned off or the main battery is low on power.

• Standard battery: PowerPrecision+ Li-Ion, 7,000 mAh, 25.2 Wh
• Optional BLE battery: 7,000 mAh, 25.2 Wh
• Freezer battery: 5,000 mAh, 18.8 Wh
• Non-incendive battery: 7,000 mAh, for compatible configurations
• Hot-swap: temporary session retention
• Fast charging: depending on the cradle and the source used

Standard, freezer and non-flammable configurations

Zebra MC9450 Standard

The standard configuration is recommended for warehouses, factories, distribution centers, ports, docks and logistics yards. The standard terminal can operate in a temperature range of approximately -20°C to +50°C.

Zebra MC9450 Freezer

The freezer version is designed for cold rooms, freezers and cold chain logistics. It includes a heated touch panel, a heated scanning window and a dedicated low temperature battery. The freezer version screen is optically bonded to the touch panel and the heating systems help to reduce condensation when the terminal is used in cold environments. The minimum operating temperature can reach approximately -30°C. For cold room applications the freezer configuration should be chosen from the factory. A standard terminal temporarily used in very low temperatures does not offer the same protection against condensation.

Zebra MC9450 Non-Fireproof

Non-incendive versions are available for certain markets and configurations, designed for areas where flammable gases, vapors, dust or materials may be present. Availability and certifications should be checked per country and SKU.

Ultra-rugged construction for the toughest environments

The Zebra MC9450 is designed for continuous use in environments exposed to dust, water, shock, vibration and wide temperature variations. The housing is IP65 and IP68 certified with the battery installed. The terminal withstands repeated drops to concrete and thousands of tumbles. The screen and scan engine window are protected by Corning Gorilla Glass, two of the most exposed components of an industrial terminal.

• Sealing: IP65 and IP68
• Drop resistance: up to 3.65 m under Zebra testing conditions
• Drop resistance in use: 2.4 m onto concrete, within the specified temperature range
• Freezer version: drops up to 2.1 m onto concrete
• Tumbling test: 6,000 tumbles from 1 m
• Test standard: MIL-STD-810H
• Screen protection: Corning Gorilla Glass
• Scanner window protection: Corning Gorilla Glass

Cameras for documenting operations

Depending on the configuration, the Zebra MC9450 can include an 8 MP front-facing camera and a 16 MP rear-facing camera with autofocus, LED flash, and HDR. The rear-facing camera can be used for:

• photographing damaged goods;
• documenting the condition of packages and pallets;
• recording non-conformities;
• quality control;
• capturing transport documents;
• confirmation of loading and unloading;
• documentation of assets in yards and ports.

The front camera can support video collaboration, remote training, and facial authentication in compatible applications. With OCR Wedge and the necessary licenses, the terminal can automatically capture information such as container identification numbers, vehicle serial numbers, tire codes, and other printed data.

Bluetooth 5.3 and NFC

The Zebra MC9450 includes Bluetooth 5.3 for connecting to headsets, mobile printers, wearable scanners and other compatible peripherals. Bluetooth 5.3 can improve power efficiency, stability and security of connections over previous generations. NFC allows reading of compatible cards and tags and can simplify pairing the terminal with select Zebra peripherals.

• Bluetooth 5.3 Class 2;
• Bluetooth Low Energy;
• Secondary BLE via optional battery;
• NFC ISO 14443 Type A and B;
• FeliCa compatibility;
• ISO 15693 compatibility.

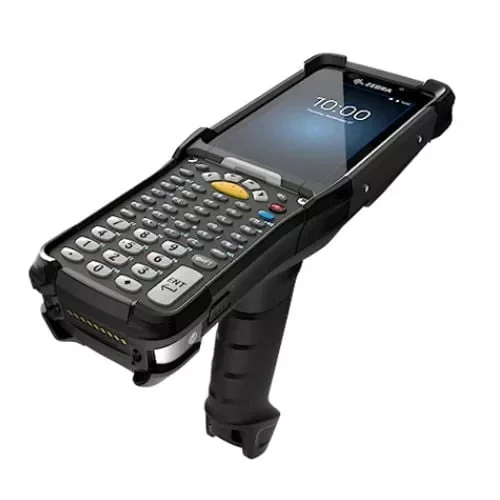

Compatibility with Zebra MC9300 accessories

The Zebra MC9450 maintains compatibility with the Zebra MC9300 accessory portfolio. Companies upgrading their fleet can reuse many existing cradles, chargers, batteries and accessories, reducing the cost of transition. With a compatible adapter, certain charging systems for MC9200 and older generations can also be used. Compatibility should be verified by the full terminal code and accessory SKU. The accessory portfolio may include:

• individual cradle with charger for spare battery;
• ShareCradle with four slots;
• ShareCradle Ethernet;
• chargers for four or 16 batteries;
• adapters for older charging infrastructures;
• USB cables and communication cups;
• rubber protective casings;
• hand and shoulder straps;
• belt covers;
• forklift and vehicle supports.

Power supplies, DC cables, and mains cables may be sold separately, depending on the accessory package.

Recommended applications for Zebra MC9450

Warehouses and distribution centers

• receipt and verification of goods;
• put-away and location allocation;
• picking and preparing orders;
• cross docking;
• stock control;
• shipping and reverse logistics;
• Cold Storage operations;
• remote pallet scanning.

Logistics yards, ports and freight terminals

• container and trailer management;
• tracking shipments;
• scanning external assets;
• confirmation of loading and unloading;
• identification of wagons, vehicles and goods;
• communication through public or private 5G networks;
• operations in areas without Wi-Fi coverage.

output

• inventory and materials management;
• feeding production lines;
• tracking work in progress;
• traceability of components and batches;
• quality control;
• product testing and verification;
• use in factories with private 5G networks.

Retail and distribution

• product reception;
• preparing online orders;
• stock management in the store’s warehouse;
• checking and updating prices;
• returns and reverse logistics;
• operations between the store, warehouse and outdoor areas.

Zebra MC9450 Technical Specifications

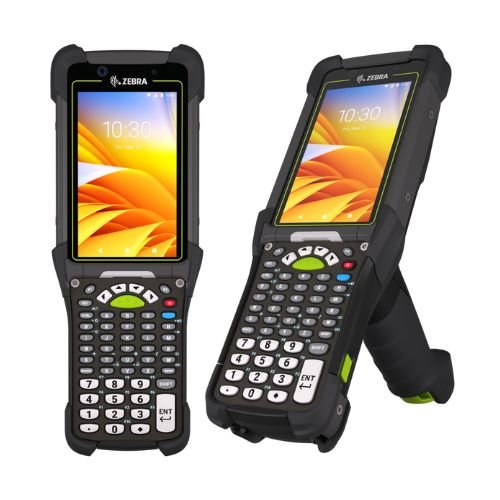

Zebra MC9450 versus Zebra MC9400

The Zebra MC9450 and Zebra MC9400 use the same industrial platform and offer a Qualcomm 4490 processor, Wi-Fi 6E, Bluetooth 5.3, SE4770 or SE58 scan engines, hot-swap battery, and standard or freezer configurations. The main difference is cellular connectivity:

• Zebra MC9400: Wi-Fi, Bluetooth and NFC connectivity, for operations carried out in areas covered by WLAN infrastructure;
• Zebra MC9450: Wi-Fi 6E plus 5G cellular connectivity, nano-SIM, eSIM and GNSS, for indoor and outdoor operations.

The Zebra MC9400 is suitable for warehouses and factories with full Wi-Fi coverage. The Zebra MC9450 is recommended when the terminal also needs to be used in logistics yards, ports, ramps, transportation or other locations without permanent WLAN coverage.

Why choose the Zebra MC9450 mobile terminal?

• public and private 5G cellular connectivity;
• nano-SIM and eSIM for flexibility and redundancy;
• dual-band GNSS for outdoor applications;
• Wi-Fi 6E for use in warehouses and factories;
• standard or Extended Range 1D/2D scanning;
• scanning range of over 30 meters with the SE58 engine;
• Qualcomm processor and 6 GB RAM/128 GB Flash memory;
• replaceable physical keyboards;
• 7,000 mAh PowerPrecision+ hot-swap battery;
• standard, freezer and non-flammable configurations;
• IP65/IP68 protection;
• compatibility with numerous Zebra MC9300 accessories.

Order Zebra MC9450 in the right configuration

The Zebra MC9450 mobile computer is available in multiple scanning, keyboard, camera, battery and operating environment configurations. Availability of cellular bands, 5G features and certifications may vary by country, carrier and SKU. To select the correct configuration, you must determine:

• the public or private network that will be used;
• cellular bands supported by the operator;
• using a nano-SIM, eSIM, or both;
• the distance required to scan the codes;
• keyboard type;
• standard environment, freezer or with special requirements;
• the number of terminals and batteries that need to be charged simultaneously;
• compatibility with existing Zebra MC9300 infrastructure.

Contact the AutoID team to verify the SKU, mobile carrier compatibility, and choose the right cradles, batteries, power supplies, accessories, and Zebra OneCare services for your project. https://youtu.be/Ype3T2hQjtA
