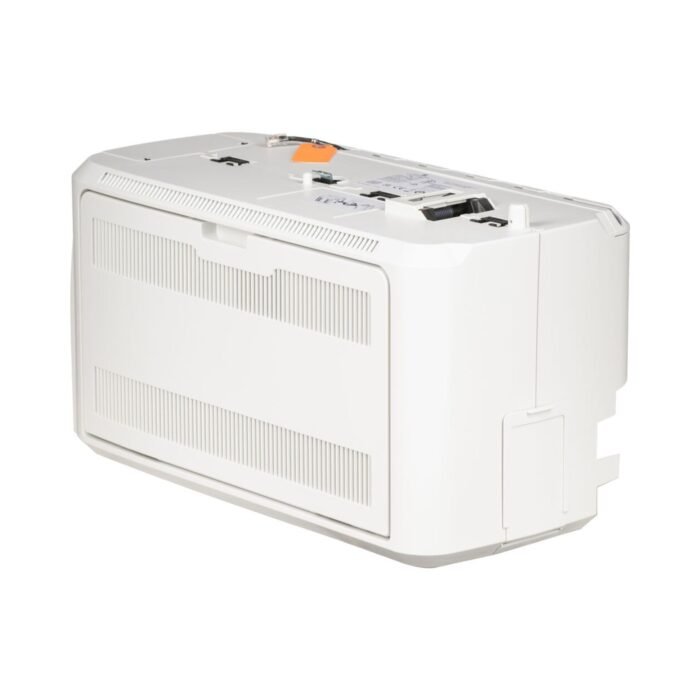

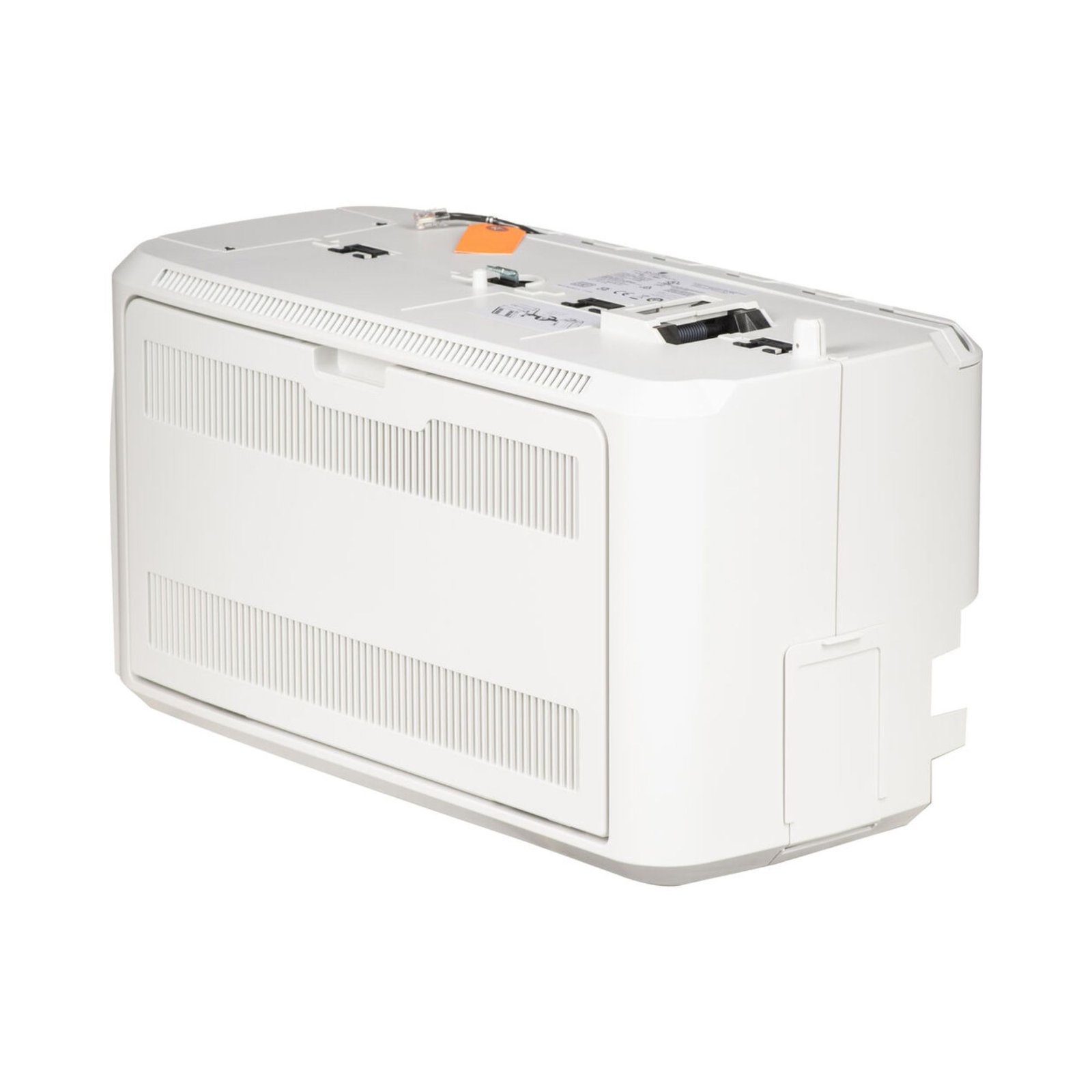

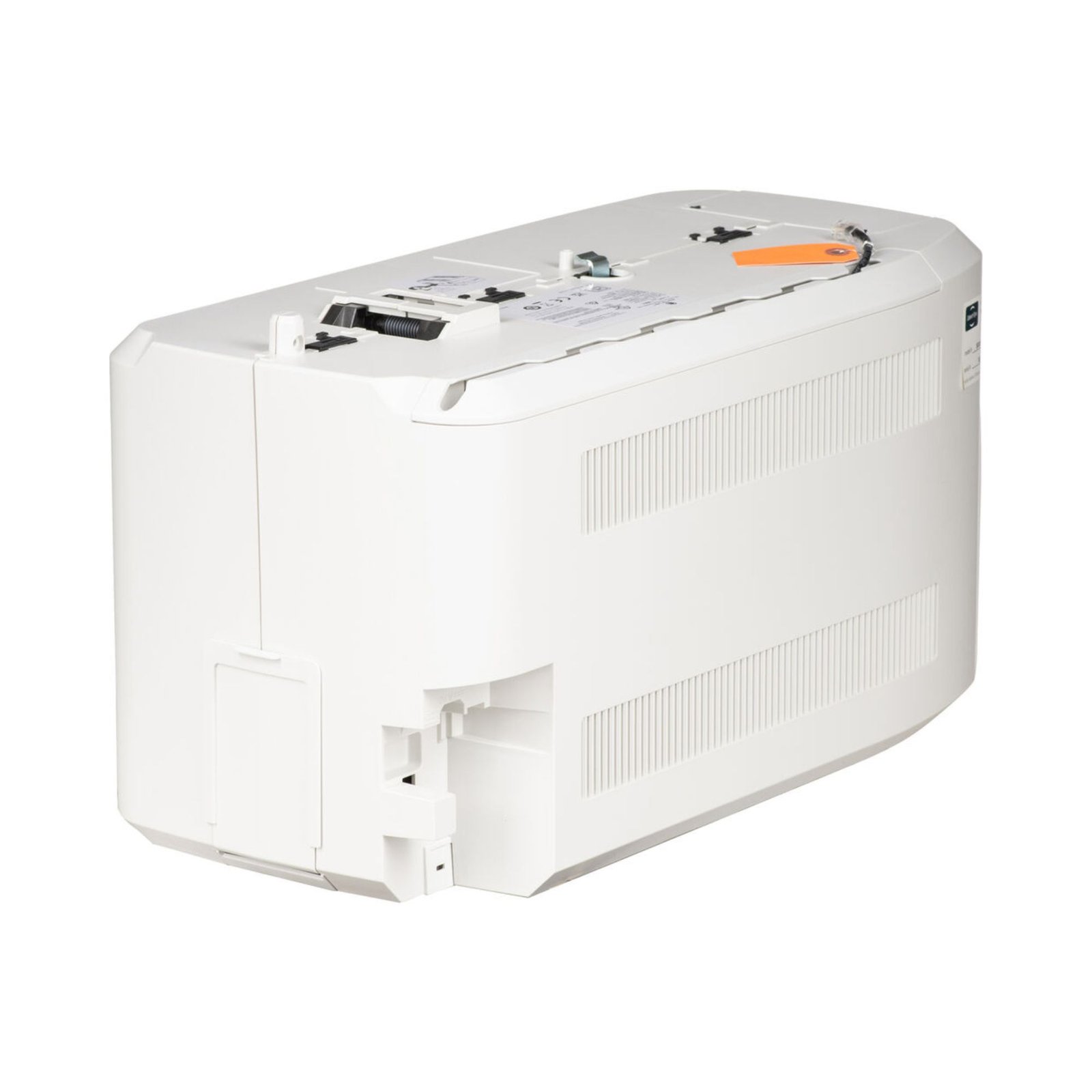

Entrust Sigma DS2 LAMINATION duplex card printer
Price range: 1.973,46 € through 3.041,75 € ex. VAT
Entrust Sigma DS2 LAMINATION card printer, duplex, 300 dpi, USB and Ethernet, with laminating mode. 36 months warranty.
Entrust Sigma DS2 LAMINATION duplex card printer
The Entrust Sigma DS2 LAMINATION is a Direct-to-Card card printer with lamination, designed for organizations that require high-security ID cards. The model is intended for issuing cards in corporate, institutional, educational and administrative environments, where visual personalization needs to be complemented by additional lamination protection. The Sigma platform is designed for modern environments and secure, scalable and easy-to-manage issuance workflows.
The data sheet confirms the dye-sublimation / resin thermal transfer printing technology, single or dual-sided capability and 300 dpi resolution. For printing and laminating, the Sigma DS2 LAMINATION achieves up to 200 cards per hour for YMCK on the front with front lamination and up to 175 cards per hour for YMCK-K on the front, K on the back and front lamination. In monochrome mode, the Sigma platform in this range offers up to 880 cards per hour single-sided, and for color printing speeds of up to 225 cards per hour single-sided and up to 140 cards per hour double-sided are indicated.
The printer is equipped with an input hopper for 125 cards, an output hopper for 25 cards and a reject hopper for 10 cards. Standard connectivity is via USB and Ethernet, and WiFi, magnetic stripe encoding and smart card encoding are available as options. The documentation also mentions support for clear or holo topcoat, respectively DuraGard holo, clear or holo laminates, which makes this model suitable for access cards, employee ID cards, student cards and other credentials that require increased durability and protection against manipulation.
In terms of security, the Sigma range includes secure boot, encryption of the connection and data between the software and the printer, and the fact that customer data is not stored on the device after printing. The platform allows the issuance of physical and mobile flashpass cards, can be implemented on-premises or cloud-hosted and offers support for printing from iOS, Android and Windows mobile devices. Sigma DS2 LAMINATION has a 36-month warranty and is a suitable solution for identification programs that emphasize security, resilience and operational flexibility.
- Direct-to-Card card printer with lamination module
- Single or dual-sided printing
- Resolution 300 dpi
- USB and Ethernet connectivity
- Input hopper 125 cards, output hopper 25 cards, reject hopper 10 cards
- Options for WiFi, magnetic stripe encoding and smart card encoding
- Support for clear or holo overlays and DuraGard laminates
- 36 month warranty
| Specification | Detail |
|---|---|
| Brandi | Entrust |
| Exemplary | Sigma DS2 LAMINATION |
| Product type | Direct-to-Card card printer with lamination module |
| Printing technology | Dye-sublimation / resin thermal transfer |
| Printing capability | Single or dual-sided |
| Resolution | 300 dpi (300 x 600, 300 x 1200) |
| Printing and laminating speed | Up to 200 cph YMCK front + front lamination; up to 175 cph YMCK-K front, K back + front lamination |
| Monochrome print speed | Up to 880 cards/hour single-sided |
| Color print speed | Up to 225 cph single-sided; up to 140 cph double-sided |
| Card capacity | Input hopper 125 cards; output hopper 25 cards; reject hopper 10 cards |
| Card dimensions | ID-1, CR-79, CR-80; thickness 0.010 – 0.040 inch (0.25 – 1.016 mm) |
| Connectivity | USB and Ethernet |
| choice | WiFi, magnetic stripe encoding, smart card encoding |
| Lamination consumables | Clear or holo topcoat 1,000 images; DuraGard holo laminate 350 images; DuraGard clear or holo laminate 300 images |
| Equipment dimensions | 60.4 x 27 x 51.9 cm |
| Weight | 13.62 kg |
| Guarantee | 36 months |
