Elo 90-Series Outdoor Open Frame Touchscreen Monitors
Price range: 860,00 € through 1.528,00 € ex. VAT
Elo 90-Series Outdoor Open Frame Touchscreen Monitors – direct sunlight performance, IK09/IK10 resistance, and 24/7 outdoor operation.
Elo 90-Series Outdoor Open Frame Touchscreen Monitors
Professional Solutions for Outdoor Environments, 24/7
The Elo 90-Series Outdoor series brings industrial technology to public spaces. These open-frame monitors are designed for outdoor use in extreme conditions of temperature, light and humidity, providing a precise tactile experience and impeccable visibility, even in direct sunlight.
With IK09/IK10 mechanical protection, up to 1500 cd/m² brightness and automatic temperature control, the Elo 90-Series range is the perfect choice for outdoor kiosks, charging stations, payment machines or information terminals.
⚙️ Technical specifications
| Feature | 10” Elo 1099L E354792 | 27” Elo 2799L E399052 |
|---|---|---|
| Touch Technology | TouchPro® PCAP (Projected Capacitive) | TouchPro® PCAP (Projected Capacitive) |
| Screen Size | 10.1” / 25.7 cm | 27” / 68.6 cm |
| Native Resolution | 1280×800 (16:10) | 1920×1080 (Full HD, 16:9) |
| Brightness (with touch) | 1000 cd/m² | 1320 cd/m² |
| Contrast | 800:1 | 1000:1 |
| Response Time | 25ms | |
| Viewing angle (H/V) | 85°/170° | 89°/178° |
| Mechanical protection | IK09 | IK10 |
| Operating temperature | -20°C ~ +60°C | -20°C ~ +60°C |
| Mounting | VESA 75×75 mm | VESA 200×100 mm |
| Video Interfaces | HDMI, VGA, DisplayPort | HDMI, VGA, DisplayPort |
| Touch interface | USB Type-B | USB Type-B / RS232 (via VGA) |
| Power Supply | 12V-24V DC | 12V-24V DC |
| Power Consumption | 23 W | 70 W |
| Weight (Net) | 1.67 kg | 13.6 kg |
| Certifications | CE, UL, FCC, UKCA, TUV, RCM, WEEE, RoHS | CE, UL, FCC, UKCA, TUV, EAC, WEEE, RoHS |
| Installation included | Bracket & wall mounting kit | Bracket & wall mount kit |
| Lifetime (MTBF) | 50,000 hours | 50,000 hours |
🔆 Exceptional clarity in direct sunlight
The Elo 90-Series Outdoor monitors feature optically bonded screens and anti-glare coating, providing perfect readability in sunlight and full visibility even with polarized sunglasses.
👉 Optically Bonded Technology eliminates internal reflections and maximizes light transmission for a clear image and high contrast.
🌡️ Intelligent Temperature Control
Each monitor features ambient temperature and light sensors, plus automated ventilation systems (internal and external fans).
Thus, the display automatically adjusts its brightness and cooling, maintaining stable performance between -20°C and +60°C, even in extreme weather conditions.
🧱 Industrial construction, IK09/IK10 protection
The metal housing and impact-resistant front glass provide IK09 protection for the 1099L and IK10 for the 2799L, making them ideal for use in public or vandal-prone environments.
These monitors comply with UL, CE, TUV, FCC, UKCA safety standards, and are designed for 24/7 continuous operation.
🔌 Comprehensive and reliable connectivity
The series includes HDMI, DisplayPort, VGA and USB Type-B ports, with locking connectors for safety in outdoor installations.
Supports 12–24V DC power supply, offering maximum flexibility for integration into kiosks, industrial panels or outdoor terminals.
🧩 Recommended applications

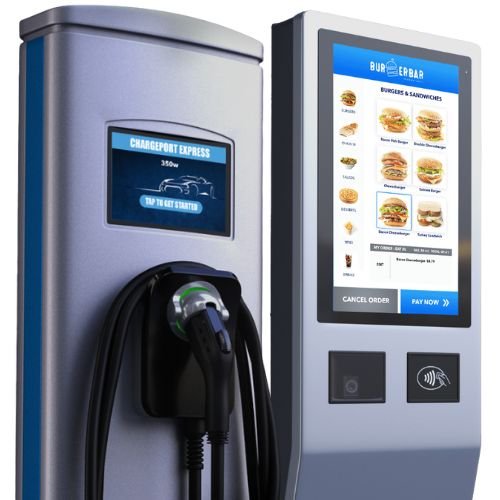

- 🔋 Electric vehicle charging stations (EV charging)

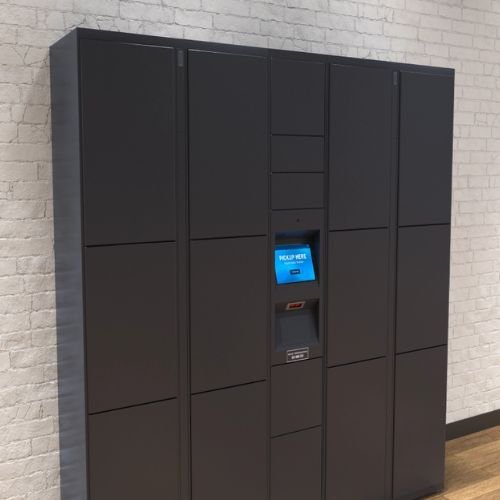

- 🎫 Ticket, payment or parking machines

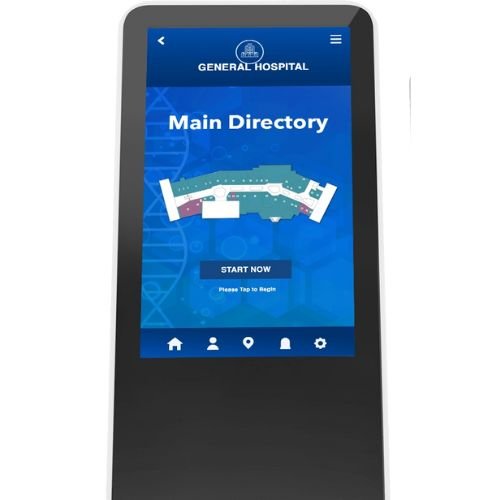

- 🏪 Outdoor kiosks and info points
- 🏭 Industrial applications and HMI exposed to the environment
- 🧭 Navigation and public guidance systems
- 🩺 Outdoor medical equipment
💡 Benefits key
- 🌞 Perfect visibility in direct sunlight (1000–1500 nits)
- 🧊 Resistance to extreme temperatures (-20°C … +60°C)
- 🧱 Robust housing, anti-vandal glass (IK09/IK10)
- 🔄 Flexible mounting – landscape, portrait, flat
- 🔌 Full connectivity: HDMI, DisplayPort, USB, VGA
- ⚙️ Light sensor and automatic temperature control
- 🔋 DC 12–24V power supply – ideal for integrated equipment
- 🕒 24/7 Continuous Operation – MTBF 50,000 Hours
🧰 Package Includes
- Elo 1099L or 2799L
- HDMI Cable
- VGA Cable
- USB Cable (Touch)
- Mounting Bracket / Wall Kit
- OSD Remote Control
- Quick Start Guide
Monitor
👉 Power cord and DC adapter are ordered separately.
The Elo 90-Series Outdoor Open Frame series offers a combination of advanced technology, durability and visual performance for outdoor use.
With exceptional sunlight visibility, anti-vandalism protection and 24/7 reliability, these monitors are ideal for mission-critical applications that require robust and precise touch interfaces.
