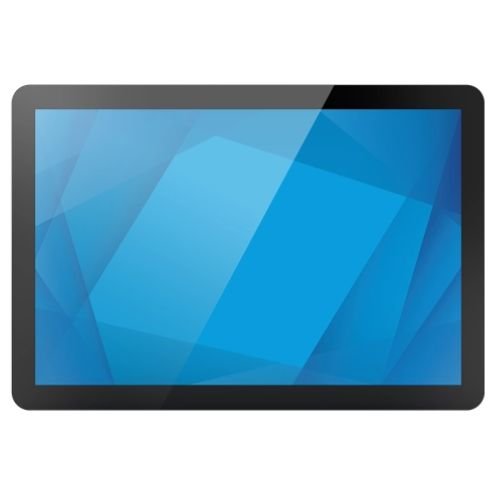

Monitor Open Frame Touchscreen 10-inch Outdoor Elo 1099L E354792
1.040,60 € incl. VAT
Elo 1099L E354792 – touch monitor (open-frame, 16:9), screen size: 25.7 cm (10.1”), projected capacitive, multi-touch, 1280×800 pixels, VESA support, response time: 25ms, brightness 1000cd, viewing angle 178/178°(H/V), contrast: 800:1, anti-glare, USB (type B), VGA, display-port, HDMI, incl.: cable (USB, VGA, HDMI), wall mounting kit, QSG, must be ordered separately: power cable, power supply, color: black
Elo 1099L 10-inch Outdoor Open Frame Touchscreen Monitor E354792
Designed for outdoor performance – bright, accurate and reliable 24/7
The Elo 1099L is a professional 10-inch open-frame monitor designed for outdoor use in harsh conditions. With a 1000 nits optically bonded screen, this model offers perfect visibility in direct sunlight, a precise touch experience and IK09 resistant construction, ideal for kiosks, payment stations, terminals and outdoor industrial applications.
⚙️ Technical Specifications
| Specification | Technical Details |
|---|---|
| Model | Elo 1099L (E354792) |
| Screen Type | Open-frame Touchscreen Outdoor |
| Touch Technology | TouchPro® PCAP (Projected Capacitive) – multi-touch (5 points) |
| Diagonal size | 10.1” / 25.7 cm |
| Native resolution | 1280 × 800 pixels (16:10) |
| Brightness (with touch) | 1000 cd/m² |
| Contrast | 800:1 |
| Response Time | 25 ms |
| Viewing Angle (H/V) | 85° / 170° |
| Surface | Anti-Glare (anti-reflective) |
| Protection mechanical | IK09 (impact resistant) |
| Operating temperature | -20°C to +60°C |
| Mounting | VESA 75 × 75 mm + flush mount options |
| Video interfaces | HDMI, VGA, DisplayPort |
| Touch interface | USB Type-B (lockable) |
| Power supply | 12V DC ± 5% (optional power brick 100–240V AC) |
| Power consumption | 23 W |
| Dimensions (L×H×A) | 256 × 176 × 41 mm |
| Weight | 1.67 kg (without packaging) |
| Certifications | CE, UL, FCC, UKCA, TUV, RCM, RoHS, WEEE |
| Lifetime (MTBF) | 50,000 hours |
| Color | Black |
| Package included | USB cable, HDMI, VGA, wall mount kit, OSD Remote, QSG |
| Accessories optional | Power cable, DC adapter |
🌞 Excellent visibility in direct sunlight
Thanks to the optically bonded panel and anti-glare coating, the Elo 1099L monitor offers a clear and glare-free image even in bright light conditions.
The impressive 1000 nits brightness ensures perfect readability, and wide-view technology (178°/178°) guarantees consistent colors from any viewing angle.
👉 Visible even with polarized sunglasses – ideal for outdoors.
🌡️ Resistant to extreme temperatures and impacts
Designed for demanding environments, the Elo 1099L operates in the -20°C to +60°C range, with IK09 mechanical protection against shock and vandalism.
Equipped with an ambient light sensor and automatic temperature control, the monitor adjusts its brightness to save energy and extend the life of the panel.
🔌 Comprehensive and secure connectivity
The Elo 1099L offers HDMI, VGA, DisplayPort and USB Type-B ports (with lockable connectors), ensuring universal compatibility and secure connectivity in industrial or public applications.
The monitor can be powered by 12V–24V DC (or optional AC 100–240V adapter), providing installation flexibility.
🧩 Easy mounting and integration
The compact open-frame design and VESA / flush mount options allow installation in almost any type of housing or kiosk.
The monitor can be mounted landscape, portrait or flat, providing complete freedom of integration into custom projects.
🧱 Recommended applications
- 🔋 EV Charging Stations
- 🎫 Payment, ticketing or parking machines
- 🏪 Outdoor self-service kiosks and terminals
- 🏭 Industrial HMI systems exposed to the environment
- 🚏 Information points and public signs
- 🩺 Outdoor medical applications
💡 Key benefits
- 🌞 1000 nits brightness – visible in direct sunlight
- 🧊 IK09 resistance and operation between -20°C and +60°C
- 🧠 Light sensor and automatic temperature control
- 🔌 Full connectivity (USB, HDMI, VGA, DisplayPort)
- ⚙️ Flexible mounting – open-frame or wall (VESA 75×75)
- 🕒 24/7 operation – 50,000 hours lifespan
- 🌍 Compatible with Windows, Android and Linux
📦 What’s in the package
- Monitor Elo 1099L
- USB cable (touch)
- HDMI cable
- VGA cable
- OSD remote control
- Mounting kit (flush / wall)
- Quick Installation Guide (QSG)
👉 Adapter and power cord are ordered separately separately.
Elo 1099L 10″ Outdoor Open Frame Touchscreen is the ideal solution for professional outdoor touch installations.
The combination of high brightness (1000 nits), IK09 protection, 24/7 operation and compact industrial design makes it a reliable display for payment stations, self-service terminals, information panels and outdoor HMI applications.
It is a robust, intelligent display that is ready for any environment – no matter the sun, cold or rain.
