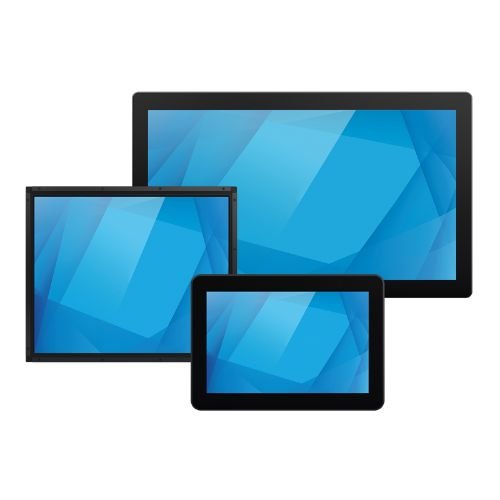

Elo 90-Series Open Frame Touchscreen Monitors
Price range: 344,00 € through 1.291,00 € ex. VAT
Elo 90-Series Open Frame Touchscreen Monitors – industrial performance, PCAP & IntelliTouch technology, 24/7 operation and perfect design for integration.
Elo 90-Series Open Frame Touchscreen Monitors
Industrial Performance, Modular Design, and Exceptional Touch Accuracy
The Elo 90-Series is the professional standard in open-frame touchscreen monitors, delivering accuracy, reliability, and integration flexibility for commercial, industrial, and medical applications.
Available in sizes from 10” to 42.5”, the range includes advanced TouchPro® PCAP, IntelliTouch®, AccuTouch®, and SecureTouch® touch technologies, all optimized for 24/7 continuous operation.
⚙️ General Specifications
| Feature | Elo 90-Series |
|---|---|
| Available Sizes | 10.1″, 12″, 15″, 17″, 19″, 19.5″, 21.5″, 23.8″, 27″, 31.5″, 42.5″ |
| Maximum Resolution | Up to Full HD (1920×1080) |
| Touch technologies | TouchPro® PCAP, IntelliTouch®, IntelliTouch Plus®, AccuTouch®, SecureTouch® |
| Number of touch points | 2–10 simultaneous points (depending on technology) |
| Aspect ratio | 4:3, 5:4, 16:9 and 16:10 |
| Typical brightness | 200–540 cd/m² |
| Contrast | 700:1 – 4000:1 |
| Viewing Angle (H/V) | Up to 178°/178° |
| Connectivity | HDMI, DisplayPort, VGA, USB (Type B), RS232 (optional) |
| Mounting | VESA (75×75 mm – 400×400 mm), flush mount, rack mount |
| Housing color | Black (standard) |
| Lifetime (MTBF) | 50,000 hours |
| Certifications | CE, UL, FCC, TUV, UKCA, RoHS, WEEE |
| Operating temperature | 0°C – 40°C (indoor, 24/7) |
💡 Available touch technologies
| Technology | Type | Key features |
|---|---|---|
| TouchPro® PCAP | Projected Capacitive | Multi-touch (up to 10 points), high precision, durability and resistance to dust/liquids |
| IntelliTouch® / IntelliTouch Plus® | SAW (Surface Acoustic Wave) | Clear image, durability, support for 2–3 touch points |
| AccuTouch® | Resistive (5-wire) | Maximum compatibility, usable with gloves, pen or solid objects |
| SecureTouch® | SAW vandal-resistant | Enhanced protection against vandalism and scratches, ideal for applications public |
🧠 Modular design, ready for any integration

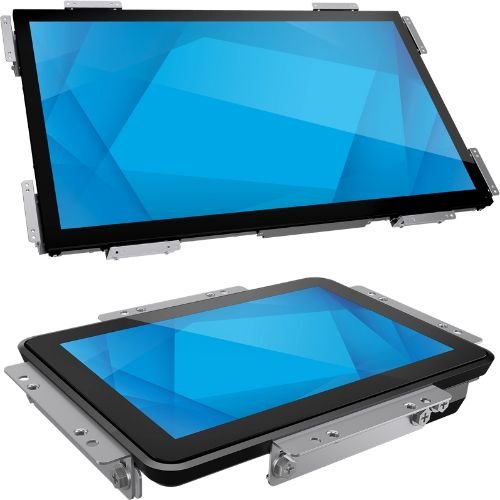

Each Elo 90-Series monitor is designed in a compact open-frame format, ideal for:
- Interactive kiosks (POS, self-service, info-point)
- Medical equipment
- Industrial HMI and automation systems
- Gaming and simulators
- Retail digital signage and integrated payment solutions
The durable metal housing and standardized VESA mount allow for quick mounting in almost any type equipment.
🔌 Universal Connectivity
The monitors include modern and reliable interfaces:
- HDMI – for high-quality digital connection
- DisplayPort – for professional compatibility
- VGA – for legacy systems
- USB (Type-B) – for touch interface
- RS232 (optional) – for industrial integration and advanced control
🔄 Durability and 24/7 operation
The Elo 90-Series is built for continuous operation, with industrially certified panels for 50,000 hours of operation.
All models benefit from impact, vibration and thermal stability testing, ensuring consistent performance in professional environments.
📏 Available models
| Size | Model | Touch technology | Resolution | Brightness | Contrast | Mounting | Interfaces main |
|---|---|---|---|---|---|---|---|
| 10.1” | 1093L E321195 | PCAP | 1280×800 | 315 cd/m² | 800:1 | VESA 75×75 | HDMI, DP, VGA, USB |
| 12” | 1291L (IntelliTouch / PCAP) | SAW / PCAP | 800×600 | 250 cd/m² | 1500:1 | VESA | HDMI, DP, VGA, USB |
| 15” | 1590L / 1594L | SAW / PCAP | 1024×768 / 1920×1080 | 315–500 cd/m² | 700–800:1 | VESA | HDMI, DP, VGA, USB |
| 17” | 1790L | SAW / PCAP | 1280×1024 | 250 cd/m² | 800:1 | VESA 100×100 | HDMI, DP, VGA, USB |
| 19” | 1990L / 1991L | SAW / PCAP | 1280×1024 | 250–500 cd/m² | 1000:1 | VESA | HDMI, DP, VGA, USB |
| 19.5” | 2094L | IntelliTouch / PCAP | 1920×1080 | 300 cd/m² | 3000:1 | VESA | HDMI, DP, VGA, USB |
| 21.5” | 2294L / 2295L | IntelliTouch / PCAP | 1920×1080 | 360 cd/m² | 1000:1 | VESA | HDMI, DP, VGA, USB |
| 23.8” | 2494L / 2495L | IntelliTouch / PCAP | 1920×1080 | 225–540 cd/m² | 3000:1 | VESA | HDMI, DP, VGA, USB |
| 27” | 2794L | IntelliTouch / PCAP | 1920×1080 | 270 cd/m² | 3000:1 | VESA | HDMI, DP, VGA, USB |
| 31.5” | 3263L | PCAP | 1920×1080 | 400 cd/m² | 3000:1 | VESA 400×200 | HDMI, VGA, USB |
| 42.5” | 4363L | PCAP | 1920×1080 | 450 cd/m² | 4000:1 | VESA 400×400 | HDMI, VGA, USB |
🧩 Key Benefits
- 🔹 Full range 10–42” with advanced touch technology
- 🔹 Multi-platform compatibility: Windows, Linux, Android
- 🔹 Precision touch and fast response time
- 🔹 Durable metal housing for industrial applications
- 🔹 Brightness adapted for indoor and semi-outdoor
- 🔹 Frameless design (zero-bezel) for elegant integration
- 🔹 Flexible mounting: VESA / flush mount / rack mount
🧰 Package contents
- Elo monitor (chosen model)
- HDMI cable
- VGA cable
- USB cable (touch)
- Quick Start Guide
- Mounting brackets (where applicable)
👉 Power adapter and AC cable must be ordered separately.
Elo 90-Series Open Frame Touchscreen combines industrial durability with modern touch precision.
Regardless of the application – retail, automation, gaming, HMI or medical solutions – this series offers reliability, performance and versatility in every dimension.
With a modular design, precise multi-touch technology and universal compatibility, Elo 90-Series remains the reference choice for integrators looking for professional touch solutions.
