Zebra TC501 Android Rugged Mobile Terminal with Wi-Fi 7, 5G and UHF RFID

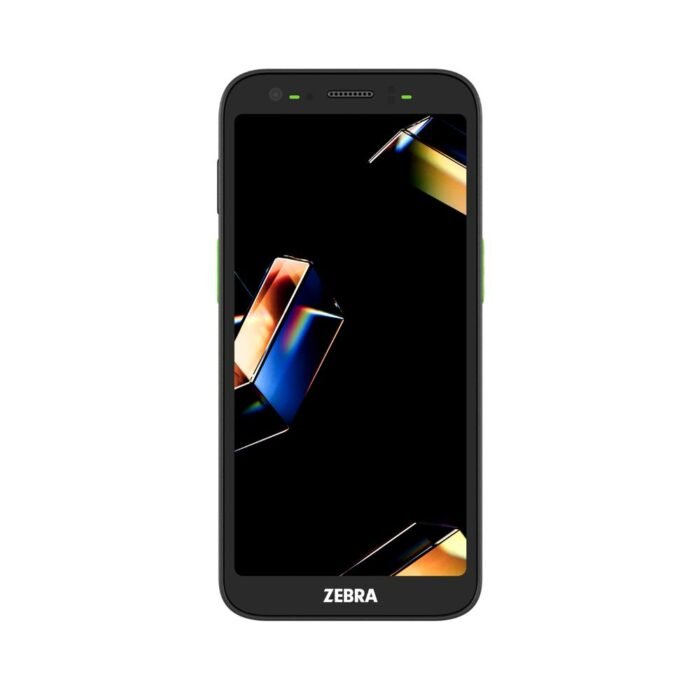

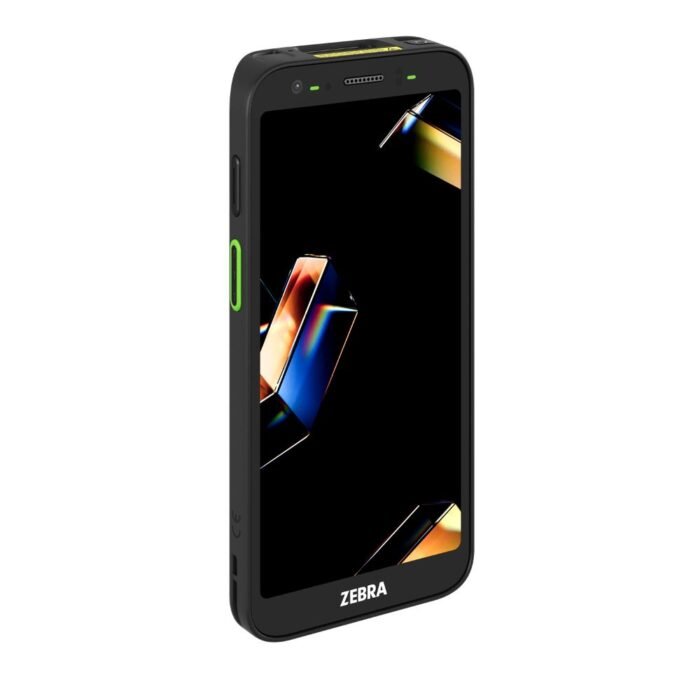

Zebra TC501 – rugged mobile terminal for modern frontline teams

The Zebra TC501 is a rugged Android mobile terminal built for the next generation of enterprise applications powered by AI, rapid mobility and intelligent data capture. Designed for retail, field service, courier, postal operations and logistics workflows, the TC501 combines the performance of an advanced mobile platform with the durability needed for daily use in demanding environments.

With a Qualcomm Dragonwing Q-6690 processor, up to 12 GB of RAM and 256 GB of internal storage, the Zebra TC501 delivers the power needed for complex applications, local processing, intensive scanning, vision recognition, inventory management and AI-assisted digital workflows. It is a suitable choice for companies that want a mobile terminal ready not only for today’s requirements, but also for the next years of technological development.

High performance for AI and enterprise applications

• Qualcomm Dragonwing Q-6690 processor, with high performance for advanced mobile applications
• Configurations with 8 GB RAM / 128 GB Flash or 12 GB RAM / 256 GB Flash
• MicroSD slot with support for up to 2TB for storage expansion
• Android operating system, suitable for enterprise applications, EMM and Zebra DNA solutions
• Support for on-device and cloud AI applications through the Zebra Frontline AI Suite ecosystem

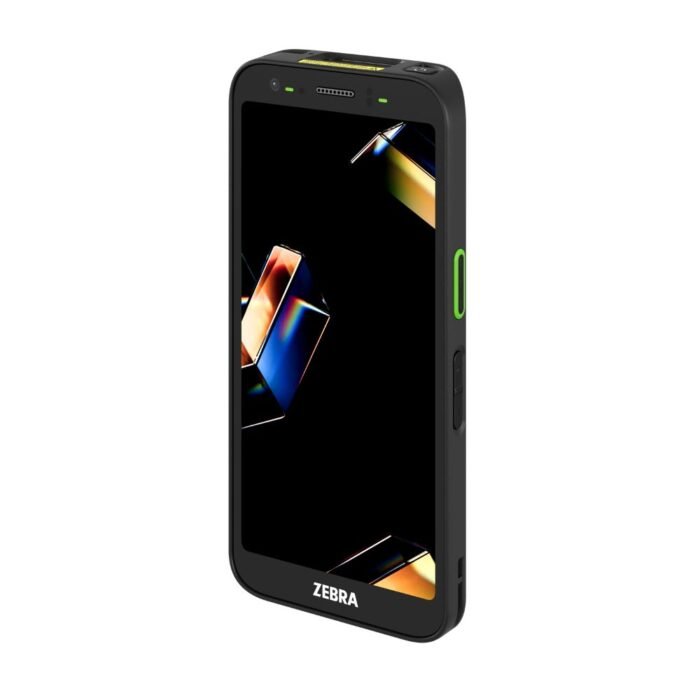

6-inch AMOLED screen, clear in any conditions

The Zebra TC501 features a 6-inch FHD+ AMOLED display with up to 1500 nits of brightness, adaptive refresh rate, and Gorilla Glass Victus protection. The display is easy to read in warehouses, stores, outdoors, or in brightly lit spaces, and the generous surface area helps users see more information at a glance.

Fast connectivity: Wi-Fi 7, 5G and Bluetooth 6

The TC501 is designed for next-generation enterprise connectivity. LAN models offer tri-band Wi-Fi 7 for fast, stable networking, while WAN variants add 5G Release 17 connectivity for mobile teams, couriers, field technicians, and operations that depend on always-on data access.

• Wi-Fi 7 for superior speed, capacity, and stability in enterprise networks
• 5G on WAN variants, including support for private networks and global coverage
• Bluetooth 6 for peripherals, headsets and efficient wireless communications
• NFC for contactless applications, identification, services and mobile transactions

1D/2D scanning, 50 MP camera and integrated UHF RFID

The Zebra TC501 offers multiple advanced data capture options, suitable for barcode scanning, inventory, item tracking, product verification, photo documentation and visual AI applications. Depending on the configuration, the terminal can be equipped with SR500, SR560 or AC670 Advanced Range Color scanners.

• SR500, SR560 or AC670 1D/2D scanners for moderate to intensive scanning applications
• AC670 Advanced Range Color for remote scanning and color image capture
• 50 MP main camera for detailed images and visual input for AI applications
• 13 MP ultra-wide camera option for shelf management and shelf verification applications
• Time-of-Flight sensor available on select configurations for 3D and dimensioning applications

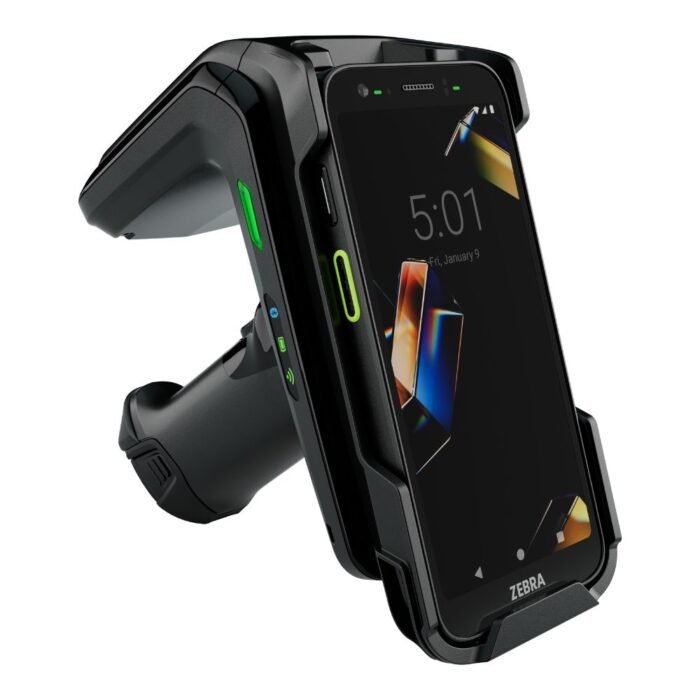

• Integrated short-range UHF RFID, reading over 200 tags per second up to 2 m

Built for heavy use

The Zebra TC501 is the most rugged model in the TC5 family yet. The terminal can withstand drops of up to 2.4 m onto concrete at room temperature and up to 2.7 m with a protective boot. IP65 and IP68 certifications provide protection against dust and water, and the rugged construction makes it suitable for long shifts, daily use and dynamic operational environments.

• IP65 and IP68 protection
• Drop resistance according to MIL-STD-810H
• Operation between -20°C and +50°C
• Standard 5000 mAh or extended 7240 mAh battery
• Hot swap for battery replacement without stopping work
• Fast charging from 0 to 70% in approximately 45 minutes, with compatible options

Recommended apps

• Retail: price checking, inventory, replenishment, mobile POS, assisted selling
• Retail management: planograms, promotions, merchandising, task management
• Field service: asset management, spare parts, appointments, mobile billing
• Courier and mail: proof of delivery, tracking services, parcel scanning, photo documentation
• Warehouse and logistics: inventory, item location, RFID, sizing and flow verification

Zebra DNA and enterprise security

The TC501 benefits from the Zebra DNA ecosystem, with tools to configure, secure, manage and optimize throughout the device lifecycle. Security is enhanced with Android Strongbox, Secure Element, Secure Boot, Verified Boot and LifeGuard for Android updates available through Zebra OneCare contracts.

With AutoID, companies can choose the Zebra TC501 configuration that’s right for their application: 5G LAN or WAN, SR500, SR560 or AC670 scanner, 8/128 GB or 12/256 GB memory, standard, extended or wireless battery, plus Zebra OneCare accessories and services for investment protection.
