Zebra SP20 Fixed 2D Reader Kit SP2002-SR4UR700SGW
181,68 € incl. VAT
Zebra SP20 SP2002-SR4UR700SGW fixed 2D reader kit with 1MP imager, black stand with adjustable support and 7′ USB cable CBL-U20755-01, fast scanning of 1D/2D codes for retail POS and self-checkout.

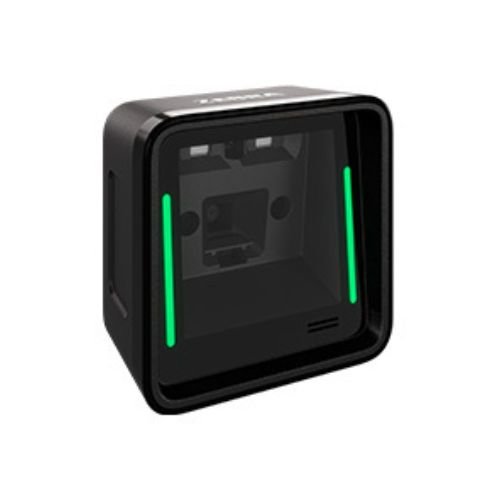

Zebra SP20 SP2002-SR4UR700SGW Fixed 2D Reader Kit
The Zebra SP20 SP2002-SR4UR700SGW kit is a complete POS package, consisting of the SP20 fixed 2D reader with stand and 7’ USB cable with 90° plug (CBL-U20755-01). It is ideal for retail stores, QSRs, gas stations and self-checkout, where you need fast, reliable scanning and a device that fits easily into small spaces.
The SP20 scanner uses a 1 Megapixel (1280 x 800) 2D imager, with a wide field of view (62° H x 41° V), deep red LED illumination and advanced algorithms for reading 1D/2D codes, including GS1 Digital Link and phone coupons.

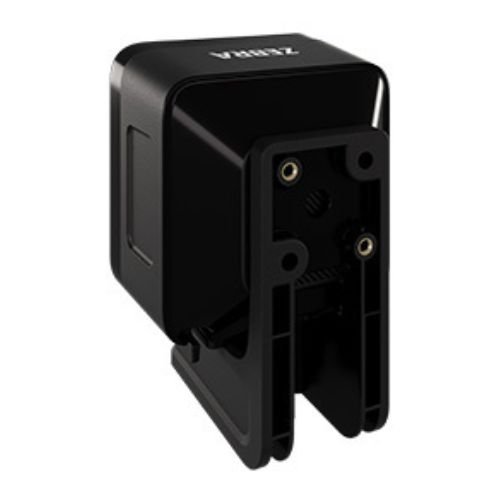

With an adjustable stand mount and a USB cable with a right-angle plug, the kit is ready to use as soon as you connect it to the POS – without additional accessories.
Main advantages of the SP2002-SR4UR700SGW kit
- Complete kit: black SP20 scanner, stand and 7’ USB cable CBL-U20755-01 with 90° plug – ideal for cash registers and compact POS systems.
- High-performance 2D scanning: 1MP imager, large field of view, fast reading of 1D/2D codes, including damaged or poorly printed codes.
- GS1 Digital Link compatible: ready for modern 2D code labels, for additional data (batch, expiration, traceability).
- Compact design, with adjustable stand: fits on crowded counters and allows optimal positioning towards the customer.
- Robust and reliable: IP52 protection, withstands multiple falls from 1.5 m – built for heavy-duty use at the checkout.
- Simple connectivity: USB (HID/CDC) for quick integration with most modern POS and cash registers.
Zebra SP20 SP2002-SR4UR700SGW kit specifications
| Feature | Value |
|---|---|
| Scanner model | Zebra SP20 Series Single-Plane Scanner (SP2002-SR) |
| Kit type | SP2002-SR4UR700SGW – black SP20 scanner with stand + USB cable CBL-U20755-01 7’ with 90° plug |
| Scanning technology | 2D imager, 1 Megapixel (1280 x 800 pixels) |
| Field of view (FOV) | 62° horizontal x 41° vertical vertical (nominal) |
| Illumination | 2 x deep red LED, user-friendly |
| Minimum print contrast | 20% minimum reflective difference |
| Angular tolerances | Skew ±70°, pitch ±60°, roll 0°–360° |
| 1D symbologies | All major 1D codes: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI, UPC/EAN, Interleaved 2 of 5, GS1 DataBar, Base 32 (Italian Pharma) etc. |
| 2D Symbologies | QR, Micro QR, DataMatrix, GS1 Digital Link, PDF417, MicroPDF417, Aztec, MaxiCode, Han Xin, postal codes, SecurPharm etc. |
| Digimarc Support | Yes – read Digimarc codes |
| Minimum Element Resolution | Code 39: 3 mil; Code 128: 3 mil; DataMatrix: 5 mil; QR: 5 mil |
| Reading distance (examples) | 3 mil Code 39: 1.8 – 6.4 cm 13 mil UPC: 0 – 25.4 cm 20 mil Code 39: 0 – 40.6 cm |
| Scanner dimensions | 3.0 x 3.0 x 2.2 in (75 x 75 x 57 mm) |
| Dimensions with stand | 5.5 x 3.1 x 3.1 in (140 x 80 x 80 mm) |
| Scanner weight | approx. 110 g |
| Weight with stand | approx. 218 g |
| Power supply voltage | 4.75 – 5.25 VDC (USB or external source) |
| Operating current (5 V) | Presentation: ~280 mA; Host trigger: ~260 mA |
| Idle current (5 V) | Presentation: ~110 mA; Host trigger: ~80 mA |
| Color | Midnight Black |
| Host interfaces | USB, RS232 (TTL) |
| Keyboard layout support | Over 90 international layouts |
| User indicators | LEDs for power, active scan area and read confirmation; beeper |
| Operating temperature | 0°C – 50°C |
| Storage Temperature | -40°C – 70°C |
| Humidity | 5% – 95% RH, non-condensing |
| Protection rating | IP52 (dust and splash protection) |
| Drop resistance | Designed for multiple drops from 1.5 m onto concrete |
| ESD immunity | ±15 kV air, ±10 kV direct contact, ±8 kV indirect (EN61000-4-2) |
| Ambient light tolerance | 0 – 108,000 lux (sun); < 4,845 lux (indoor artificial light) |
| Mounting and accessories included | SP20 adjustable stand; USB cable CBL-U20755-01 7’ with 90° plug |
| Optional accessories | Flange Bracket, L-Bracket, 1/4″-20 camera mount accessories, RS232 cables |
| Software tools | Zebra Simple Setup Experience, 123Scan, Scanner SDK, Scanner Management Service (SMS), Zebra DNA |
| Warranty | 3 years, as per Zebra standard policy |
