Zebra RFD40-M Premium Plus UHF RFID sled with 1D/2D scanner
1.724,45 € ex. VAT
Zebra RFD40-M Premium Plus UHF RFID sled with 24 m range, 1,300+ tags/sec, Wi-Fi 6, Bluetooth 5.3, NFC, SE4100 scanner and 7,000 mAh battery.

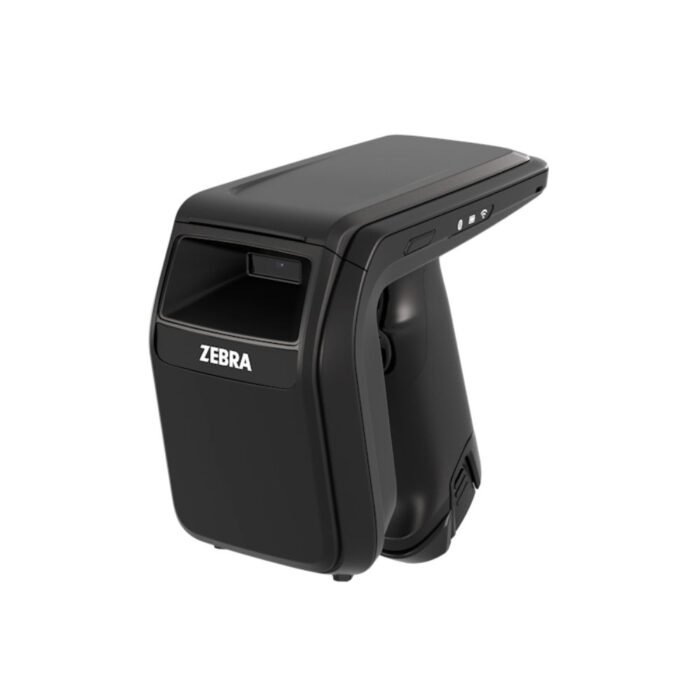

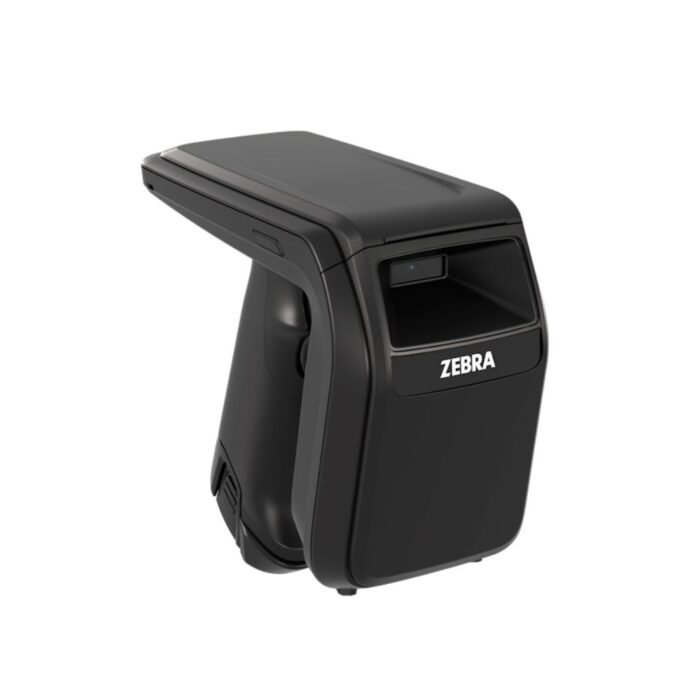

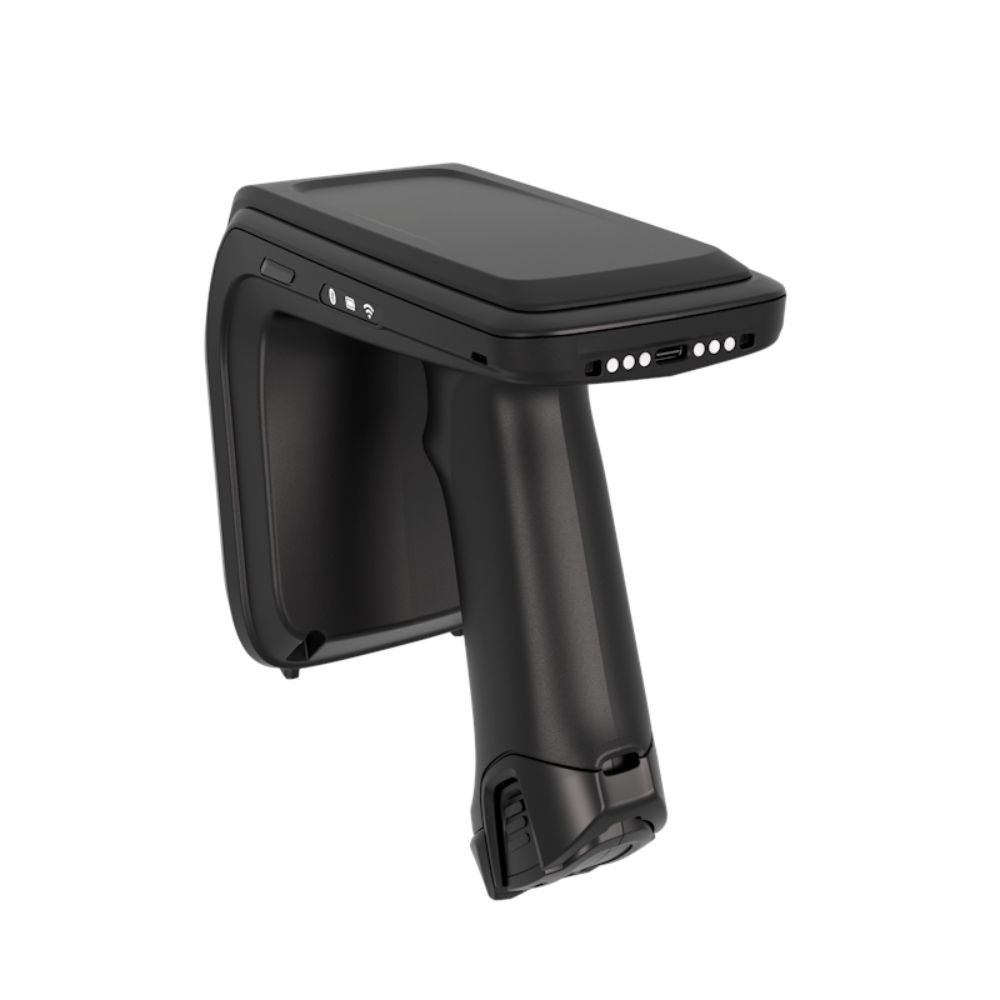

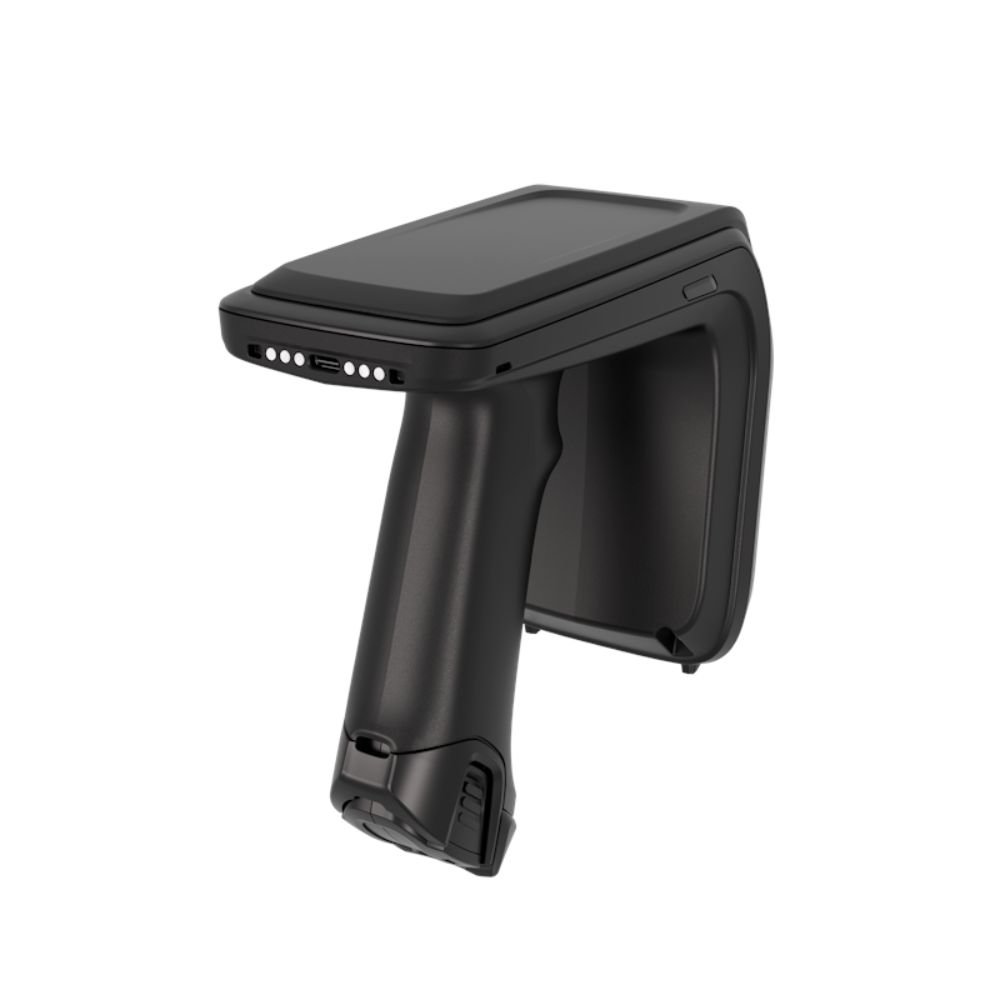

RFID Zebra RFD40-M Premium Plus sled
The Zebra RFD40-M Premium Plus is an enterprise UHF RFID sled designed for rapid inventory, item tracking and mobile workflows in retail, hospitality and healthcare. The model offers extended RFID reading up to 24 m , speed of over 1,300 tags/second , integrated 1D/2D scanner, Wi-Fi 6 for OTA management, Bluetooth 5.3, NFC tap-to-pair and a 7,000 mAh PowerPrecision+ battery.
Main advantages
- Fast UHF RFID reading: over 1,300 tags/second.
- Maximum reading range: up to 80 ft / 24 m.
- Zebra SE4100 integrated 1D/2D scanner for damaged, poorly printed, glossy or screen-displayed codes.
- Wi-Fi 6 for over-the-air management, firmware updates, and remote configuration.
- Bluetooth 5.3 and NFC tap-to-pair for quick connection to Zebra mobile terminals or third-party devices.
- Direct connection via eConnex adapters for compatible Zebra mobile terminals.
- Tri-functional programmable trigger for RFID reading, barcode scanning and an additional configurable function.
- Batch mode for offline collection of up to 40,000 RFID tags.
- Robust construction: IP54, multiple drops from 1.5 m onto concrete and 500 tumble cycles.
RFID performance
| RFID standards | EPC Class 1 Gen 2, EPC Gen2 V2 |
|---|---|
| RFID engine | Zebra Proprietary Radio Technology |
| Reading speed | 1,300+ tags/second |
| Maximum RFID range | 80 ft / 24 m |
| FREQUENCY | US: 902-928 MHz; EU: 865-868 MHz and 916.3 / 917.5 / 918.7 MHz; Japan: 916-921 MHz with LBT |
| RF power | US: 4.16-34.16 dBm EIRP; EU: 2.34-32.34 dBm ERP; EU 916 MHz: 1.76-31.76 dBm ERP; Japan: 3.79-33.79 dBm EIRP |
Integrated 1D/2D Scanner SE4100
| Sensor resolution | 1280 x 960 pixels, rolling shutter |
|---|---|
| Visual field | 44.5° horizontal, 33.5° vertical |
| Scan tolerance | ±60° skew, ±60° pitch, 360° roll |
| Focal length | 6 in / 15.24 cm from the front of the engine |
| Aiming/illumination | Green LED for aiming, warm white LED for illumination |
Connectivity and management
- Host connection: eConnex Electronic 8-pin, Bluetooth 5.3, USB-C Cable, USB Cable Cup.
- Compatible with Zebra mobile terminals, Zebra tablets, third-party smartphones/tablets, and Windows PCs.
- Bluetooth profiles: SPP, HID and Apple iAP2/MFi.
- Remote management via Wi-Fi 6, Ethernet cradles or attached host device.
- Gen2X support for the Gen2X industrial communications standard.
- Compatible with Zebra RFID SDKs for Android, iOS, Windows and MAUI.
- Configuration and firmware via 123RFID Desktop, 123RFID Mobile and Zebra enterprise applications.
Wireless LAN
| Radio | IEEE 802.11 ax/ac/a/b/g/n 2×2, MU-MIMO, IPv4 |
|---|---|
| Data speed | Up to 1.2 Gbps on 5 GHz and up to 458 Mbps on 2.4 GHz |
| channels | 1-14 and 36-196, with channel width 20 / 40 / 80 MHz |
Physical characteristics
| size | 15.6 x 8.4 x 17.5 cm / 6.14 x 3.31 x 6.89 in |
|---|---|
| Weight | Approx. 556g |
| Battery | PowerPrecision+ Li-Ion, quick-release, 7,000 mAh |
| Notifications | Decode LEDs, battery status LED, beeper |
| User input | Tri-functional programmable trigger |
Resistance and working environment
| Protection | IP54 against dust and splash water |
|---|---|
| Falling | Multiple drops from 1.5 m onto concrete |
| Tumble | 500 cycles / 1,000 impacts from 0.5 m |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -40°C to 70°C |
| Moisture | 5-85%, non-condensing |
| ESD | ±15 kV air discharge, ±8 kV direct discharge, ±8 kVdc indirect |
Recommended apps
- Retail: cycle counting, product location, planogram compliance, returns, inventory management, back-of-store, BOPIS/BOPAC, direct delivery to the store.
- Hospitality: check-in, event ticketing, loyalty cards, food traceability, inventory and field service.
- Healthcare: tracking samples, patients, medical assets, personnel, patient identification, medication administration and pharmacy management.
Family models
- RFD4051-G10B700-E8 – RFD40-M Premium Plus, linearly polarized antenna, UHF RFID, Bluetooth, Wi-Fi, SE4100 Imager, 7,000 mAh battery, Midnight Black, EMEA 800 MHz.
- RFD4051-G10B700-WR – RFD40-M Premium Plus, linearly polarized antenna, UHF RFID, Bluetooth, Wi-Fi, SE4100 Imager, 7,000 mAh battery, Midnight Black, 900 MHz Worldwide.
Accessories and service
The RFD40-M Premium Plus family supports eConnex and Bluetooth adapters for compatible Zebra mobile devices, single-slot and multi-slot cradles, charge-only or communication cradles, cable cup, USB-C cable, power supplies, battery charger, 7,000 mAh PowerPrecision+ battery, Battery Locking Foot and belt holster. Zebra OneCare plans are also available for comprehensive coverage, repairs, priority support, software updates and visibility through VisibilityIQ OneCare.
Package contents
- RFID Zebra RFD40-M Premium Plus sled
- PowerPrecision+ 7,000 mAh battery
- Lanyard
- Quick Start Guide
