WS2-2 203dpi label printer SATO W2202-401DW-EU

WS2-2 203dpi label printer SATO W2202-401DW-EU with USB, LAN, WLAN and Dispenser

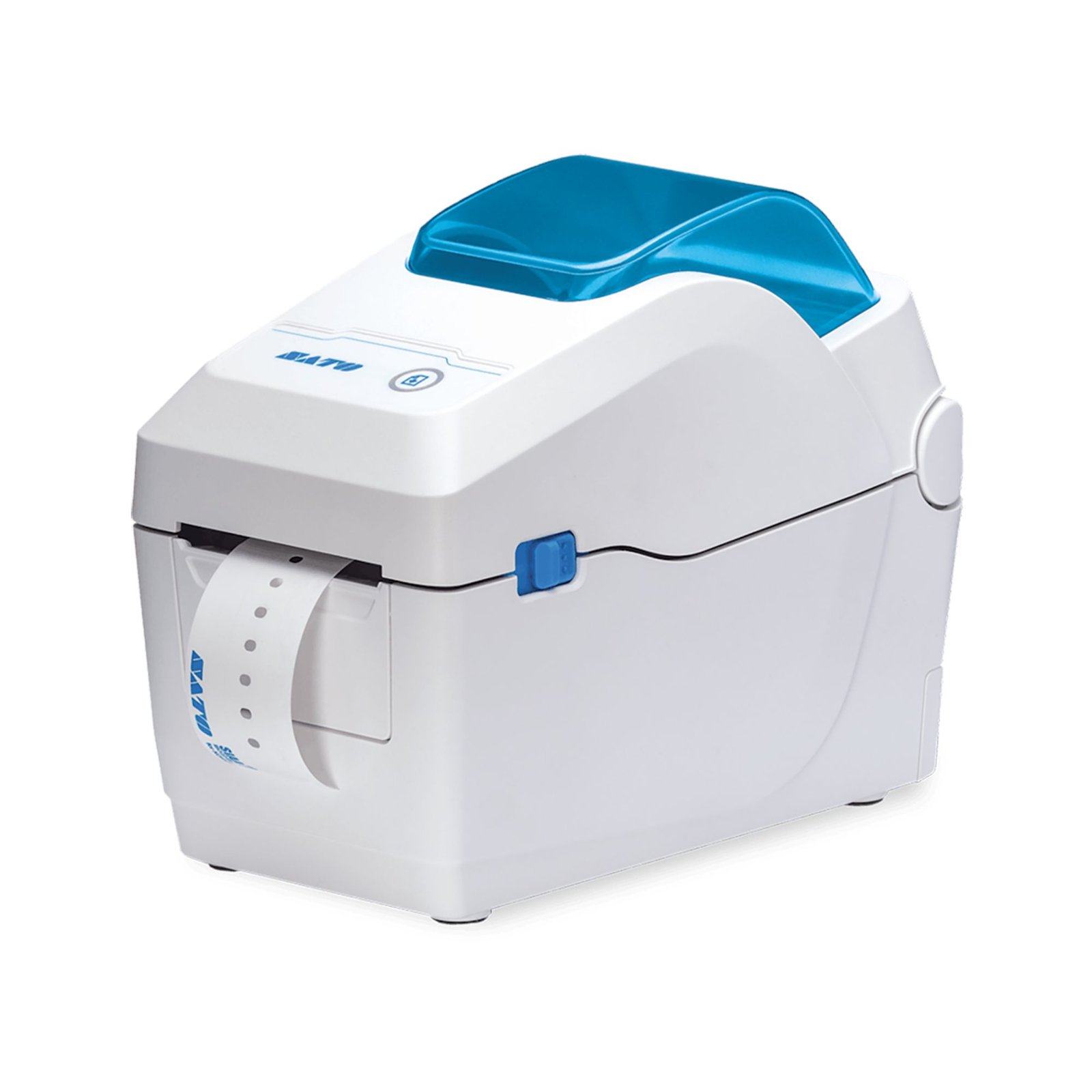

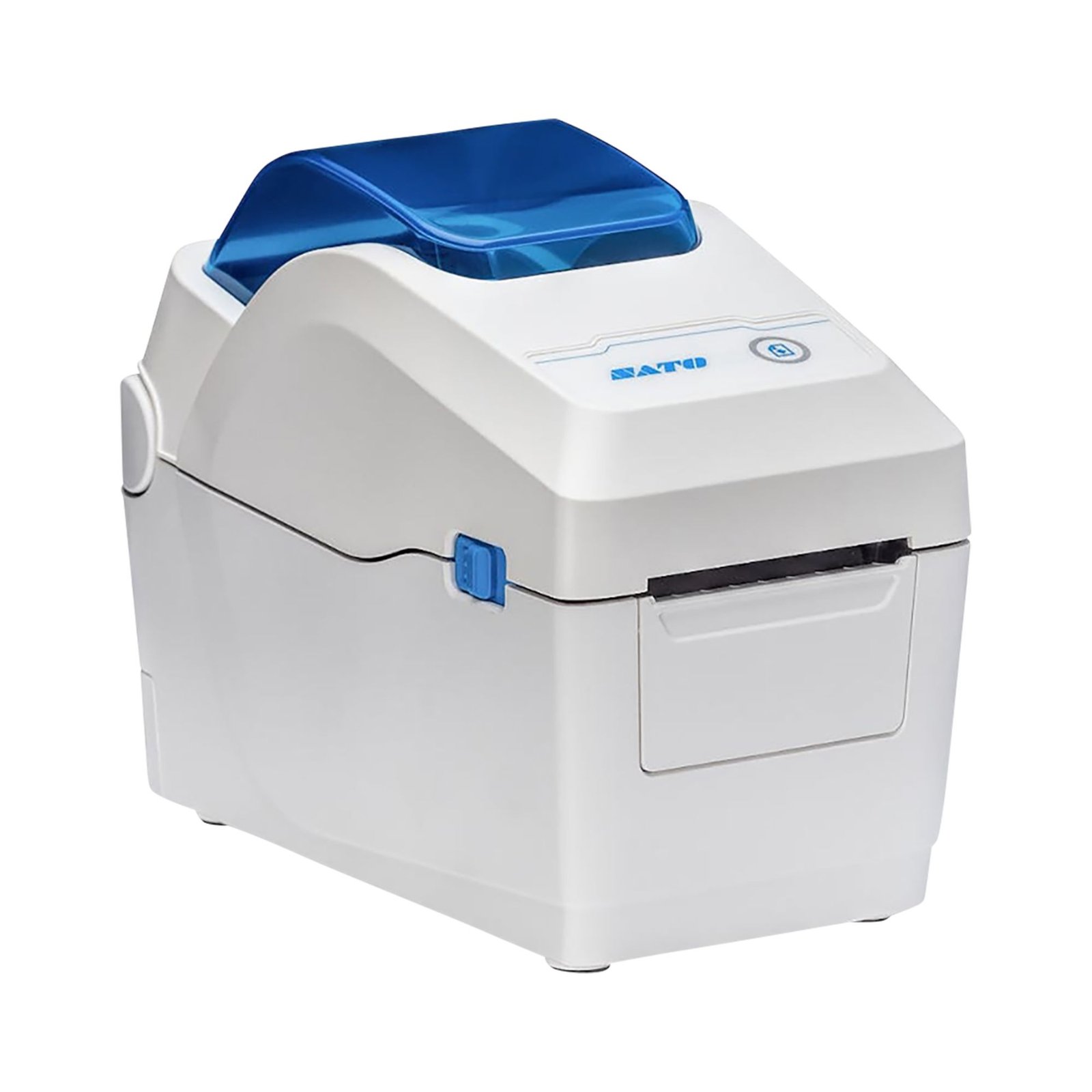

The SATO WS2-2 203 dpi W2202-401DW-EU is a 2″ direct thermal label printer equipped with USB, Ethernet (LAN), WLAN wireless connectivity and integrated dispenser (peeler). Designed for retail, logistics and manufacturing, this printer offers wireless printing and automatic label application for a fast and efficient workflow.

The WS208 (203 dpi) model from the WS2-2 series combines stable performance with maximum integration flexibility. The Wi-Fi module (IEEE 802.11 b/g/n) allows installation into existing wireless networks, and the peeler function automatically presents each label ready for application, increasing operational productivity.

Main benefits

• 203 dpi (8 dots/mm) resolution – clear printing for text, graphics and 1D/2D barcodes.
• Integrated dispenser (Peeler) – automatic peeling for quick application.
• Full connectivity: USB, LAN and WLAN for flexible integration.
• Wireless printing – ideal for spaces where cabling is limited.
• Compact 2″ design – suitable for offices, warehouses and workstations.
• SATO reliability – consistent performance in professional environments.

Technical specifications

• Model: W2202-401DW-EU
• Series: SATO WS2-2 (WS208)
• Printing method: Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Print speed: 2 – 7 ips (50 – 177 mm/sec); 2 & 3 ips in peel-off mode
• Average width: 12 – 60 mm
• Average length: 10 – 2540 mm
• Label roll: max. 127 mm (5″) OD
• Operating modes: Continuous, Tear-off, Peeler (Dispenser)
• Sensors: Reflective (mobile), Transmissive, Head Open Switch

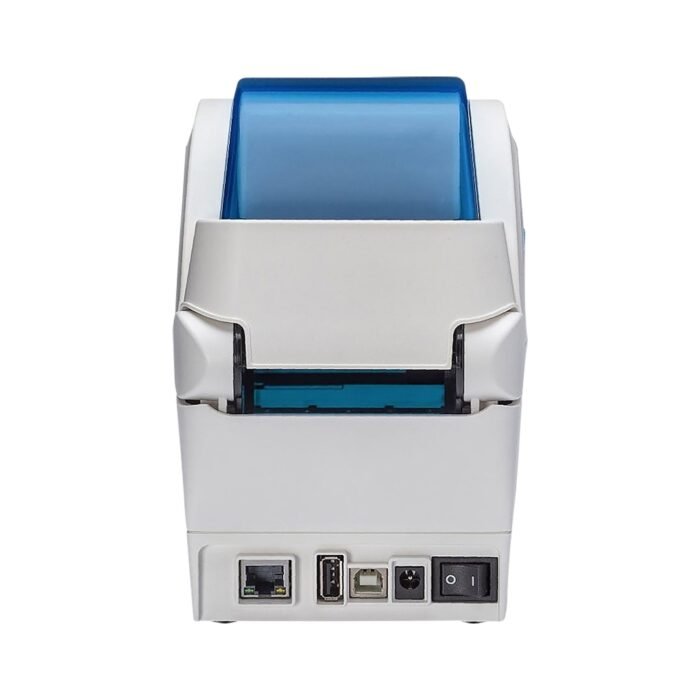

• Interfaces: USB Device (Type B), USB Host (Type A), Fast Ethernet (IPv4/IPv6), WLAN (IEEE 802.11 b/g/n)
• Languages: SZPL, SEPL, SDPL
• 1D codes: Code 39, Code 93, Code 128, EAN-8/13, UPC-A/E, GS1-128, MSI, I 2/5 etc.
• 2D codes: QR Code, Data Matrix (ECC200), PDF417, Micro PDF, Aztec, MaxiCode
• Memory: Flash ROM 16 MB; User Memory 8 MB; SDRAM 32MB
• USB Storage: up to 32GB (FAT32)
• Dimensions: 116 (W) x 170 (H) x 215 (D) mm
• Weight: approximately 1 kg
• Power supply: AC 100–240V, 50–60 Hz
• Operating temperature: 5 – 40°C
• Operating humidity: 25 – 85% RH (non-condensing)
• Certifications: CE, CB, IEEE Wireless

Recommended applications

• Price tags and retail promotions
• Logistics and transportation labels
• Warehouse and picking labels
• Product and packaging identification
• Rapid labeling in production lines

Why choose the W2202-401DW-EU model?

This model offers the ideal combination of mobility and efficiency. Wireless connectivity allows for flexible installation, and the automatic dispenser optimizes the label application process. For companies looking for performance, speed and easy integration into their IT infrastructure, the SATO WS2-2 203dpi is a professional and reliable choice.

SATO WS2-2 Series Video Presentation

https://www.youtube.com/watch?v=GlMXu3kd4qI
