TSC TTP Series 8-inch Thermal Printer

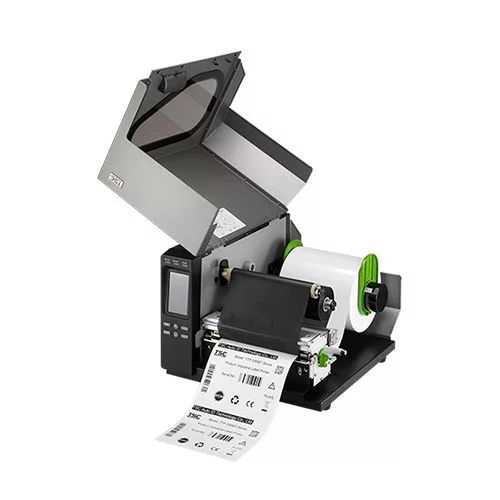

TSC TTP-286MT Industrial Thermal Printer – 8.5” Print Width, Speed ​​and Reliability for Wide Labels

TSC TTP-286MT is a wide-width industrial thermal printer, ideal for applications requiring the printing of wide labels, side-mounted barcodes, signage and GHS labels. With a speed of up to 152 mm/s (6 ips) and a resolution of 203 dpi, this model ensures high print quality and efficient operation in demanding industrial environments.

Built on a solid metal frame, the TTP-286MT offers excellent 24/7 reliability and industrial consumable capacity (8.2” OD label roll and up to 600 m ribbon). The 4.3” color touch screen and intuitive 6-button interface make setup and use extremely simple.

Main Features:

• Printing Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi (300 dpi model also available – TTP-384MT)
• Max. Print Speed: 6 ips (152 mm/s)
• Max. Print Width: 216 mm (8.5″)
• Max. label: 11,430 mm (450″)

Construction and supplies:

• Housing: die-cast metal frame, transparent media window
• Ribbon: max. length 600 m, width 110 – 254 mm
• Media types: continuous, die-cut, fan-fold, tag, black mark, perforated
• Media width: up to 241.3 mm (9.5″)

Connectivity and management:

• • Interfaces: Ethernet, USB, USB Host, Serial RS-232, Parallel, GPIO
  • Wireless: Integrated Bluetooth
  • Enterprise Management: TSC Console

compatible

Smart Features:

• Display: 4.3” color touch screen + navigation buttons
• Memory: 512 MB Flash, 256 MB RAM, expandable with SD card up to 32 GB
• Printer Language: TSPL-EZD (emulates ZPL, EPL, DPL)

Recommended Applications:

• GHS Labels for Chemicals
• Wide Labels with side barcodes (no image rotation)
• Custom signage and warnings
• Multiple labels (2–3 per row)
• Pallet, barrel, product and box labeling
