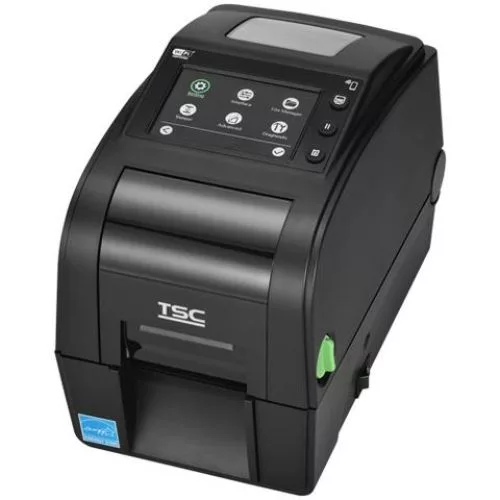

TSC TH220 Thermal Printer

TSC TH Series Desktop Thermal Printers – Precision and Versatility for Narrow Labels

TSC’s TH Series 2″ delivers premium performance in a compact form factor, ideal for applications that require small, precise and durable labels. The TH220T, TH320T, TH220THC and TH320THC models are designed for applications in retail, healthcare, transportation, warehousing and food processing, and are also ideal for printing ID wristbands.

Featuring a colour touchscreen display, extensive connectivity and full support for remote management, these printers are ready for modern operations and network security requirements. The antibacterial housing and IEC 60601-1 compliant power supply make them perfect for clinical and laboratory environments.

Available models:

• TH220T / TH220THC: 203 dpi resolution, up to 8 ips
• TH320T / TH320THC: 300 dpi resolution, up to 6 ips

Key features:

• Max. print width: up to 56.9 mm
• Max. label: up to 1000″ (25,400 mm)
• Printing method: direct thermal / thermal transfer
• Memory: 128 MB Flash / 128 MB RAM
• Ribbon: up to 90 m, width between 56 – 58 mm

Connectivity & management:

• Standard: USB, RS-232, Ethernet, USB Host
• Optional wireless: Wi-Fi, Bluetooth MFi
• Remote management: TSC Console, SOTI Connect, virtual panel, web interface built-in

Media Compatibility:

• Media Width: between 15 mm and 60 mm
• Media Types: die-cut, continuous, black mark, fan-fold, notch (wristbands included)
• Internal Label Capacity: up to 127 mm OD

Eco-Friendly & Sanitary Design:

• 100% recyclable packaging, 30% recycled plastic housing
• Over 90% recyclable components
• Easy-to-clean antimicrobial housing (THC models)
• IEC 60601-1 compliant for safe use in healthcare

Ideal applications:

• Small product labels
• Patient / visitor identification bracelets
• Food / beverage labeling
• Narrow logistics labels
• Retail, entertainment, warehouses, pharmacies, laboratory
