TSC TDM-30 Mobile Printer

TSC TDM-30 Mobile Printer – Compact, Rugged and Reliable, with Extended Autonomy

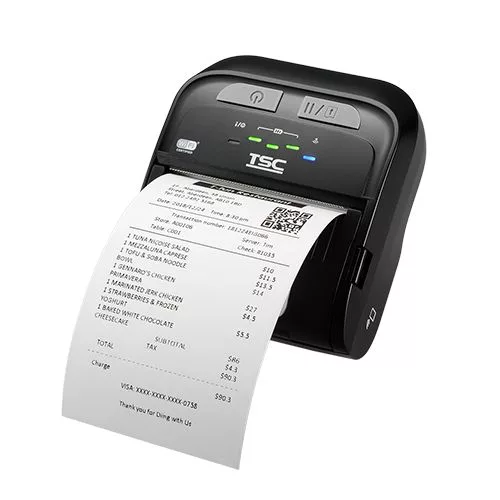

TSC TDM-30 from the TDM Series is a 3-inch direct thermal mobile printer with a compact, rugged and ultra-portable design, perfect for mobile receipt and label printing in field applications. Tested to withstand drops of up to 1.8 m (without case) or 2.5 m (with case), with MIL-STD-810G certification and IP54 protection, the TDM-30 is built for professional use in logistics, retail, mobile POS and more.

Main features:

• Printing technology: direct thermal (ribbon-free)
• Resolution: 203 dpi
• Maximum print speed: up to 102 mm/s (4 ips)
• Connectivity: USB 2.0, Bluetooth MFi, Wi-Fi 802.11 a/b/g/n, NFC for connection instant
• Display: LCD or LED with buttons, easy to use

Autonomy and intelligent management:

• Smart battery: over 42 hours of continuous operation
• TSC Battery Management System: real-time monitoring of battery status, charging cycles and performance
• TPH Care Mechanism: automatic diagnosis for print head status

Media and flexibility:

• Supported media width: 20 mm – 70 mm
• Media types: receipts, labels, linerless
• Sensors: standard black mark, optional gap sensor

Software features:

• Language compatibility: CPCL, ESC-POS
• Mobile applications: configuration and troubleshooting from iOS/Android application
• Web print: direct printing from browser-based applications
• Remote management: TSC Console compatible

Recommended applications:

• Mobile retail and POS
• Product labeling in logistics and warehouse
• Transport and ticketing mobile
• Issuing receipts on the field, citations, utilities
