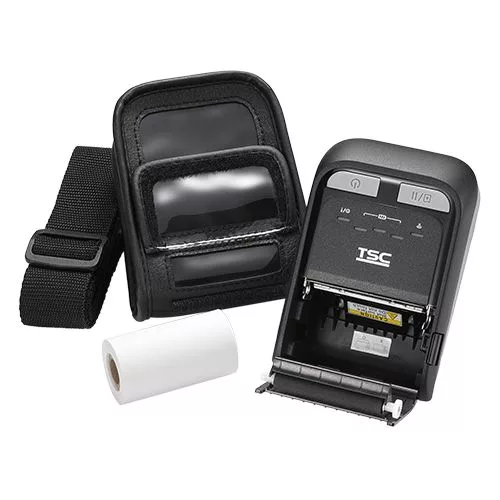

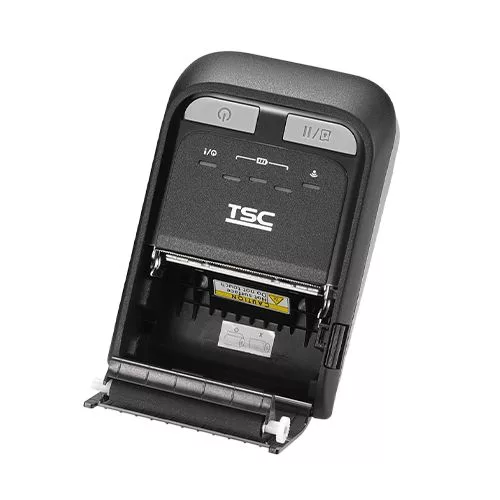

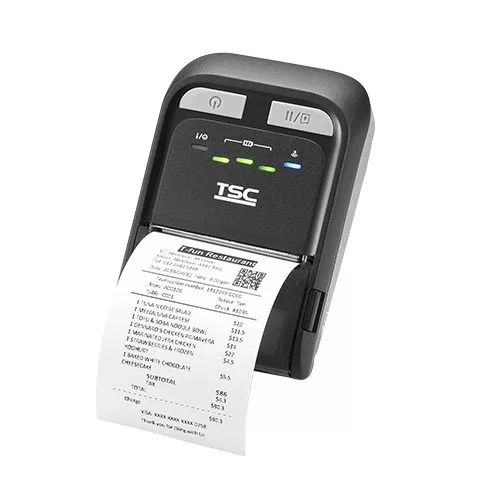

TSC TDM-20 Mobile Printer

TSC TDM-20 – ultra-compact and smart mobile printer for professional mobile applications

The TSC TDM-20 is a 2″ (48 mm max. print width) direct thermal mobile printer, designed to offer mobility, connectivity and durability in any field. Weighing only 215 g with battery, it is one of the lightest portable printers in its class, making it ideal for retail, transportation, logistics and field services.

It features USB 2.0, Bluetooth 5.0 MFi (Made for iOS) and passive NFC, allowing for quick integration with smartphones, tablets and mobile POS. It offers 203 dpi resolution, 102 mm/s print speed, autonomy fully replaceable thanks to the 1130 mAh Li-ion battery and IP42 (IP54 with optional case) certification for dust and splash resistance.

⚙️ Technical specifications:

• 🖨️ Technology: Direct thermal

• 🎯 Resolution: 203 dpi (8 dots/mm)

• ⚡ Max. print speed: 102 mm/s

• 📏 Max. print width: 48 mm (1.89″)

• 📏 Media support: up to 58 mm wide, max. diameter. 30 mm roll

• 💾 Memory:

  • 16 MB Flash

  • 32 MB SDRAM

• 🔌 Connectivity:

  • USB 2.0

  • Bluetooth 5.0 MFi (Made for iOS)

  • Passive NFC

  • (optional) Wi-Fi 802.11 a/b/g/n with Bluetooth 5.0 + NFC

• 📟 Sensors: Head open, Reflective

• 🔋 Battery: Li-ion 1130 mAh, autonomy for a full shift

• 📐 Dimensions: 79 × 116 × 36.5 mm

• ⚖️ Weight: 215 g (with battery)

• 🧱 Resistance: Drop test 1.8 m (2.5 m with cover), IP42 (IP54 with cover)

• 🧠 Languages: TSPL-EZD (EPL2, ZPL2, DPL), ESC-POS, CPCL

• 📊 Supported codes:

  • 1D: EAN, UPC, Code128, Code39, Interleave 2/5 etc.

  • 2D: QR, PDF417, DataMatrix, Aztec

✅ Major advantages:

🏭 Ideal applications:

✔️ Retail and mobile POS ✔️ Courier and transportation ✔️ Logistics and warehousing ✔️ Mobile invoicing and receipts ✔️ Ticketing and entertainment ✔️ Utilities and meter reading

“TSC TDM-20 – the ultra-compact and durable mobile printer, with Bluetooth MFi and NFC, designed for retail, logistics and mobile services.”

🛒 Order now the TSC TDM-20 model from AutoID.ro – lightweight, smart and reliable mobile printer, perfect for the field.
