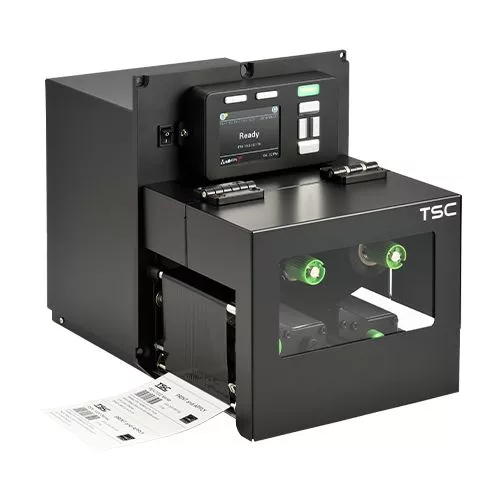

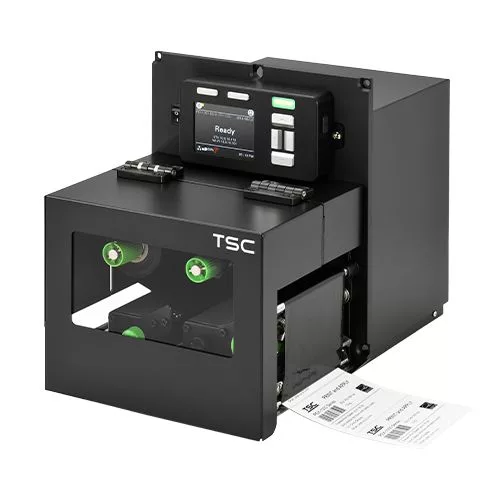

TSC Printronix PEX-1001 thermal printing module

TSC Printronix PEX-1001 Thermal Print Module – Easy Integration and Reliable 24/7 Performance

TSC PEX-1001 is a 4-inch industrial print engine, part of the PEX-1000 series, specifically designed for easy integration into print & apply applications. Ideal for automated workflows, the PEX-1001 offers reliable 24/7 performance, compatibility with industry-standard languages ​​and interfaces, and a rugged construction for use in demanding environments.

Main Features:

• Resolution: 203 dpi (8 dots/mm)
• Printing Method: Direct Thermal / Thermal Transfer
• Maximum Print Speed: Up to 457 mm/s (18 ips)
• Maximum Print Width: 104 mm (4.09”)
• Maximum Label Length: Up to 25,400 mm (1000”)

Connectivity and Integration:

• Interfaces: USB, Serial RS-232, Ethernet, Parallel, GPIO, USB Host
• Wireless (optional): Wi-Fi and Bluetooth
• Language Compatibility: TSPL-EZD (supports ZPL, EPL, DPL)
• Easy Integration: DB15/DB25 GPIO support and customizable firmware

Industrial Reliability:

• Rugged Construction: Heavy-duty die-cast aluminum design
• Extended Life: MTBF up to 22,000 hours

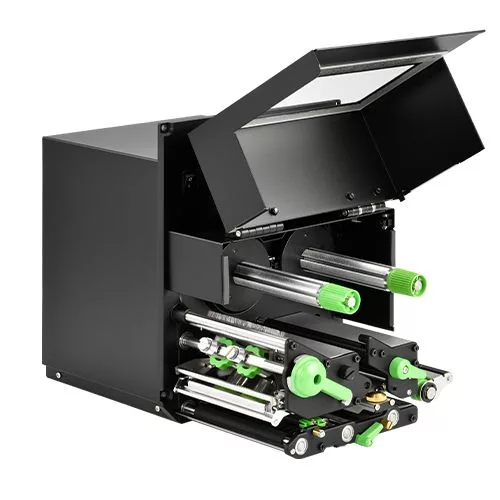

• Accessibility: Color LCD control panel with buttons, quick access to components

Features advanced:

• Ribbon Saver (optional): reduces ribbon consumption
• RFID support (optional): for smart labeling applications
• Remote management: compatible with TSC Console and SOTI Connect

Recommended applications:

• Automotive, industrial manufacturing
• Logistics & transportation
• GHS and pharmaceutical labeling
• Automated pallet and box labeling applications
