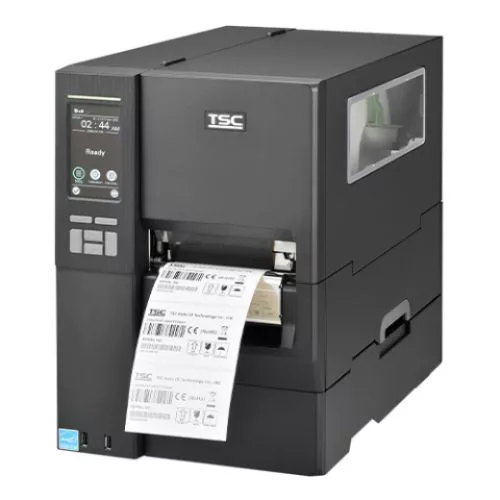

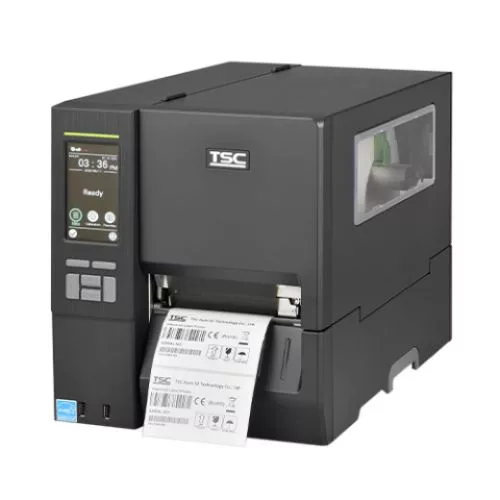

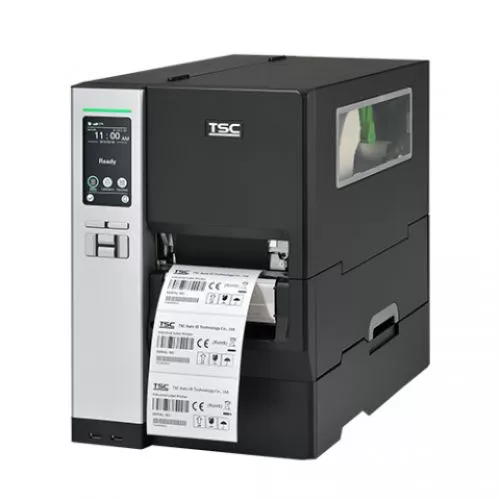

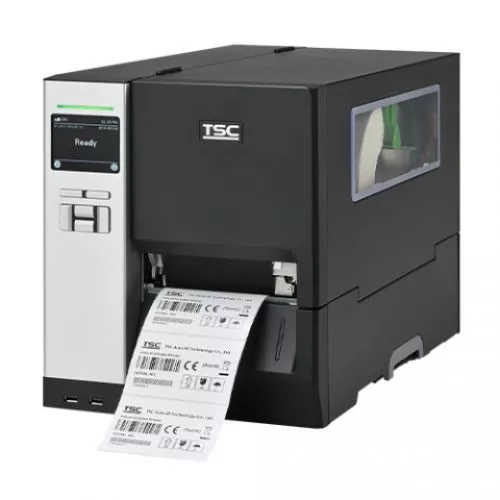

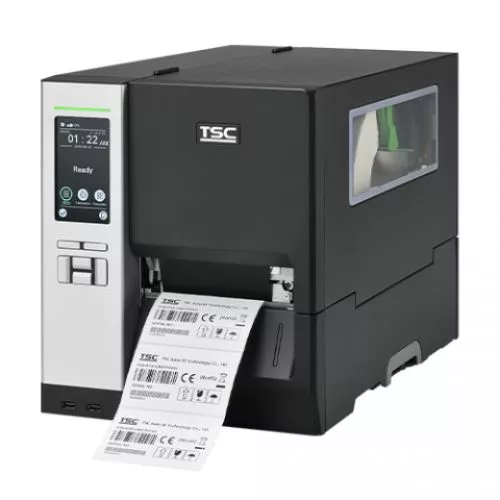

TSC MH Series Thermal Printer

TSC MH Series Industrial Thermal Printers – Advanced Performance and Reliability for Professional Labeling

TSC MH Series is the top-of-the-line 4-inch industrial barcode printer, equipped with premium printhead technology, a fast processor and extensive memory for printing at maximum speeds, even in the most demanding industrial environments.

Key Features

• Multiple resolutions: 203, 300 and 600 dpi – for crisp text, 2D codes and detailed graphics
• Print speed: up to 14 ips (356 mm/s)
• Self-diagnostic printhead: TSC Sense Care monitors printhead health in real time
• Remote management: SOTI Connect, TSC Console and integrated web interface
• Robust construction: aluminum mechanism and hinged metal lid with viewing window

Available models

• MH241 / MH341 / MH641: Basic models with LCD and buttons
• MH241T / MH341T / MH641T: Color touchscreen versions
• MH241P / MH341P / MH641P: Models for professional applications with additional auto-take functions

Recommended Applications

• Logistics and deliveries – transport labeling
• Industrial manufacturing – line labeling, safety, inventory
• Retail and distribution – shelf and product labeling
• Healthcare – patient labeling, medical samples and devices

Key Technical Specifications

• Max. width. print: 4.09″ (104 mm)
• Memory: 256 MB RAM, 512 MB Flash, expandable with microSD up to 32 GB
• Connectivity: Ethernet, USB, RS-232, USB Host, GPIO + optional Wi-Fi & Bluetooth MFi
• Media support: continuous labels, cut, black mark, fan-fold, perforated, textile tags
• Max. print length: up to 1000″ (25,400 mm)
• Ribbon: up to 600 m long, width 1″ – 4.5″

Flexibility and Adaptability

The MH series is compatible with a wide variety of media and offers fine adjustments for precise positioning and avoiding ribbon wrinkles. The T and P models can detect when the media is almost empty and visually alert the user.

Sustainability

The durable metal housing and efficient design help reduce operating costs and extend the life of the equipment – ​​a significant advantage in high-volume printing industries.
