Touchscreen monitoring Elo 04LS
Price range: 260,82 € through 466,20 € ex. VAT
Elo 04LS 7″, 10″, 13″ and 15″ touchscreen monitors – durable commercial displays, USB-C, 10-point multi-touch, slim design and exceptional clarity.
Elo 04LS LCD Touchscreen Monitor – Performance, Precision, and Compact Design
The Elo 04LS monitors are designed specifically for professional applications that require precise touch interaction and high-definition display. With a durable construction, scratch-resistant glass, and a sleek, narrow-bezel design, the Elo 04LS series delivers a premium touch experience for POS, HMI, interactive digital signage, or self-service solutions.
Each model uses TouchPro® PCAP capacitive projection technology, offering support for 10 simultaneous touch points, fast response, and a smooth, easy-to-clean surface.

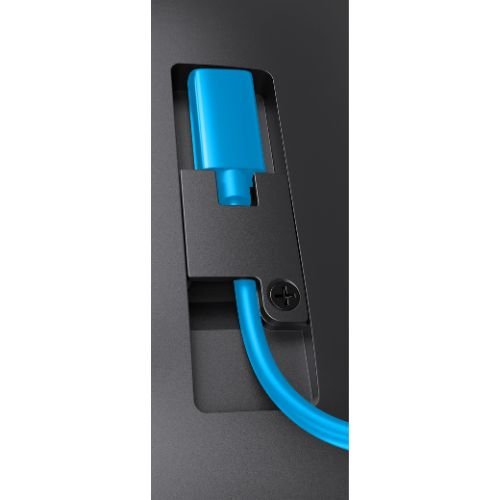

Thanks to the USB-C connection, a single cable simultaneously transmits video signal, power, and touch control, reducing wiring and simplifying installation.
With wide 178°/178° viewing angles, anti-glare imaging, and IK07 protection, the Elo 04LS monitors guarantee visual clarity and reliability even in demanding environments.

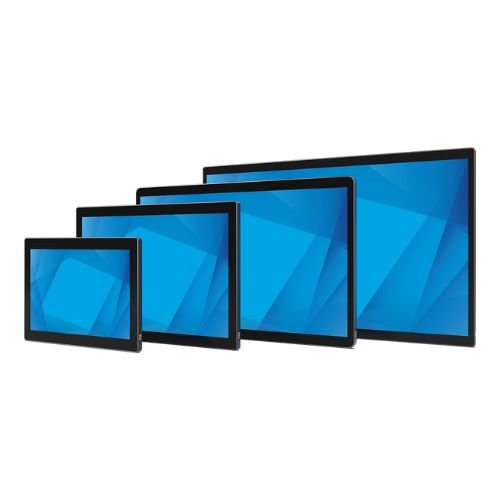

Available models:
| Model | Screen size | Resolution | Touch technology | Brightness | Contrast | Viewing angle | Connectivity | Weight | Product code |
|---|---|---|---|---|---|---|---|---|---|
| Elo 0704LS | 7” (17.8 cm) | 1280×800 | TouchPro® PCAP (10 points) | 360 cd/m² | 800:1 | 178°/178° | USB-C | 0.32 kg | E967730 |
| Elo 1004LS | 10.1” (25.4 cm) | 1280×800 | TouchPro® PCAP (10 points) | 360 cd/m² | 800:1 | 170°/170° | USB-C | 0.6 kg | E967935 |
| Elo 1304LS | 13.3” (33.8 cm) | 1920×1080 | TouchPro® PCAP (10 points) | 270 cd/m² | 600:1 | 178°/178° | USB-C | 0.87 kg | E968117 |
| Elo 1504LS | 15.6” (38.1 cm) | 1920×1080 | TouchPro® PCAP (10 points) | 270 cd/m² | 600:1 | 178°/178° | USB-C | 1.1 kg | E968313 |
Technical Specifications – Elo 04LS LCD Touchscreen Series
| Feature | Elo 0704LS (7”) | Elo 1004LS (10.1”) | Elo 1304LS (13.3”) | Elo 1504LS (15.6”) | ||
|---|---|---|---|---|---|---|
| Product Code | E967730 | E967935 | E968117 | E968313 | ||
| Screen technology | TFT LCD, optical bonding | TFT LCD, bonding optical | TFT LCD, optical bonding | TFT LCD, optical bonding | ||
| Touch technology | TouchPro® PCAP (projected capacitive) | TouchPro® PCAP (projected capacitive) | TouchPro® PCAP (projected capacitive) | TouchPro® PCAP (projected capacitive) | ||
| Number of simultaneous touches | 10 points | 10 points | 10 points | 10 points | 10 dots | |
| Screen Diagonal | 7″ (177.8 mm) | 10.1″ (256.5 mm) | 13.3″ (337.8 mm) | 15.6″ (396.2 mm) | ||
| Active Area (W x H) | 149.76 x 93.60 mm | 216.96 x 135.60 mm | 293.76 x 165.24 mm | 344.16 x 193.59 mm | ||
| Native resolution | 1280 x 800 px | 1280 x 800 px | 1920 x 1080 px | 1920 x 1080 px | ||
| Aspect ratio appearance | 16:10 | 16:10 | 16:9 | 16:9 | ||
| Brightness (panel/touch) | 400 / 360 cd/m² | 400 / 360 cd/m² | 300 / 270 cd/m² | 300 / 270 cd/m² | ||
| Contrast typical | 800:1 | 800:1 | 600:1 | 600:1 | ||
| Viewing Angle (H/V) | 178° / 178° | 170° / 170° | 178° / 178° | 178° / 178° | ||
| Response Time (Tr+Tf) | 35 ms | 30 ms | 27 ms | 25 ms | ||
| Number of colors | 16.7 million | 16.7 million | 16.2 million | 16.2 million | ||
| Screen surface | Chemically hardened glass, anti-reflective | Chemically hardened glass, anti-reflective | Chemically hardened glass, anti-glare | Chemically strengthened glass, anti-glare | ||
| Video/touch connectivity | USB Type-C (data, video, power) | USB Type-C | USB Type-C | USB Type-C | ||
| Built-in speakers | Yes (2 x 1W) | Yes (2 x 2W) | Yes (2 x 2W) | Yes (2 x 2W) | ||
| VESA compatibility | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | 75 x 75 mm | ||
| Power consumption (On/Sleep/Off) | 4.8 W / 0.8 W / 0.15 W | 6.6 W / 0.8 W / 0.15 W | 6.6 W / 0.8 W / 0.15 W | 7.2 W / 0.8 W / 0.15 W | ||
| Case color | Dark gray | Dark gray | Dark gray | Dark gray | ||
| Impact protection | IK07 | IK07 | IK07 | IK07 | ||
| Certifications | CE, FCC, UL, RoHS, REACH, WEEE, UKCA | CE, FCC, UL, RoHS, REACH, WEEE, UKCA | CE, FCC, UL, RoHS, REACH, WEEE, UKCA | CE, FCC, UL, RoHS, REACH, WEEE, UKCA | ||
| Operating temperature | 0°C – 40°C | 0°C – 40°C | 0°C – 40°C | 0°C – 40°C | 0°C – 40°C | |
| Storage temperature | -20°C – 60°C | -20°C – 60°C | -20°C – 60°C | -20°C – 60°C | -20°C – 60°C | |
| Humidity (non-condensing) | 20% – 80% | 20% – 80% | 20% – 80% | 20% – 80% | ||
| Lifetime (MTBF) | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | ||
| Dimensions (W x H x D) | 173.1 x 121.6 x 14.6 mm | 239.9 x 163 x 15 mm | 311.5 x 191.9 x 14.9 mm | 364.0 x 214.0 x 15.2 mm | ||
| Weight net | 0.32 kg | 0.60 kg | 0.87 kg | 1.10 kg | ||
| Gross weight (packaged) | 0.67 kg | 1.11 kg | 1.55 kg | 1.85 kg | ||
| Package contents | Monitor, USB-C cable, QSG | Monitor, USB-C cable, QSG, adapter VESA | Monitor, USB-C cable, QSG, VESA adapter | Monitor, USB-C cable, QSG, VESA adapter | ||
| Standard warranty | 3 years | 3 years | 3 years | 3 years | ||
| Warranty extension options | 4 / 5 years, with or without AUR | 4 / 5 years, with or without AUR | 4 / 5 years, with or without AUR | 4 / 5 years, with or without AUR | 4 / 5 years, with or without AUR | 4 / 5 years, with or without AUR |
| Additional Features | Low Blue Light, Flicker Free, Power via DDCCI | Low Blue Light, Flicker Free | Low Blue Light, Flicker Free, Energy Star 8.0 | Low Blue Light, Flicker Free, Energy Star 8.0 |
🟩 Technical Notes
- All models in the Elo 04LS range use the same hardware platform with optically bonded screens, offering excellent visibility in environments bright.
- USB-C Power Delivery allows direct power supply from a PC or compatible hub (5V, 9V, 15V or 20V).
- TÜV Rheinland certification guarantees reduced visual fatigue thanks to Low Blue Light & Flicker-Free.

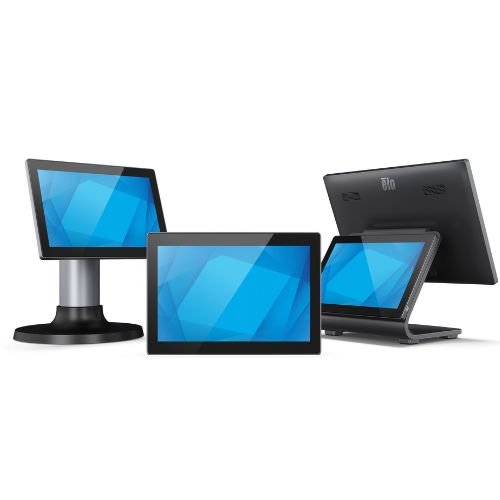

- All models are compatible with industrial or desktop mounting, making them ideal for POS, HMI, kiosks and commercial applications.
🟩 Recommended Applications
- Modern and compact point of sale (POS)
- Industrial HMI control screens
- Infokiosks and self-service terminals
- Interactive digital displays
- Conference rooms, hospitals, public institutions
🟩 Competitive advantages
The Elo 04LS monitors combine minimalist aesthetics with the proven reliability of TouchPro® PCAP technology. By integrating a single USB-C cable, installation becomes extremely clean and efficient — ideal for retail, industry, and public services.
Unlike other touch monitors of similar size, the Elo series offers professional touch accuracy, energy efficiency, and a natural visual experience, without reflections or delays.
If you want a professional touchscreen monitor, with commercial durability, refined design, and a modern USB-C interface, the Elo 04LS series is the perfect choice. Whether you opt for the 7”, 10”, 13” or 15” version, you benefit from state-of-the-art technology, excellent clarity, and a precise and natural touch experience.
🟩 Frequently Asked Questions (FAQ)
1. What type of connection does the Elo 04LS monitor use?
The monitor uses USB-C for power, display, and touch – one cable for everything.
2. Is it VESA mount compatible?
Yes, all models support 75×75 mm VESA mount.
3. Can it be used in industrial environments?
Yes, the IK07 design and chemically strengthened glass provide high protection and durability.
4. What is the product warranty?
Standard 3 years, with the option to extend up to 5 years.
5. Is it suitable for POS applications?
Absolut – it is designed for POS, HMI, digital signage, and self-service terminals.
6. How to maintain the touch surface?
It is easy to clean with a soft cloth and non-abrasive solutions, thanks to the smooth capacitive glass.
7. What does TÜV Low Blue Light certification mean?
Reduces blue light emission for increased visual comfort during prolonged use.
