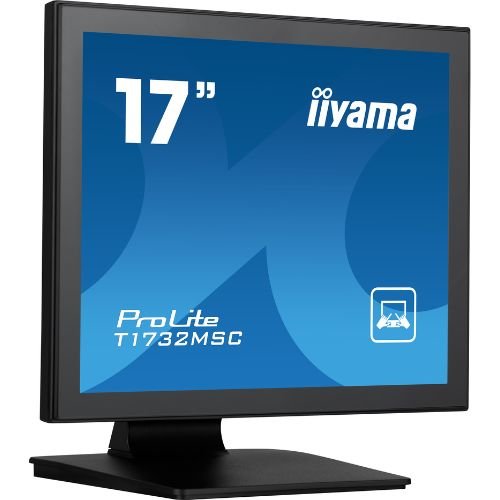

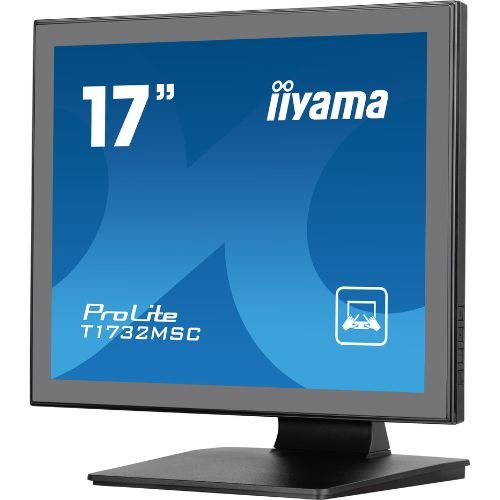

Touchscreen monitor 17″ SXGA PCAP 10 Touch, TN LED, Edge-to-Edge Glass, IP54 – iiyama T1732MSC-B1S
515,46 € incl. VAT
IIYAMA T1732MSC-B1S 17″ touchscreen monitor with 10-point PCAP technology, edge-to-edge design, scratch-resistant glass and OSD lock function. Ideal for retail, commercial applications and interactive information points.
IIYAMA ProLite T1732MSC-B1S – 17” 5:4, PCAP 10-touch touch monitor, edge-to-edge anti-glare glass, ideal for POS, front-desk and info-kiosk
iiyama ProLite T1732MSC-B1S is a 17” (5:4, 1280×1024) touch monitor designed for POS/retail, receptions and counters with public, ticketing or info-kiosk. PCAP 10-touch offers fluid gestures and high precision, and the edge-to-edge glass with anti-glare coating reduces reflections and is easy to clean. HDMI / DisplayPort / VGA and USB for touch (HID plug-and-play) connectivity make it easy to integrate into any system. The +90° / –5° tilt stand is perfect for digital signatures at the counter, and the VESA 100×100 mount allows for wall or arm mounting.
Why choose T1732MSC-B1S
- 10-point touch (PCAP) with smartphone-like response and palm-rejection.
- 5:4 (1280×1024) aspect ratio – more height for lists, tables and POS/HMI UI.
- Edge-to-edge anti-glare glass – reduced reflections, quick cleaning, premium look.

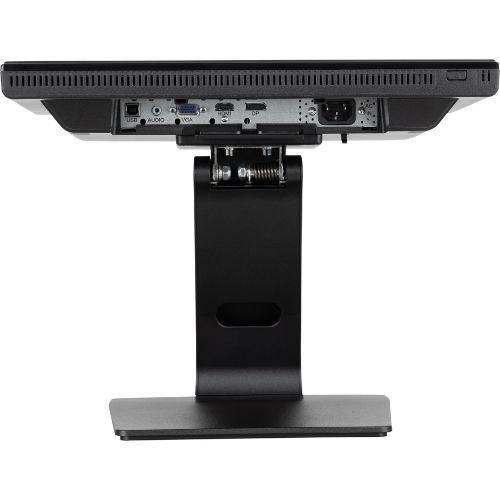

- Full connectivity: HDMI + DisplayPort + VGA, USB touch, audio-out, speakers.
- Front-desk ergonomics: tilt +90° / –5°, VESA 100×100, OSD key-lock.
- Visual comfort: Flicker-Free and Blue Light Reducer for long-term use.
Recommended scenarios
- Retail & POS: cash register, digital signature, forms, customer feedback.
- Reception & hospitality: check-in/out, info-desk, wayfinding at the counter.
- Public/services: public relations counters, ticketing, appointments.
- Education & expo: compact info points, interactive demo stands.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite T1732MSC-B1S |
| Panel / Image | 17” (43 cm) • 1280×1024 @60 Hz (5:4) • panel technology for professional applications • panel brightness ≈300–350 cd/m² (≈270–315 cd/m² with touch layer) • contrast ≈800–1000:1 • response time ≈5–8 ms • viewing angles ≈170°/160° • 16.2–16.7 million colors • edge-to-edge glass with anti-glare finish |
| Touch | Projected Capacitive (PCAP) • 10 points (HID) • palm-rejection • methods: capacitive stylus, finger, glove thin (latex) • USB interface (plug-and-play) |
| Inputs / Outputs | HDMI ×1 • DisplayPort ×1 • VGA ×1 • USB (touch) ×1 • Audio-out 3.5 mm ×1 • integrated speakers |
| OSD & Comfort | Blue Light Reducer, Flicker-Free, OverDrive, i-Style/Advanced Contrast, X-Res • OSD key-lock, DDC/CI, Plug&Play DDC2B |

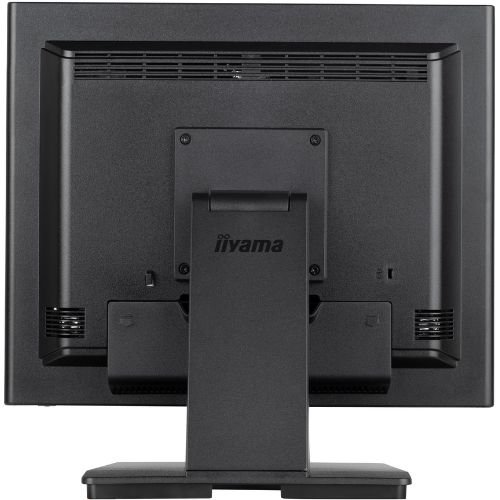

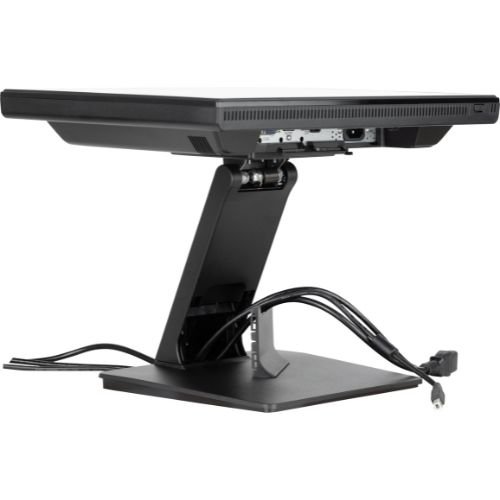

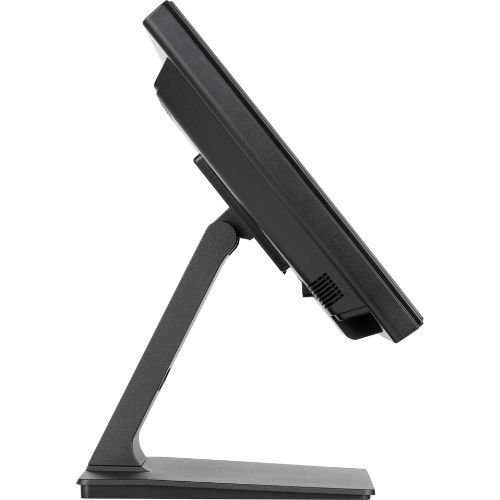

| Ergonomics & Montage | Inclination: +90° / –5° (signature mode) • VESA 100×100 mm • cable management |
| Compatibility | Windows 10/11, Linux, Android (touch HID) |
| Power & Power consumption | AC 100–240 V, 50/60 Hz • typical power consumption ≈10–15 W • stand-by ≈0.5–1.5 W |
| Dimensions & Weight | Compact counter/front-desk case • weight ≈3.5–4.5 kg |

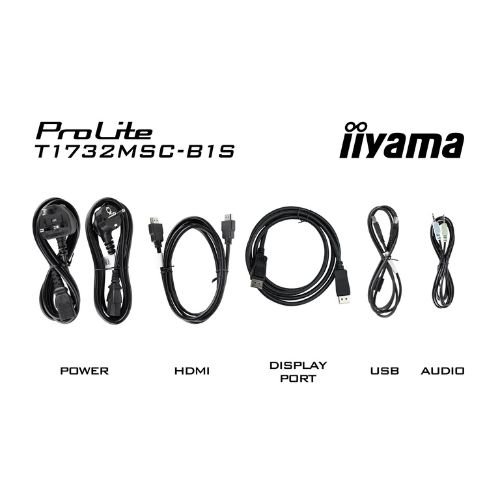

| In the box | Power cable, USB (touch), HDMI (and/or DP, depending on market), cable management cover, user guide start |
| Compliance | CE, RoHS, ErP, WEEE, REACH, UKCA • Kensington-lock ready |
“The 5:4 format and 10-touch PCAP make the T1732MSC-B1S a robust standard for POS: clear, reliable and easy to use.”
Benefits at a glance
- Convenient digital signatures thanks to +90° / –5° tilt.
- Precise 10-point touch with fast response and easy-to-clean surface.
- Easy integration: HDMI/DP/VGA + USB touch (HID).
- Flexible mounting: desk, wall or arm – VESA 100×100.
- Safe in public spaces: OSD lock, built-in speakers, hidden wiring.
Frequently asked questions (FAQ)
1) Does it require a touch driver?
No. It works HID plug-and-play on Windows, Linux and Android.
2) Can I use gloves?
Yes, thin (latex) gloves are supported, along with capacitive stylus and finger.
3) Can it be wall-mounted?
Yes, via VESA 100×100 mm (wall, arm, stand).
4) Why is 5:4 suitable for POS?
It offers more height for lists/tables, requiring less scrolling.
5) Does it have speakers?
Yes, for basic multimedia and notifications; there is also a 3.5 mm audio-out.
6) What is its power consumption?
Typically ≈10–15 W, efficient for extended daily use.
7) Can I lock the menu in public spaces?
Yes, via OSD key-lock (button/port lock).
8) What cables are included?
Usually power, USB (touch) and HDMI; in some markets also DisplayPort.
