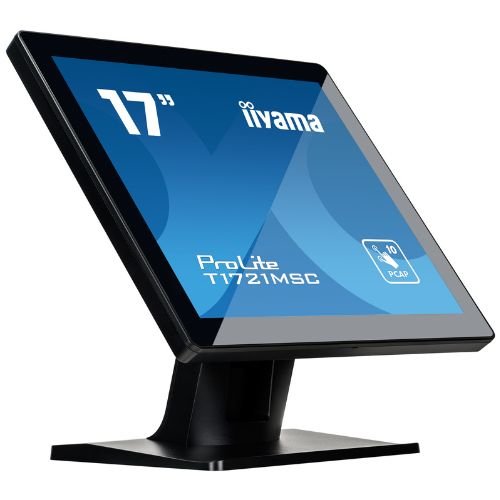

Touchscreen monitor 17″ SXGA 10 Touch PCAP, TN, HDMI/VGA – iiyama T1721MSC-B2
434,39 € incl. VAT
IIYAMA T1721MSC-B2 17″ touchscreen monitor with 10 touch points and PCAP technology. Edge-to-edge glass design, HDMI/VGA connectivity, ideal for retail, point of sale and commercial applications.
IIYAMA ProLite T1721MSC-B2 – 17” 5:4, PCAP 10-touch Touch Monitor, 7H edge-to-edge glass, IPX3 (front), Wide Tilt Stand
iiyama ProLite T1721MSC-B2 is a 17” (5:4, 1280×1024) touch monitor built for POS/retail, reception, public counters, and HMI applications. PCAP 10-touch technology provides precise response and natural gestures, while edge-to-edge glass with 7H hardness protects the screen and maintains clarity. The solid base with tiltable stand (70° up / 10° down) facilitates signatures and interactions at the counter, the OSD buttons on the back can be locked, and the temporary touch disable for cleaning function helps with quick maintenance. Connectivity is simple: HDMI + VGA for video, USB for touch, 2×2 W speakers and audio-out.
Why choose T1721MSC-B2
- PCAP 10-touch: smartphone-level precision and speed, compatible with finger, capacitive stylus and latex glove.
- Public space construction: edge-to-edge, 1.5 mm, 7H glass, IPX3 front, OSD key-lock and cleaning mode (temporary touch off).

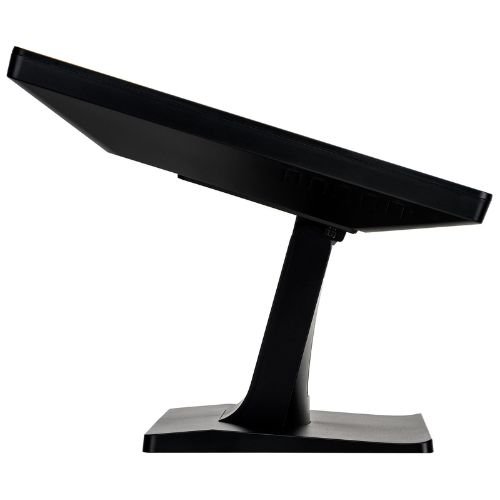

- Front-desk ergonomics: tilt 70°/-10°, excellent stability on the counter.
- Easy integration: HDMI + VGA, USB touch (HID), VESA 100×100 and cable management.
- Comfort & reliability: Blue Light Reducer, MTBF 50,000 h and low consumption 20 W typical.
Recommended scenarios
- Retail & POS: cash register, signatures, forms, customer loyalty.
- Reception & public services: check-in/out, info-desk, quick questionnaires.
- Industrial & HMI: control panels, virtual buttons, alarm visualization.
- Museums & expo: robust info-kiosk, easy to clean.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite T1721MSC-B2 |
| Panel / Image | 17” (43 cm) • TN • 1280×1024 (5:4) • panel brightness 250 cd/m² • 230 cd/m² with touch • transmittance 85% • contrast 1000:1 • response time 5 ms (BTB) • viewing angles 170°/160° (R/L 85°/85°, U/D 80°/80°) • 16.7 million colors • viewable area 338 × 270.5 mm • pixel pitch 0.264 mm • matte black finish |
| Touch (PCAP) | 10 points (HID) • methods: capacitive stylus, finger, glove (latex) • USB interface |
| Glass & Protection | Edge-to-edge, 1.5 mm thickness, 7H hardness • IPX3 (front) |
| Inputs / Outputs | HDMI ×1 • VGA ×1 • Audio-out 3.5 mm ×1 • USB (touch) ×1 • HDCP: Yes |
| Audio | Speakers 2 × 2 W |

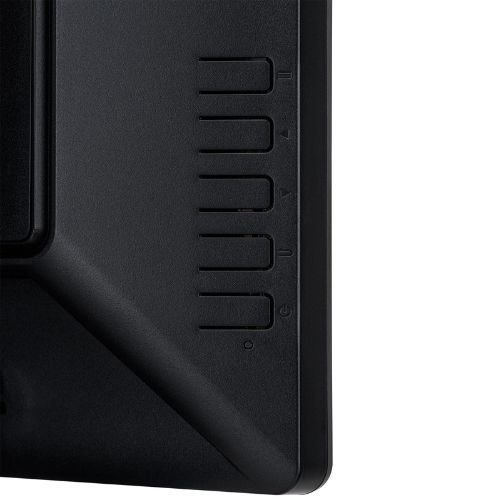

| OSD & Control | Buttons on the back (Menu, Up/Left/Auto, Down/Right, Return/Exit, Power) • OSD key-lock • touch disable function for cleaning • OSD languages: EN, DE, FR, ES, IT, CN, JP • DDC/CI, Plug&Play DDC2B |
Ergonomics & Mounting| Tilt: +70° / –10° • VESA 100×100 mm • cable-management | |
| Reliability | MTBF 50,000 h |
| Power & Consumption | External power supply, DC 12 V • consumption 20 W typical, 1.5 W stand-by, 0.3 W off |
| Dimensions & Weight | 392.5 × 364 × 198 mm (W × H × D) • box 537 × 500 × 172 mm • 4.4 kg net / 5.8 kg gross |

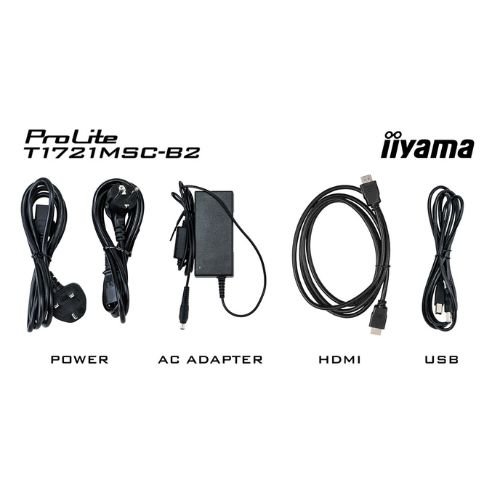

| In the package | Cables: power, USB, HDMI • AC adapter, mylar sheet (VESA) • startup & safety guide |
| Compliance & Energy | CE, RoHS, ErP, WEEE, cULus, REACH, UKCA • Energy Class E (EU 2017/1369) • REACH SVHC: Lead >0.1% • EAN 4948570120659 |
“Edge-to-edge PCAP 10-touch in a 5:4 format – exactly what you need for POS and public counters, with fast cleaning and stable stand.”
Benefits at a glance
- Precise 10-point touch and durable glass surface 7H.
- Excellent ergonomics at the counter: tilt 70°/-10°, comfortable signatures.
- Clean setup: HDMI + VGA, USB touch, integrated speakers.
- Safe for the public: IPX3 front, OSD key-lock, touch-off for cleaning.
- Reliable & efficient: 20 W typical, MTBF 50,000 h, Blue Light Reducer.
Frequently Asked Questions (FAQ)
1) Does it require a touch driver?
It works as HID plug-and-play on Windows and Linux (details in the driver file).
2) Can it be used with gloves?
Yes, with latex glove, but also with capacitive stylus or finger.
3) Can I lock the OSD menu?
Yes, there is OSD key-lock to prevent unauthorized access.
4) Does it have a cleaning mode?
Yes, the touch can be temporarily disabled for sanitization.
5) Is it wall mountable?
Yes, via VESA 100×100 mm (wall/arm/VESA stand).
6) What video ports does it have?
HDMI and VGA, plus USB for touch function and audio-out 3.5 mm.
7) What is the typical consumption?
Approx. 20 W, with 1.5 W in standby.
8) Is it suitable for heavy use?
Yes, it is designed for 24/7 projects with MTBF 50,000 h.
