Touchscreen monitor 17″ SXGA 10 Touch PCAP, AG, TN, HDMI/DP/VGA – iiyama T1732MSC-B1SAG
563,86 € incl. VAT
IIYAMA T1732MSC-B1SAG 17″ touchscreen monitor with 10 touch points, PCAP technology and Anti-Glare treatment. Durable screen with edge-to-edge glass, ideal for retail, POS and commercial applications.
IIYAMA ProLite T1732MSC-B1SAG – 17” 5:4, PCAP 10-touch touch monitor, edge-to-edge anti-glare glass, IP54 (front) – ideal for POS, front-desk & HMI
iiyama ProLite T1732MSC-B1SAG is a 17” (5:4, 1280×1024) touch monitor with PCAP 10-touch technology, designed for POS/retail, receptions, public counters, ticketing and HMI applications. The edge-to-edge glass with anti-glare (AG) coating reduces reflections and is easy to clean, and the glass surface protects the panel and maintains image clarity. The robust stand offers +90° / –5° tilt, perfect for digital signatures at the counter, and IP54 (front) makes it suitable for public spaces. Connectivity is complete: HDMI + DisplayPort + VGA, USB for touch (HID), integrated speakers and audio-out.
Why choose T1732MSC-B1SAG
- Smartphone-like touch: 10-point PCAP with fast response, works with finger, capacitive stylus and glove (latex).
- Edge-to-edge glass with AG-coating: less glare, less marks, easy cleaning.
- Safe in public spaces: IP54 front, OSD key-lock and touch-off function for cleaning.

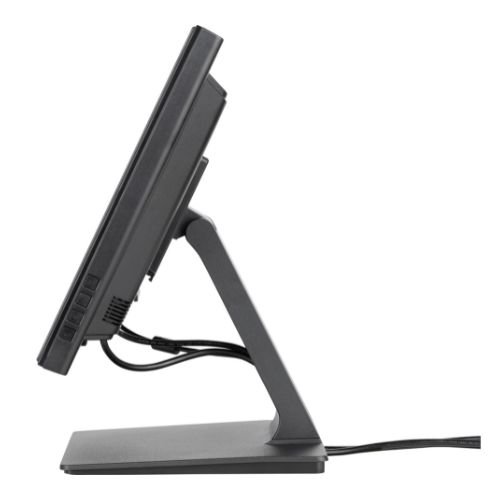

- Front-desk ergonomics: tilt +90°/–5° for convenient digital signature.
- Easy integration: HDMI/DP/VGA + USB touch (HID), VESA 100×100, cable management.
Recommended scenarios
- Retail & POS: checkout, signatures, forms, promotions/loyalty.
- Reception & hospitality: check-in/out, info-desk, wayfinding.
- Public services & HMI: public relations counters, ticketing, control panels.
- Museums & expo: info-kiosk in high traffic areas.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite T1732MSC-B1SAG |
| Panel / Image | 17” (43 cm) • TN LED • 1280×1024 (5:4) • panel brightness 250 cd/m² • 215 cd/m² with touch • transmittance 85% • contrast 1000:1 (with touch) • response time 5 ms (BTB) • viewing angles 170°/160° (R/L 85°/85°, U/D 80°/80°) • 16.7 mil. colors • viewable area 338 × 270.5 mm • pixel pitch 0.264 mm • matte black finish |
Touch (PCAP)| 10 points (HID) • methods: capacitive stylus, finger, glove (latex) • USB interface | |
| Glass & Finish | Edge-to-edge, protective glass with AG-coating (anti-glare) |

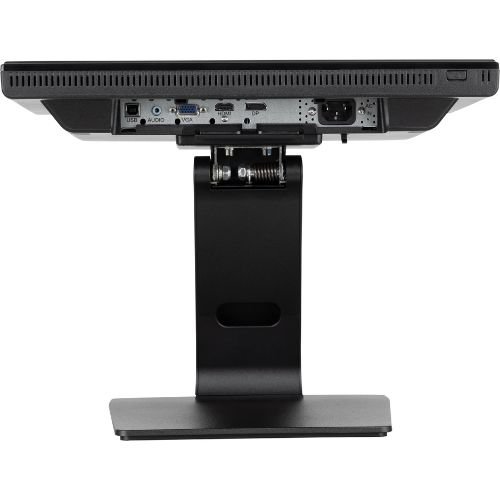

| Inputs / Outputs | VGA ×1 • HDMI ×1 • DisplayPort ×1 • Audio-in 3.5 mm ×1 • Audio-out / speakers 2×1 W • HDCP: Yes |
| Security & OSD | IP54 (front) • OSD key-lock • buttons: Menu, Up/Brightness, Down/Mute, Select, Power • OSD languages: EN, DE, FR, ES, IT, CN, JP • DDC/CI, Plug&Play DDC2B • temporary touch disable function for cleaning |
| Ergonomics & Mounting | Tilt: +90° / –5° • VESA 100×100 mm • cable-management |
| Power & Consumption | Internal power supply, AC 100–240 V, 50/60 Hz • consumption 20 W typical, 1.5 W stand-by, 0.3 W off |
| Dimensions & Weight | 387 × 378 × 240 mm (W × H × D) • weight ≈4.9–5 kg |
| In the package | Cables: power, USB, HDMI, Audio, DisplayPort • cable cover • guides |
| Conformity & Energy | CE, EAC, RoHS, ErP, WEEE, cULus, VCCI, REACH, UKCA • Energy Class E • REACH SVHC: Lead >0.1% • EAN 4948570122158 |
“PCAP 10-touch + anti-glare glass = fast, clear and easy-to-sanitize experience, perfect for front-desk.”
Benefits at a glance
- Precise 10-point touch for signatures and POS flows.
- AG-coating: low reflections, fewer marks, fast cleaning.
- Full connectivity and USB touch plug-and-play.
- IP54 front + OSD lock – safe for public spaces.
- Stand with +90° tilt – excellent ergonomics at the counter.
Frequently Asked Questions (FAQ)
1) Does it require a touch driver?
Works as HID plug-and-play on Windows and Linux (details in the driver file).
2) Can I use gloves?
Yes, latex gloves are supported, as is capacitive stylus.
3) Can the OSD menu be locked?
Yes, via OSD key-lock, useful in public spaces.
4) Does it have a cleaning mode?
Yes, the touch can be temporarily disabled for sanitization.
5) Is it wall mountable?
Yes, via VESA 100×100 mm (wall/arm/stand).
6) What video ports are available?
HDMI, DisplayPort and VGA, plus USB for touch and audio-in/out.
7) What is the typical power consumption?
Approx. 20 W, with 1.5 W in standby.
8) Is it suitable for heavy use?
Yes, it is designed for continuous use in high traffic environments.
