Touchscreen monitor 15″ XGA 10 Touch PCAP, TN, HDMI/VGA – iiyama T1521MSC-B2
323,84 € 314,52 € incl. TVA
IIYAMA T1521MSC-B2 15” touchscreen monitor with 10 touch points and PCAP technology, durable edge-to-edge glass, HDMI/VGA connectivity, ideal for retail, POS and commercial applications.
Only logged in customers who have purchased this product may write a review.
Product description

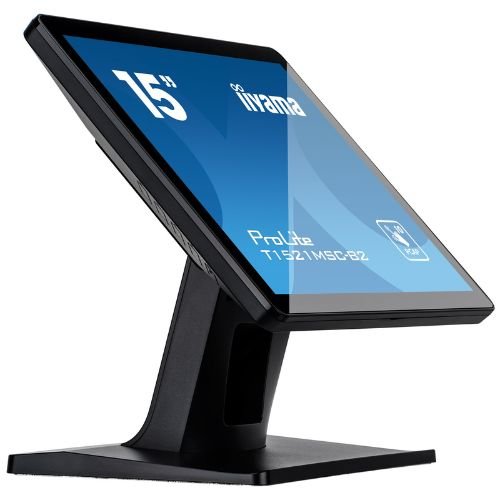

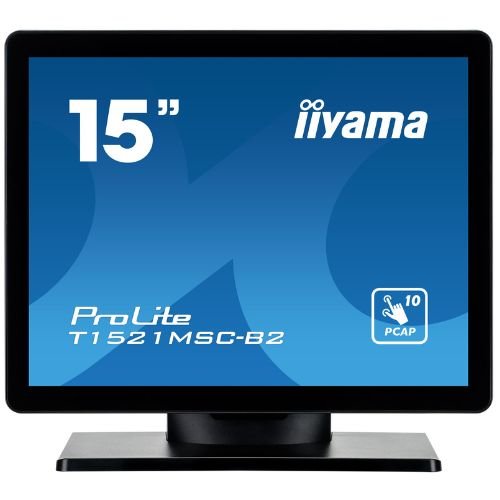

IIYAMA ProLite T1521MSC-B2 – 15” 4:3, PCAP 10-touch Touch Monitor, 7H edge-to-edge glass, IPX3 (front), wide tilt stand
iiyama ProLite T1521MSC-B2 is a 15” (4:3, 1024×768) touch monitor designed for POS/retail, receptions, public counters, ticketing and HMI. PCAP 10-touch technology offers fast response and natural gestures, while edge-to-edge glass (1.2 mm, 7H hardness) ensures scratch resistance and an easy-to-clean surface. OSD lock button and temporary touch disable for cleaning make it safe in public spaces. The solid base allows +70° / –10° tilt, ideal for digital signatures. Connectivity is simple and universal: HDMI + VGA for video, USB for touch, plus 2×2 W speakers.
Why choose T1521MSC-B2
- Smartphone-like touch: 10-point PCAP with finger, capacitive stylus and latex glove support.
- Built for the public: edge-to-edge 7H glass, IPX3 front, OSD key-lock and touch-off for cleaning.
- Front-desk ergonomics: tilt +70° / –10°, excellent stability on the counter.
- Hassle-free integration: HDMI + VGA, USB touch (HID), VESA 75×75 and cable management.
- Efficient & reliable: 16 W typical, DC 12 V power supply, complete accessories in the box.
Recommended scenarios
- Retail & POS: cash register, digital signatures, forms, loyalty.
- Reception & public services: check-in/out, info-desk, questionnaires.
- Industrial & HMI: control panels, virtual buttons, alarm visualization.
- Museums & expo: easy to clean and protect info-kiosk.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite T1521MSC-B2 |
| Panel / Image | 15” (38 cm) • TN LED • 1024×768 @60 Hz (4:3) • panel brightness 370 cd/m² • touch brightness 325 cd/m² • transmittance 88% • contrast 800:1 • response time 8 ms (BTB) • viewing angles 170°/160° (R/L 85°/85°, U/D 80°/80°) • 16.7 million colors • viewable area 304 × 228 mm • pixel pitch 0.297 mm • black, matte |
| Touch (PCAP) | 10 points (HID, on supported OS) • methods: capacitive stylus, finger, glove (latex) • USB interface |
| Glass & Protection | Edge-to-edge, 1.2 mm thickness, 7H hardness • IPX3 (front) |

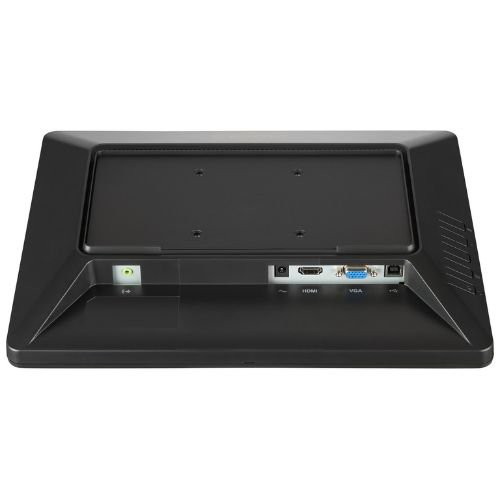

| Inputs / Outputs | HDMI ×1 • VGA ×1 • Audio-out 3.5 mm ×1 • 2×2 speakers W |

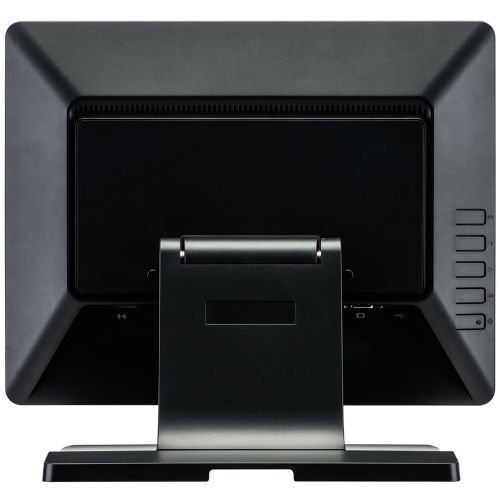

| OSD & Control | OSD key-lock • buttons on the back (Menu, Up/Left/Auto, Down/Right, Return/Exit, Power) • touch disable for cleaning function • OSD in EN, DE, FR, ES, IT, RU, JP, NL • DDC/CI, Plug&Play DDC2B |

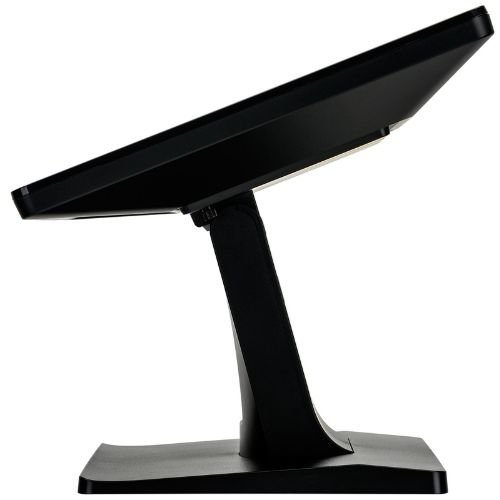

| Ergonomics & Mounting | Tilt: +70° / –10° • VESA 75×75 mm • cable management |
| Power & Consumption | External adapter, DC 12 V • consumption 16 W typical, 1.5 W stand-by, 0.5 W off |

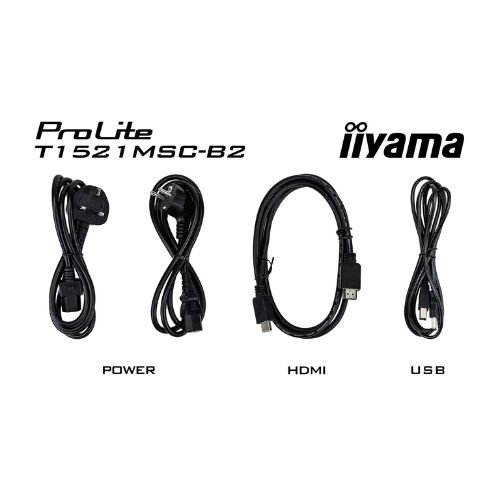

| Accessories in the package | Cables: power, USB, HDMI • AC adapter, mylar sheet (VESA) • quick guide & safety guide |
| Compliance & Energy | CE, EAC, RoHS, ErP, WEEE, cULus, REACH, UKCA • Energy Class E (EU 2017/1369) • REACH SVHC: Lead >0.1% |
| Dimensions & Weight | 340.5 × 308 × 198 mm (W × H × D) • 3.5 kg net |
| Code EAN | 4948570120642 |
“PCAP 10-touch + 7H edge-to-edge glass = fast, clear and easy-to-sanitize experience – perfect for front-desk.”
Benefits at a glance
- Precise 10-point touch with latex glove support.
- Durability: 7H glass, IPX3 front, hidden and lockable OSD buttons.
- Easy setup: HDMI + VGA, USB touch, 2×2 speakers W.
- Counter ergonomics: tilt +70°/–10° for comfortable signatures.
- Low power consumption: 16 W typical, 12 V power supply.
Frequently asked questions (FAQ)
1) Does it require a touch driver?
HID plug-and-play works on Windows and Linux (details in the driver file).
2) Can I use gloves?
Yes, latex glove is supported, in addition to finger and capacitive stylus.
3) Can the OSD menu be locked?
Yes, via OSD key-lock – useful in public spaces.
4) Does it have a cleaning mode?
Yes, the touch can be temporarily disabled for sanitization.
5) Is it wall-mountable?
Yes, it is VESA 75×75 mm compatible (wall/arm/stand).
6) What video ports does it have?
HDMI and VGA, plus USB for touch function and audio-out 3.5 mm.
7) What is the typical consumption?
Approx. 16 W, with 1.5 W in standby.
8) Is it suitable for heavy use?
Yes, it is designed for continuous use in traffic environments, with 7H glass and protective features.
