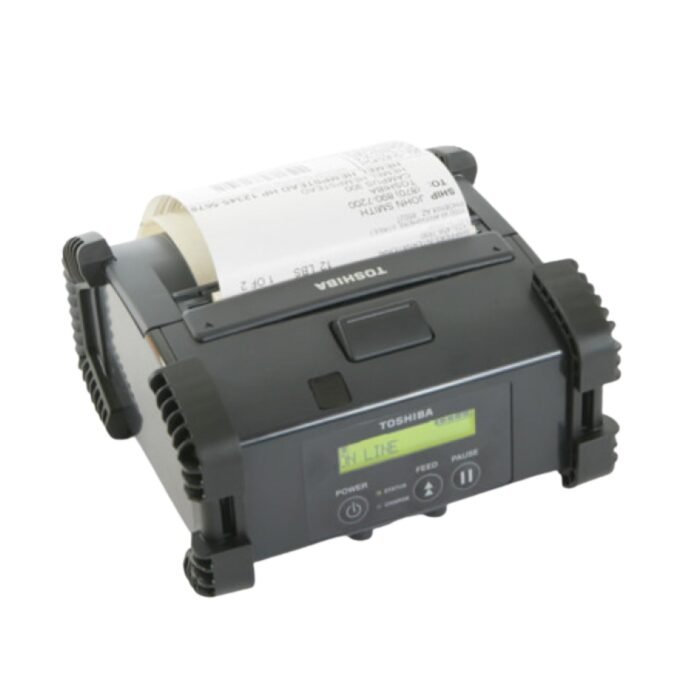

Toshiba B-EP4DL 4″ mobile printer

Toshiba B-EP4DL – 4-inch mobile direct thermal printer for professional labeling

The Toshiba B-EP4DL is a mobile label printer designed for businesses that need true mobility, fast printing and easy integration into modern workflows. The series combines a compact and durable body with an efficient print engine, capable of producing large format labels directly at the point of work. It is a suitable solution for retail, logistics, courier, field service, healthcare, utilities and mobile commercial activities where speed and flexibility matter.

The Toshiba B-EP4DL uses Direct Thermal technology and a Flat Head printhead with a resolution of 203 dpi . The printer achieves a speed of up to 105 mm/s and a maximum print width of 104 mm , making it suitable for logistics labels, shelf labels, receipts, delivery documents and other mobile applications where a larger print area is required. The top media loading design and large roll capacity contribute to productivity and reduce downtime.

• 4-inch direct thermal mobile printer
• Resolution 203 dpi
• Maximum printing width 104 mm
• Maximum speed up to 4.13 ips
• 2-line LCD for operator information
• Multiple interfaces: IrDA, USB, serial, Bluetooth and WLAN, depending on model
• Support for labels, receipts and coreless media
• Suitable for mobile workflows

An important advantage of the B-EP4DL series is its flexibility in integration. The official documentation indicates support for languages and modes such as TPCL, BCI, ESC/POS , and ZPL II and CPCL emulations, respectively, which simplifies implementation in existing applications. The illuminated LCD screen, status indicator, audible warning and dedicated keys for Feed and Pause give the user clear control in the field, even in demanding work scenarios.

The printer has 8 MB Flash ROM and 16 MB SRAM memory, weighs approximately 0.86 kg and has a 14.8 V, 2600 mAh Li-ion battery. It supports reflective and transmissive sensors, prints numerous 1D and 2D codes and allows working in Batch or Peel-off mode. For companies that want a 4-inch mobile printer, robust and easy to connect, the Toshiba B-EP4DL is a great choice between mobility, productivity and software compatibility.

Main advantages

• Compact format and robust construction for mobile use
• Fast labeling directly at the worksite
• Large media capacity for increased productivity
• Illuminated LCD for easy operation
• Easy integration via USB, Bluetooth, WLAN or serial, depending on model
• Suitable for retail, logistics, field, healthcare and transport

Technical specifications

The difference between Near-Edge and Flat Head

The Toshiba B-EP4DL uses a Flat Head printhead. In general, Flat Head technology is appreciated for its good compatibility with various materials, cost-effectiveness and stable operation in direct thermal or standard thermal transfer applications. In comparison, Near-Edge technology is more common in applications oriented towards high speeds and better ribbon efficiency. For a mobile direct thermal printer like the B-EP4DL, choosing a Flat Head printhead is appropriate because it offers good clarity, reliability and predictable behavior in daily use.
