Thermal Printer TSC TDP-225

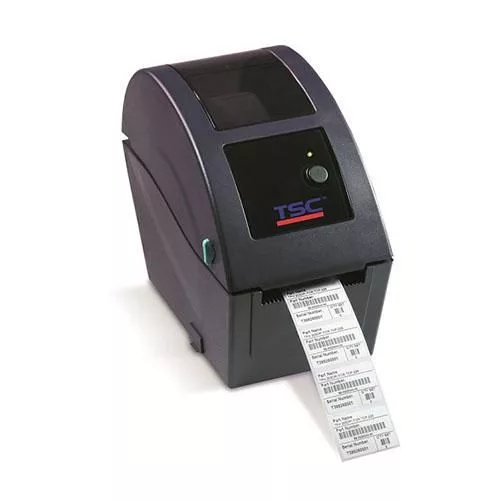

TSC TDP-225 Direct Thermal Printer – Compact, Fast and Reliable

TSC TDP-225 is a compact and affordable 2-inch direct thermal printer designed for efficient labeling in retail, healthcare, small office or industrial applications. With a print speed of up to 152 mm/s and an ergonomic clamshell design, the TDP-225 delivers excellent performance in a small space.

Key Technical Specifications

• Resolution: 203 dpi (8 dots/mm)
• Print speed: up to 6 ips (152 mm/s)
• Maximum print width: 2.13″ (54 mm)
• Maximum print length: 90″ (2,286 mm)
• Print method: Direct thermal (no ribbon required)

Features Key

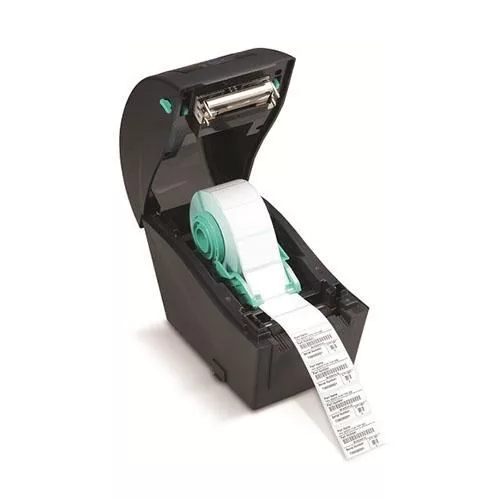

• Clamshell design for easy label loading
• Adjustable sensor for gap, black mark and notch
• Connectivity: USB 2.0, Ethernet, RS-232 and USB Host for keyboard/scanner
• Internal memory: 4 MB Flash, 8 MB SDRAM, expandable with microSD up to 4 GB
• Optional LCD for easy monitoring of print status
• Compatibility with Zebra®, Eltron® languages and other industry standards

Recommended Applications

• Retail and point of sale (POS)
• Labels for medical offices and pharmacies
• Shelf and product labeling
• Inventory and asset management
• Shipping packages and documents
• Identification bracelets, jewelry labels
