SQUIX S1000-300 CAB applicator 5976087
3.206,50 € 3.097,48 € incl. VAT
SQUIX S1000-300 label applicator CAB 5976087. Label width 25 – 176 mm and heights 25 – 200 mm. Compatible with SQUIX 2, SQUIX 4.3, SQUIX 4, SQUIX 4.3 M, SQUIX 4 M, SQUIX 6.3 printers. Application speed approx. 25 labels/minute.

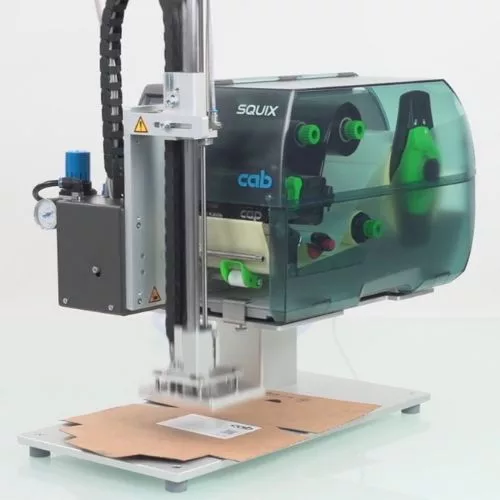

SQUIX S1000-300 Label Applicator CAB 5976087
Apply labels in real time with the SQUIX S1000-300 Applicator. Attached to a SQUIX peel-off printer, the S1000 is a cost-effective solution, whether used semi-automatically or vertically integrated in a production plant. Labels are applied to an object by a stroke cylinder.
Specifications:
- Operated with: SQUIX 2, SQUIX 4.3, SQUIX 4, SQUIX 4.3 M, SQUIX 4 M, SQUIX 6.3 printers
- Cylinder stroke: 300 mm
- Weight (without packaging): 5 kg
- Power consumption (max): 15 W
- Cushion stroke: 114 mm
- Compressed air pressure: 4.5 bar
- Performance: Approximately 25 labels/minute (calculated at a stroke of 100 mm, using 100 mm high labels and a print speed of 100 mm/s)
Features:
- Long life cycles: The ball bearing guide rails are wear-resistant.
- Two different application levels: By providing different stroke lengths for the cylinder, labels can be applied at different heights on an object.
- Compressed air adjustment: Micro filters prevent contamination. Decompression keeps the quality of label applications consistently high.
- Reliable processes: The support air, inlet air and stroke speeds can all be set. The pressing force can be reduced to less than 10N (1kg) in sensitive operations. Cleaning the inlet pipes after each label application prevents contamination.
- Wide range of sizes: Labels with widths between 25 mm and 176 mm and heights between 25 mm and 200 mm can be applied.
Universal pads: Universal pads with suction holes punched according to the label size are covered with foil.
Standard pads: Manufactured according to the label size.
Blow-on pads: Suitable for pressure-sensitive objects.
Roll-on pads: Labels are fed under a roller after printing and then rolled onto an object.
Apply labels accurately and efficiently using the SQUIX S1000-220 Label Applicator and select the right pad for your labeling needs.
| Applicator | S1000-220 | S1000-300 | S1000-400 |
|---|---|---|---|
| Operated with | SQUIX 2, SQUIX 4.3, SQUIX 4, SQUIX 4.3 M, SQUIX 4 M, SQUIX 6.3 | ||
| Cylinder stroke | 220 mm | 300 mm | 400 mm |
| Weight (excluding packaging) | 4.5 kg | 5 kg | 5 kg |
| Power consumption | 15 W max. | ||
| The stroke of a buffer calculated under one unit | 64 mm | 144 mm | 244 mm |
| Compressed air | 4.5 bar | ||
| Performance1) | approx. 25 labels/minute | ||
- calculated at a stroke of 100 mm under one unit, using 100 mm high labels and a print speed of 100 mm/s
Universal pad
The perforated inlet holes arranged in a grid are covered with foil. Piercing according to the size of a tag
| A1021 | A1021 | ||
|---|---|---|---|
| Operated with | SQUIX 2 | SQUIX 4.3
SQUIX 4 |
SQUIX 4.3
SQUIX 4 |
Label width | 25 – 63 mm | 25 – 70 mm | 25 – 90 mm |
| Label height | 25 – 60 mm | 25 – 90 mm | Product Surface | flat |
| Product Height | flexible | ||
| Product Condition When a Label is Applied | at Rest | ||
Standard Pad
They are manufactured according to the size of a labels.
| A1021 | |||
|---|---|---|---|
| Operated with | SQUIX 2 | SQUIX 4.3
SQUIX 4 |
SQUIX 6.3 |
| Label width | 25 – 63 mm | 50 – 176 mm | |
| Label height | 25 – 200 mm | ||
| Product surface | flat | ||
| Product Height | flexible | ||
| Product status when a label is applied | at rest | ||
Universal spring-mounted pads, spring-mounted pads
Universal spring-mounted pads
The spring pitch allows labels to be applied even on inclined surfaces. The drilled inlet holes arranged in a grid are covered with foil. Piercing depending on the size of a label
Pads, spring-mounted
The spring pitch allows labels to be applied even on inclined surfaces. They are manufactured to the size of a label.
| Universal | Standard | |||
|---|---|---|---|---|
| A1321 | A1321 | A1321 | ||
| Operated with | SQUIX 4.3, SQUIX 4 | SQUIX 4.3, SQUIX 4 | SQUIX 4.3, SQUIX 4 | SQUIX 6.3 |
| Label width | 25 – 116 mm | 25 – 116 mm | 25 – 116 mm | 50 – 176 mm | Label height | 25 – 102 mm | 25 – 152 mm | 25 – 200 mm |
| Product surface | flat | |||
| Product Height | flexible | |||
| Product condition when a label is applied | at rest | |||
Blown pads
Suitable for pressure-sensitive items. Pad located approx. 10 mm before an article.
| A2021 | |||
|---|---|---|---|
| Operated with | SQUIX 2 | SQUIX 4.3, SQUIX 4 | SQUIX 6.3 mm |
| Width tag | 25 – 63 mm | 25 – 116 mm | upon request |
| Label height | 25 – 100 mm | ||
| Product surface | flat | ||
| flexible | |||
| Product State When a Label is Applied | Standing or Moving | ||
Roll-on Pads
| Roll-on pad | A1411 | |
|---|---|---|
| Operated with | SQUIX 4.3, SQUIX 4 | SQUIX 6.3 |
| Label width | 25 – 116 | 50 – 176 |
| Label height | 80 – 200 | |
| Product surface | flat | |
| Product height | flexible | |
| Product condition at the time a label is applied label | moving | |
