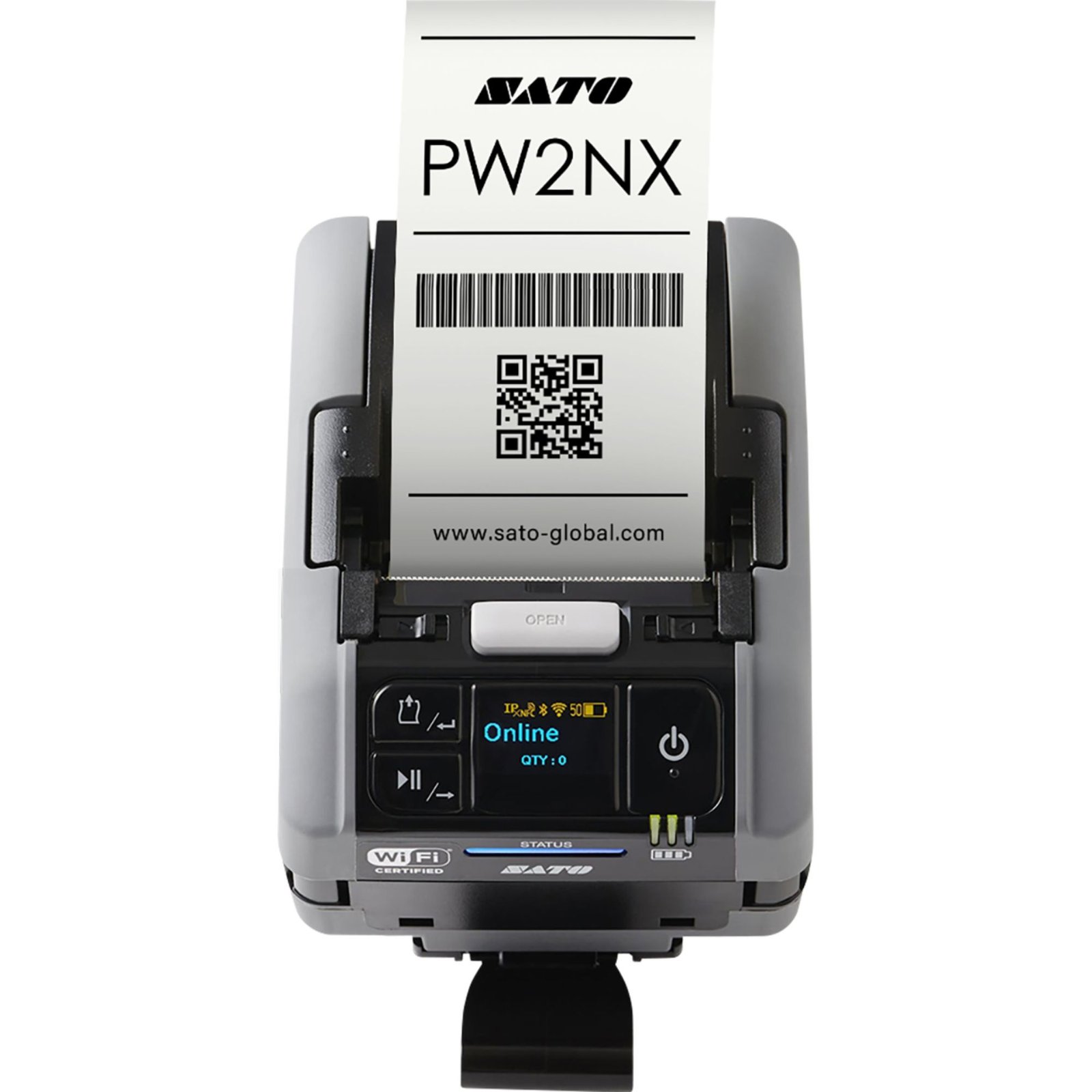

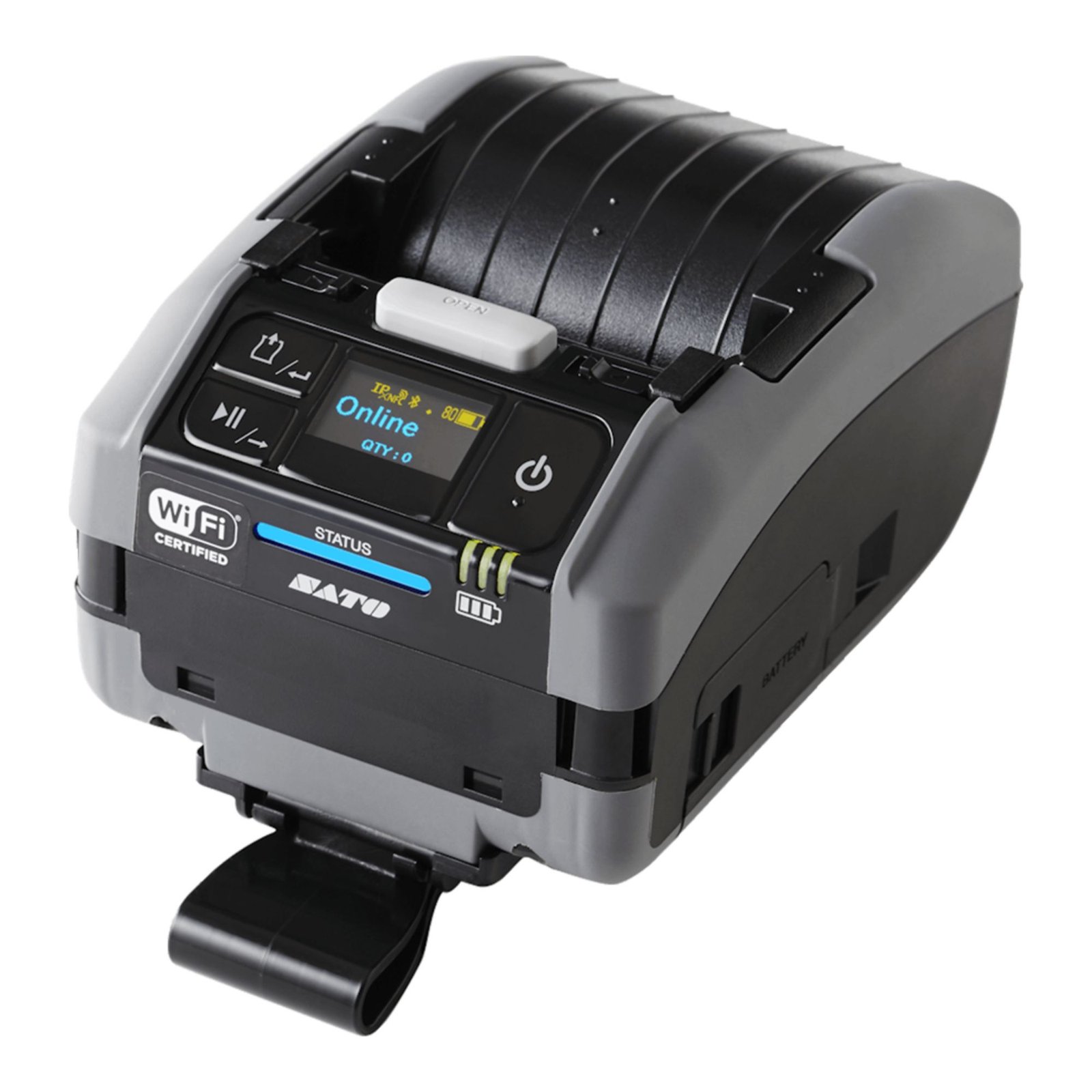

SATO PW2NX Series Mobile Label Printer

SATO PW2NX Series Mobile Label Printer – Compact 2-inch power, wherever you need it

The SATO PW2NX Series is a 2-inch mobile label printer designed for high performance in dynamic environments such as retail, transportation & logistics, manufacturing, automotive, food and healthcare . Compact, lightweight and extremely durable, this direct thermal printer offers high print speed and advanced connectivity, making it the ideal partner for mobile applications.

Think of the PW2NX as a “print office in your pocket”: small on the outside, but powerful on the inside. Whether you’re printing shelf labels, medical sample labels, or AWBs in the field, the PW2NX delivers fast, clear, and reliable.

Superior performance in an ultra-compact format

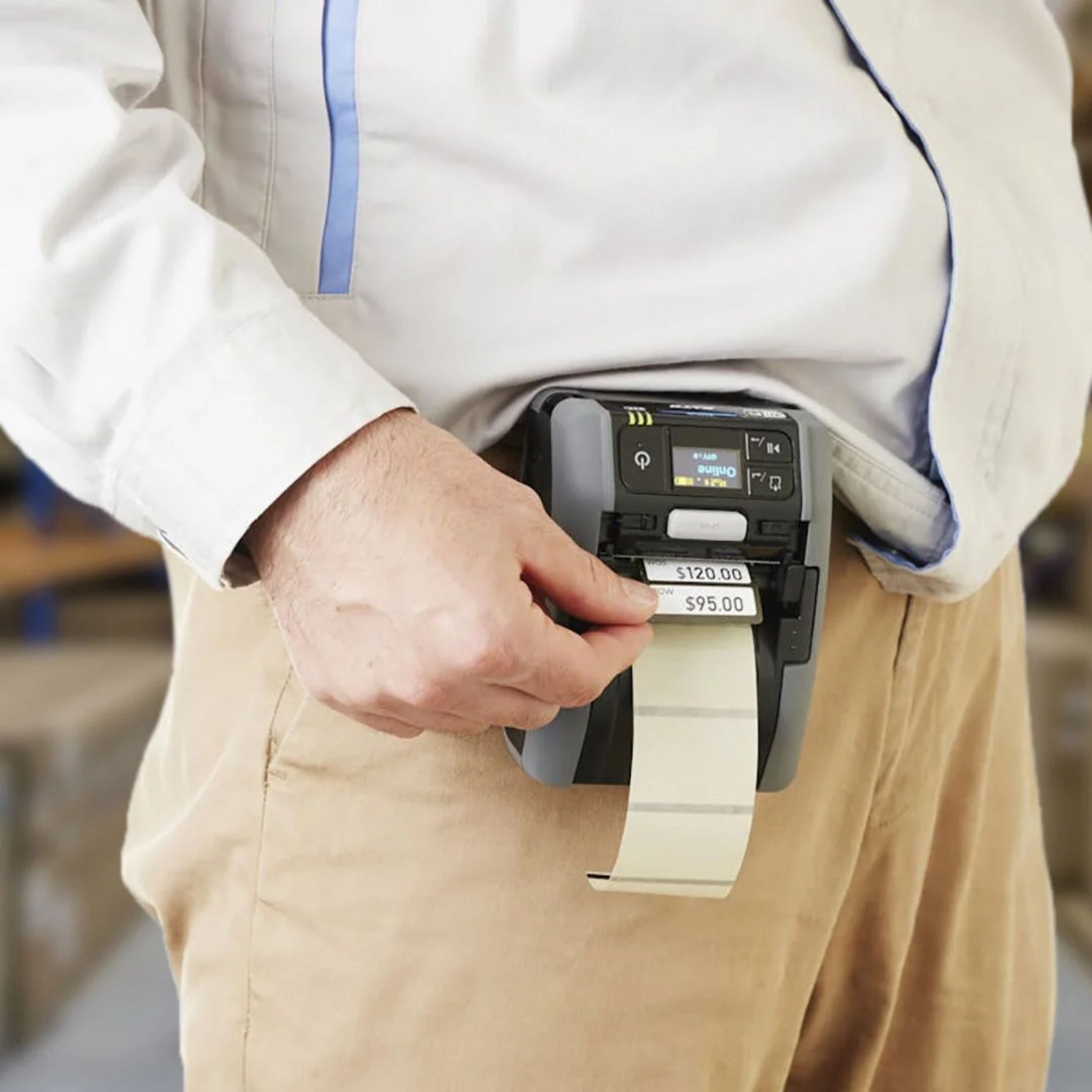

The PW2NX series is designed for users who need uncompromising mobility. Weighing just 437.8g (including battery) and with a compact size, the printer can be comfortably carried all day long.

• Printing method: Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Maximum printing width: 55 mm
• Maximum speed: 152 mm/sec (6 ips)

Thanks to intelligent print control, the PW2NX delivers fast and consistent results without loss of quality, even in intensive working conditions.

Advanced connectivity for quick integration

In a connected world, flexibility is essential. SATO PW2NX offers multiple interface options for easy integration into existing infrastructure.

• USB 2.0 High Speed
• Bluetooth 3.0 (with iOS support)
• Bluetooth 3.0 EDR
• Wireless LAN IEEE 802.11a/b/g/n (WiFi model)
• NFC for quick pairing

NFC enables quick pairing with mobile devices, reducing setup time to a minimum. In addition, support for multiple emulation languages (SBPL, SPOS, SCPCL, SZPL, SDPL, SIPL, STPCL) ensures compatibility with various existing systems.

Built for tough environments

The PW2NX is not only compact, but also robust. Its polycarbonate housing with shock-absorbing elastomer and drop testing up to 2.1 meters on all sides make it suitable for intensive use in the field.

• Drop test: 2.1 m
• Operating temperature: -15°C to 50°C (WLAN model: 0°C – 50°C)
• Humidity: up to 85% RH (non-condensing)

Whether you’re working in a busy warehouse or a hospital, the PW2NX remains a reliable tool.

Smart battery for extended battery life

Equipped with a 7.2V, 1950 mAh Li-Ion Smart battery, the printer offers intelligent charging and usage technology, overcharge and overdischarge protection, as well as programmable power-saving functions.

It’s the kind of equipment that “knows” when to conserve energy so you can focus on your work.

Linerless label support – efficiency and economy

PW2NX is compatible with linerless media as standard, reducing the cost and waste generated by silicone liner. In addition, it supports:

• Die-cut labels on a roll
• Continuous average
• Receipt paper

Gap (Transmissive) and I-Mark (Reflective) sensors ensure accurate environmental detection.

Multiple applications in various industries

Versatility is one of the greatest strengths of the SATO PW2NX series. It is ideal for:

• Retail: shelf labels, markdowns, promotional prices
• Transport & Logistics: AWB labels, last-mile deliveries
• Healthcare: sample labels, patient bracelets
• Production: product identification labels
• Food industry: rapid labeling at the point of sale

There is also the PW2mNX model, developed specifically for CEP (Courier, Express, Parcel) applications.

Smart features and easy management

PW2NX includes advanced self-diagnosis and management features:

• Printhead check
• Battery check
• Paper out detection
• Lid open detection
• Data error checking
• SNMP support and configuration via Web Browser (WiFi model)

Compatibility with SATO Online Services (SOS) allows for optimized monitoring and technical support.

Available accessories

For a perfect adaptation to your work environment, multiple accessories are available:

• Additional battery

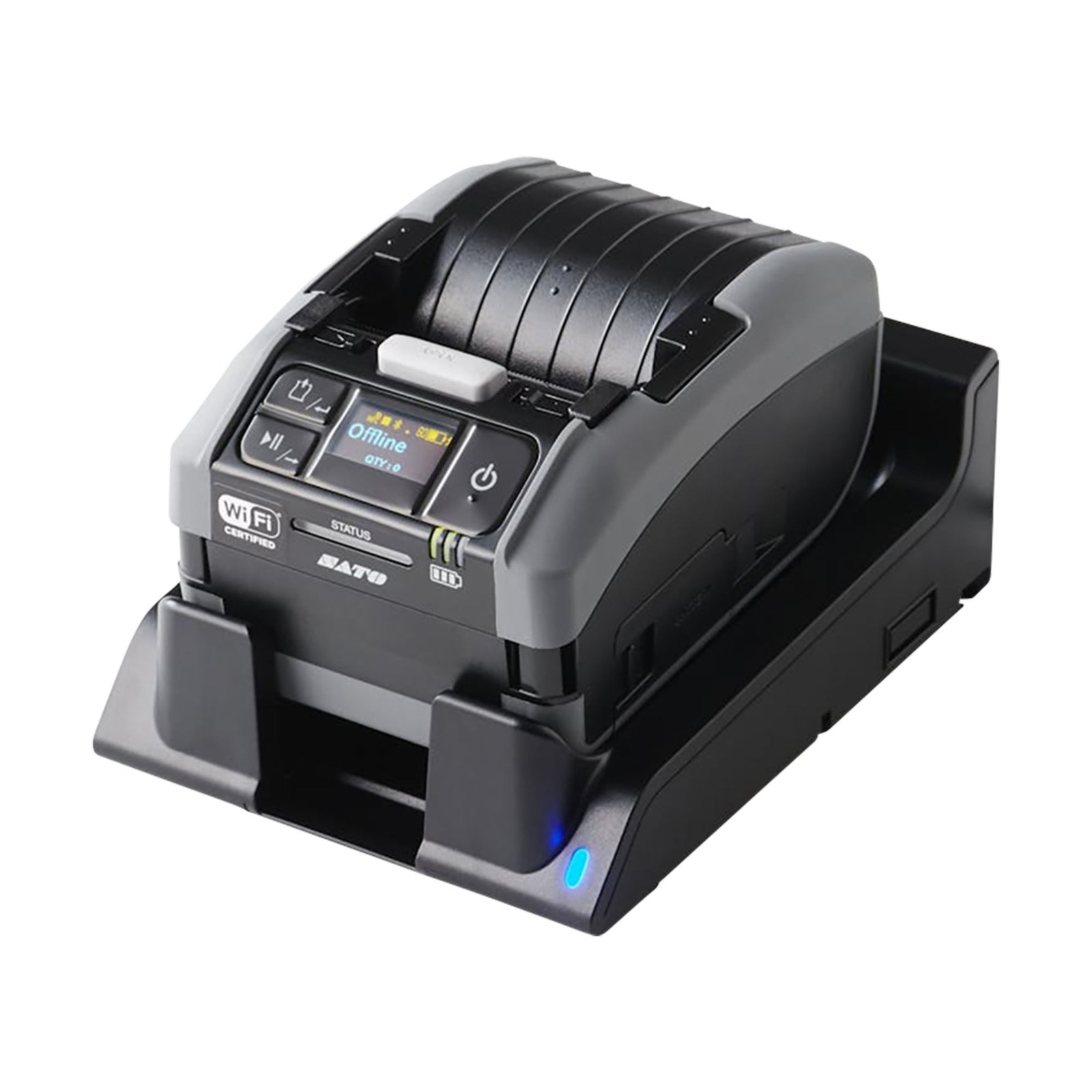

• Battery charger (1 bay / 4 bay)
• AC adapter
• Car charging cable
• Standard and heavy-duty covers
• Shoulder strap, clips, wireless kit

Technical specifications SATO PW2NX Series

Why choose SATO PW2NX from AutoID?

At AutoID , we offer professional labeling solutions tailored to the needs of every industry. The SATO PW2NX series is the ideal choice if you need:

• Total mobility
• Reliability in difficult conditions
• Quick integration into existing systems
• Optimized costs through linerless support

Contact the AutoID team for personalized consulting and an offer tailored to your application.
