Printer XTP 604 Basic Infeed Novexx N104353

XTP 604 Basic with Basic Infeed Stacker – N104353

N104353 is the XTP 604 Basic configuration with Basic Infeed Stacker, designed for industrial printing of individual tags, cards, tickets, price labels and blister cards. The solution is suitable for companies looking for a printer dedicated to individual materials, with controlled handling and clear integration into production, labeling or packaging flows.

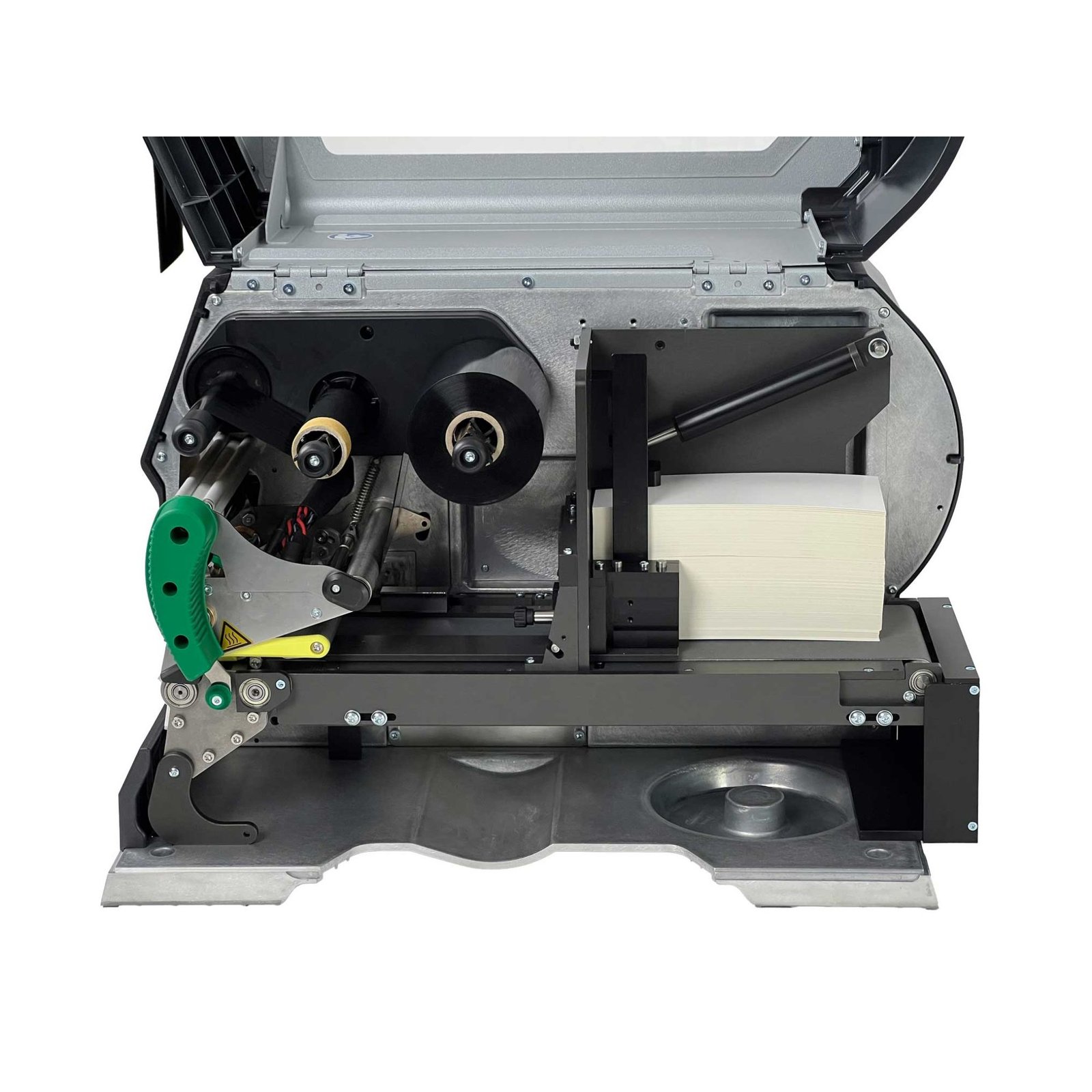

A key advantage of the XTP 604 platform is the smooth, flat transport of tags from feed to output. This helps maintain media stability during printing and eliminates the need for cutting specific to roll media. In addition, the flexible tag holder can be quickly adjusted for different sizes, making the equipment easier to use in a variety of applications.

The Basic variant with Basic Infeed Stacker is suitable for standard workflows, where efficient feeding and clear operation of the equipment are sought. The printer includes an industrial display with 4 keys and color illumination, intuitive navigation and automatic settings for printhead parameters, such as pressure and contrast. Loading of tags and ribbon is simple, and maintenance is carried out without tools.

Technically, the XTP 604 prints by thermal transfer or direct thermal, at 300 dpi, on widths up to 106 mm. It accepts tags with standard widths between 30 and 70 mm, optionally up to 96 mm, lengths between 55 and 175 mm and materials up to 240 g/m² and 280 µm. The ribbon capacity of up to 1100 m supports efficient operation in industrial environments. If it is necessary to connect an Automatic outfeed stacker, the Peripheral version must be chosen.

• Basic configuration with Basic Infeed Stacker
• Printing for individual tags, cards and tickets
• Flat material transport from infeed to outfeed
• Print resolution 300 dpi
• Industrial display with 4 keys and color illumination
• Easy loading of tags and ribbon
• Tool-free maintenance

Video Presentation
