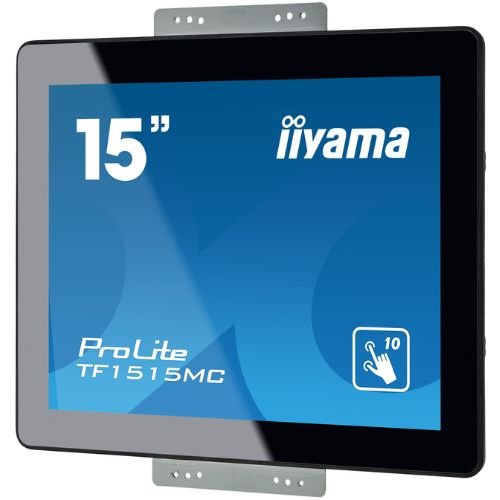

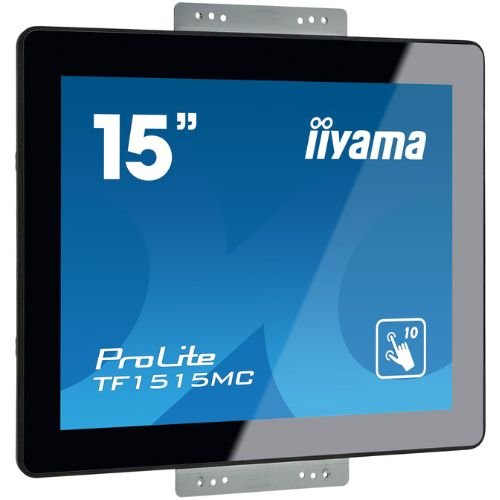

Open Frame Touchscreen Monitor 15″ PCAP Touch 10 points, XGA, Touch through glass – iiyama TF1515MC-B2
500,94 € incl. VAT
The IIYAMA TF1515MC-B2 is a 15” Open Frame touchscreen monitor with 10-point PCAP technology and through-glass touch function, ideal for kiosks, industrial applications and public spaces with heavy traffic.
IIYAMA ProLite TF1515MC-B2 – 15” PCAP Touchscreen, Open Frame, Through-Glass, for retail, kiosk & wayfinding
iiyama ProLite TF1515MC-B2 is a 15” (4:3, XGA) open-frame touchscreen, with 10-touch PCAP, edge-to-edge Anti-Glare glass and Through-Glass (up to 6 mm) – ideal for self-service kiosks, interactive display, POS/retail, hospitality and info-kiosk. Foam seal (8 mm) ensures a tight integration into furniture, and the IP65 front protects against dust and splashes. With free orientation (landscape/portrait/face-up), RS-232C control, and HDMI/DP/VGA inputs, the TF1515MC-B2 is a robust solution for 24/7 projects in public spaces.
Why choose TF1515MC-B2
- Through-Glass 6 mm: turns shop windows into interactive surfaces without sacrificing protection.
- Open Frame + Foam Seal: clean, tight mounting (8 mm) and IP65 front protection.
- PCAP 10-touch: precise touch with finger, stylus or glove (latex), anti-fingerprint.
- Complete connectivity: HDMI, DisplayPort, VGA, USB touch, Audio out; RS-232C for control.
- Reliable for 24/7: Designed for continuous use in public environments, with OSD key-lock.
Recommended scenarios
- Retail & QSR: self-order, digital menus, interactive “through-glass” displays.
- Wayfinding & public: interactive maps, info-kiosk, ticketing.
- Corporate & institutions: self-check counters, feedback terminals, control rooms.
Technical specifications
| Section | Specifications |
|---|---|
| Model | ProLite TF1515MC-B2 |
| Panel / Image | 15” (38 cm), TN LED, 1024×768 (XGA, 4:3), 350 cd/m² brightness (315 cd/m² with touch), 90% transmittance, 800:1 contrast (with touch), 8 ms BTB response time, 160°/150° viewing angles (L/R 80°/80°, U/D 75°/75°), 16.2 million colors (6-bit + Hi-FRC), H-sync 31.4–60 kHz, 304.1 × 228.1 mm (12 × 9”) viewable area, 0.297 mm pixel pitch, 0.297 mm bezel black. |
| Touch (PCAP) | Projected capacitive, 10 points (HID on supported OS), methods: stylus / finger / glove (latex), USB interface, Through-Glass up to 6 mm, anti-fingerprint layer. |
| Inputs / Outputs & Control | VGA ×1, HDMI ×1, DisplayPort ×1, Audio out 3.5 mm ×1, HDCP: yes, RS-232C, OSD key-lock, buttons: Menu, Up/Brightness, Down/Contrast, Select, Power; OSD: picture/advanced/OSD/options. |
| Features & Protection | Through-Glass, Foam seal 8 mm, 7H glass, ball-drop 60950, IP65 frontal, Plug&Play DDC2B. |

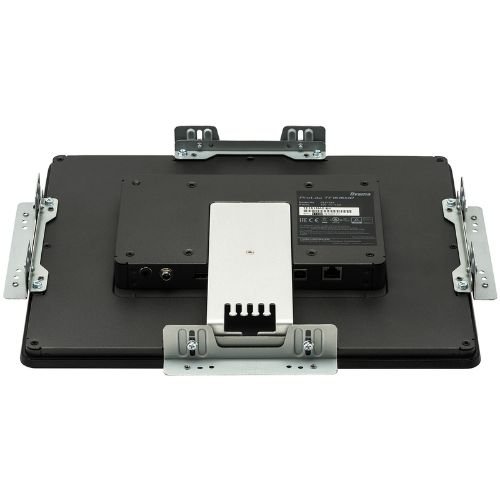

| Orientation & Montage | Landscape / Portrait / Face-up; VESA 100×100 mm; optional bracket OMK2-1 for external mounting. |
| Power & Power | External power supply, DC 12 V; power consumption 16 W typical, 1.2 W standby. |
| Environment | Operation 0…40 °C, storage −20…60 °C. |
| Dimensions & Weight | 364 × 291 × 41.5 mm; box 460 × 470 × 175 mm; net weight 2.9 kg, gross weight 4.6 kg. |
| In the box | Cables: power, USB, HDMI, DP; AC adapter, External control pad, Touch Panel Driver (CD-ROM); Quick start guide & Safety guide. |
| Compliance / Miscellaneous | CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH; Energy class E (EU 2017/1369); REACH SVHC: Pb >0.1%; EAN 4948570116751. |
Benefits at a glance
- Interactive through glass (6 mm) – perfect for display cases & public spaces.
- Sealed integration – open-frame with foam seal and IP65 front.
- Wide compatibility – HDMI/DP/VGA + USB touch, RS-232C control.
- Low total cost – cables and accessories included, low consumption (16 W).
- Non-stop – designed for 24/7 continuous operation.
Frequently Asked Questions (FAQ)
1) Does touch work through glass?
Yes, Through-Glass up to 6 mm preserves the tactile response behind a glass plate.
2) Is it suitable for public spaces?
Yes, the front is IP65, 7H glass and ball-drop 60950 tested for durability.
3) What video connections does it have?
HDMI, DisplayPort and VGA, plus Audio out and USB for touch connection.
4) What mounting does it support?
VESA 100×100 and optional OMK2-1 for external mounting; landscape/portrait/face-up orientation.
5) What’s in the box?
AC adapter, power/USB/HDMI/DP cables, external control pad, CD with drivers and guides.
