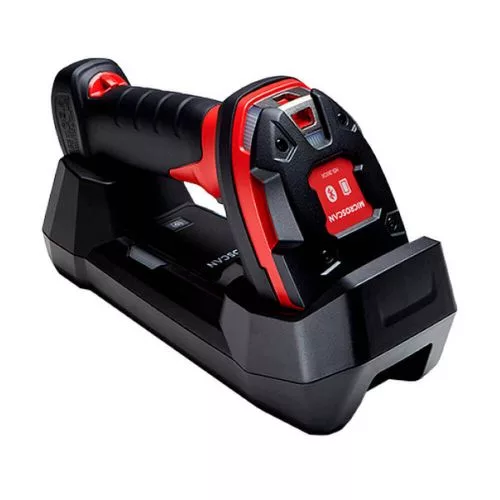

Omron HS-360X DPM Barcode Reader

Omron HS-360X DPM Barcode Reader

The HS-360X “Ultra-Rugged” handheld barcode reader is specifically designed to decode industrial Direct Marked (DPM) barcodes, and is built from the ground up to set new standards for durability and performance. With excellent out-of-the-box performance, most applications require no configuration. Its new WebLinkPC interface makes configuration for more complex applications intuitive and easy.

Key Features:

• Ultra-Durable: The HS-360X withstands multiple drops from 2.4 meters and 5,000 tumbles.
• X-Mode Decoding Algorithms: This reader features industry-leading X-Mode decoding algorithms to consistently read directly marked codes, even damaged or distorted ones, with high decode rates.
• Performance Indicators: In addition to audible signaling, visual and vibration indicators provide silent confirmation of successful reads, ideal for noisy or sensitive environments.
• Tolerance to Industrial Fluids and Chemicals: Many industrial fluids and chemicals are tolerated by this reader.
• Charging Station: The charging station is IP65 rated and transmits and receives data via Bluetooth Class 1 or 2 at distances up to 91 meters. It also includes a Wi-Fi-friendly mode and a report button to locate the reader in case of loss.
• Ease of Use – WebLinkPC: Reader configuration and deployment are done via a browser-based interface and device discovery.

Specifications:

Supported 2D Code Symbologies: QR Code, Data Matrix (ECC200), Micro QR Code, Aztec Code
Code Types: 2D and 1D
IP Rating: IP65/67
Mounting: Manual
Optics: Standard Density
Reading Distance: 147mm
Sensor: SXGA, 1.2 MP, Monochrome
Power Supply: 5 VDC
Type: Industrial Handheld Barcode Reader
Supported Barcode Symbologies: PDF417, MicroPDF417, GS1 Databar (Composite and Stacked), Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode
Connection: RS-232*, USB, Bluetooth

HS-360X Accessories:

The reader is shipped with a battery and the HS-360X Wireless Reader Quick Start Guide.

Mandatory accessories to order include:

Interface cable for the appropriate interface.
Universal power supply, if required by the interface.
