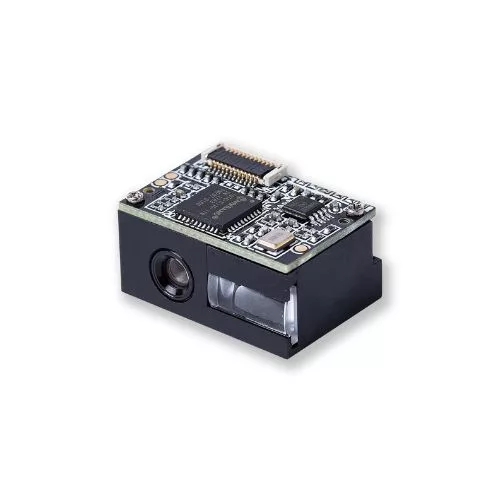

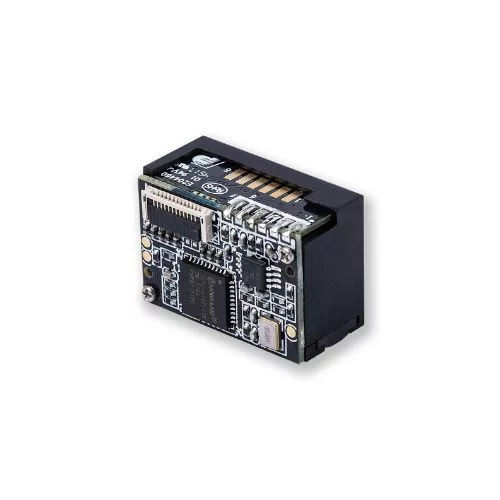

Newland EM1399-LD 1D CCD Scanning Module

The Newland EM1399-LD is a ultra-high-performance 1D CCD scanning engine, designed to be integrated into space-constrained equipment, offering outstanding performance at minimal power consumption. With a resolution of ≥3mil, a 2500 pixel sensor and scanning at 300 frames/second, this module is ideal for fast and precise applications in retail, self-service equipment or industrial automation.

Integrates advanced 5th generation UIMG® technology, allowing decoding even damaged or poor quality codes. With TTL232 and USB interface, it is easy to connect to most embedded systems.

Key Features

• All-in-one design: sensor + decoding board in an extremely compact format (21.5×15.3×11.9 mm)

• Ultra-fast scanning: up to 300 scans/second

• High resolution (≥3mil) and low contrast sensitivity (20%)

• UIMG® Tech Gen. 5: Efficient decoding of weak or damaged codes

• Low power consumption: only 86 mW in typical operation

• Extended compatibility: support for all major 1D symbologies

Technical Specifications

• Sensor: 2500-pixel CCD

• Illumination and Aiming: Red LED (612–624 nm)

• Minimum resolution: ≥3mil

• Code scanning: EAN, UPC, Code 39, Code 128, Codabar, ITF-14, MSI-Plessey, etc.

• Depth of field (EAN-13): 50mm–450mm

• Scanning angles: Roll 360°, Pitch ±55°, Skew ±60°

• Speed scan: 300 scans/second

• Interfaces: TTL-232, USB

• Dimensions: 21.5×15.3×11.9 mm

• Weight: 5g

• Voltage: 3.3VDC ±5%

• Certifications: CE, FCC, RoHS
