Monitor Touchscreen 21.5″ Full HD Open Frame, PCAP, Optical Bonded – iiyama TF2238MSC-B1

Recommended scenarios:

• Retail & QSR: self-order, digital shelf labels, interactive catalogs & promotions.
• Reception & hospitality: check-in/out, wayfinding, self-service info counters.
• Public/education: questionnaires, ticketing, compact info-kiosk.
• Expo & museums: touch screens in showcases or thematic-interactive stands.

Technical specifications

weight ≈4–6 kg

Section	Specifications
Model	ProLite TF2238MSC-B1
Panel / Image	21.5” (54.6 cm) • IPS • 1920×1080 (Full HD, 16:9) • panel brightness ≈250–300 cd/m² (slightly lower with touch layer) • contrast ≈1000:1 • response time ≈5 ms GTG • viewing angles 178°/178° • colors 16.7 million • Anti-Glare finish
Touch (PCAP)	10 points (HID) • methods: finger, capacitive stylus, thin glove • palm-rejection • USB interface • edge-to-edge glass, anti-fingerprint
Inputs / Outputs	HDMI ×1 • DisplayPort ×1 • VGA ×1 • USB (type B) ×1 for touch • Audio-out 3.5 mm ×1 • integrated speakers (for basic signaling)
OSD & Control	OSD key-lock, DDC/CI, preset picture modes, volume, button lock
Orientation & Mounting	Landscape / Portrait / Face-up • Open-Frame format for integration into the housing • VESA 100×100 mm (mounting options, according to the project)
Operation & Reliability	Designed for 24/7 in public spaces; typical operating temperature 0…40 °C
Power & Consumption	AC 100–240 V via adapter / internal source (depending on configuration) • typical consumption ≈15–20 W
Dimensions & Weight	Visible diagonal ≈476 × 268 mm • slim profile for concealed mounting • ≈4–6 kg

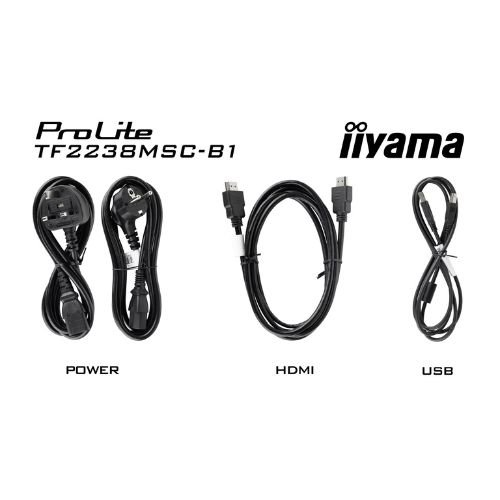

In the package	Power cable, USB touch, HDMI; elements for cable management; start guide
Conformity	CE, RoHS, ErP, WEEE, REACH, UKCA • ready Kensington-lock

“Open-frame + PCAP 10-touch = clean integrations, “smartphone-like” experience and reliability for continuous use.”

Benefits at a glance

• Discreet integration into furniture/totem, with edge-to-edge toughened glass.
• Precise touch and natural gestures, ideal for self-service.
• Universal connectivity (HDMI/DP/VGA + USB touch) for various PCs and players.
• Designed 24/7, ready for public spaces with traffic.

Frequently Asked Questions (FAQ)

1) Is it suitable for mounting in a totem?

Yes, the open-frame format is designed specifically for integration into a totem or furniture.

2) Does it work with gloves?

Yes, with thin gloves; also with capacitive stylus and with your finger.

3) What PC/OS is compatible?

Any PC/SoC with HDMI/DP/VGA; the touch works HID plug-and-play on Windows, Android, Linux.

4) Can be used in portrait?

Yes, supports landscape/portrait/face-up, depending on the project.

5) Is it protected for public spaces?

Yes, OSD key-lock and easy-to-clean anti-glare/anti-fingerprint glass.

6) What sound does it offer?

Integrated speakers for audio signaling, plus audio-out for external solutions.

7) What is the typical consumption?

Around 15–20 W, efficient for continuous operation.

8) Is there a VESA mount?

Yes, VESA 100×100 mm, useful for jigs or service.
