Mobile label printer PW4NX 203dpi SATO WWPW4100N

SATO PW4NX 203dpi Mobile Label Printer WWPW4100N

The SATO PW4NX WWPW4100N is a 4 inch (104 mm) direct thermal mobile printer with 203 dpi resolution, equipped as standard with USB, Bluetooth and WLAN . The model includes Dispenser (peel & present) and Belt Clip , making it ready for immediate use in professional applications.

Built for demanding environments, the PW4NX delivers desktop printer performance in a portable, rugged, and smartly connected format.

Fast Performance for Critical Applications

The PW4NX WWPW4100N offers print speeds of up to 152 mm/sec (6 ips) , making it ideal for logistics labels, direct deliveries, shelf labeling or industrial applications.

• Printing method: Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Maximum printing width: 104 mm
• Speed: 51 – 152 mm/s
• Integrated dispenser for peel & present applications

The dispenser allows automatic label peeling for quick and efficient application.

Full Connectivity – USB, Bluetooth and WLAN

The WWPW4100N model is ready for integration into modern IT infrastructures:

• USB 2.0 High Speed
• Bluetooth® 5.0 BLE
• WLAN 802.11 a/b/g/n/ac Dual Band (2.4 GHz & 5 GHz)
• NFC for quick pairing

Compatible with iOS, Android, Windows and Linux , the printer allows remote management via SATO Online Services (SOS) and SOTI.

Robust Design for Industrial Environments

• Drop resistance: 2.14 meters
• Protection: IP54 (dust and splash water)
• Tumbling test: 1000 cycles at 0.5 m
• Weight: 1.44 kg (with battery)

It is the ideal solution for warehouses, loading docks, retail or external deliveries.

14.4V Smart Li-Ion Battery – Extended Runtime

• 14.4V / 2500mAh
• Power 35–36 Wh
• Smart monitoring via SOS
• Consistent performance even at low battery level

The smart battery ensures stable operation over extended shifts.

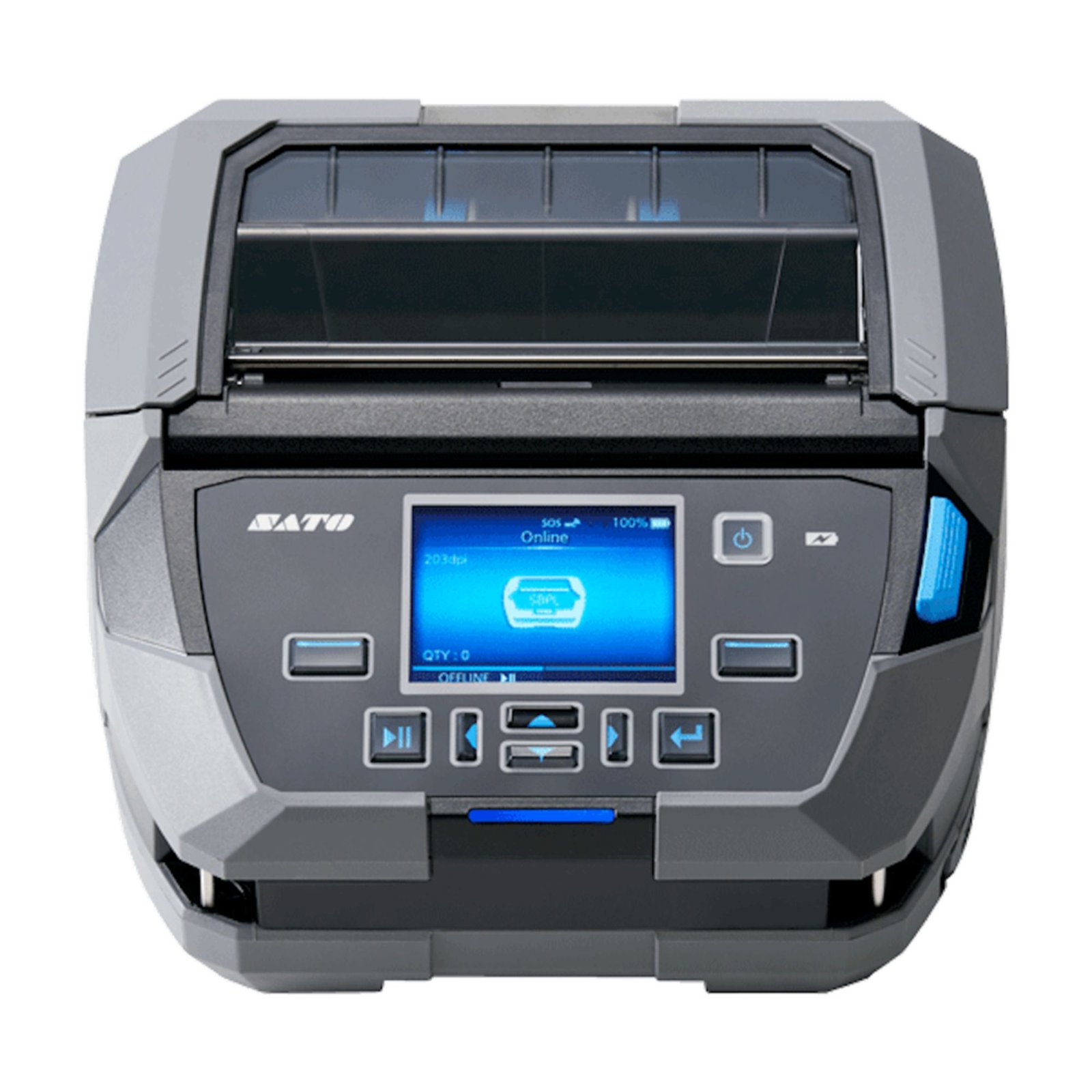

2.4” Color Display with Integrated Tutorials

The 2.4 inch TFT color screen offers:

• Intuitive interface
• Explicit error messages
• Video tutorials for loading labels and replacing components

Reduce training time and increase operator efficiency.

SATO AEP Technology – Standalone Printing

With SATO Application Enabled Printing (AEP) , the PW4NX can operate without a PC:

• Direct connection to scanner, keyboard or scale
• Independent printing
• Network and cloud integration
• Operational flow customization

AEP reduces IT costs and simplifies labeling processes.

Technical Specifications – SATO PW4NX WWPW4100N

Recommended Applications

• Transport & Logistics
• Retail
• Healthcare
• output
• Direct Store Delivery

Why choose SATO PW4NX from AutoID?

AutoID offers technical consulting, original accessories and support for the complete integration of mobile labeling solutions into your existing infrastructure.
