Label printers Carl Valentin Vita II 103/8 9048101A
1.196,57 € 1.107,39 € incl. VAT
Carl Valentin Vita II 103/8, 200 dpi, 200 mm/s, width 104 mm. Reliable solution for high-speed labeling.

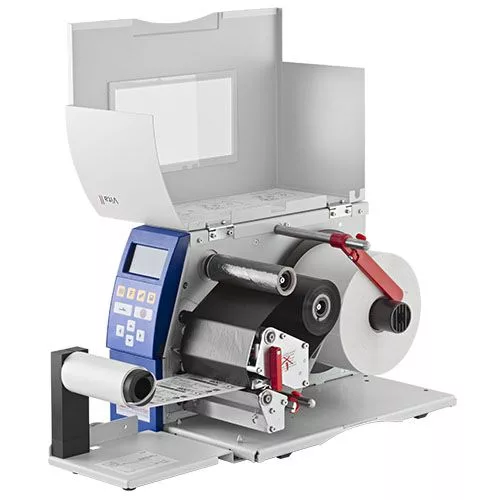

Thermal Label Printer Carl Valentin Vita II 103/8 – Code 9048101A
Carl Valentin Vita II 103/8 is an industrial label printer designed for intensive use, offering high printing speed, high reliability and versatility in production, logistics and warehousing. With a resolution of 200 dpi and a speed of up to 200 mm/s, the printer delivers clear and precise labels for barcodes, logistics labels, packaging or product labels.
The robust construction, stable electronic platform, extensive memory and advanced connectivity make the Vita II 103/8 an ideal choice for companies that need a continuous flow of labeling, working in multiple shifts.
Technical specifications – Carl Valentin Vita II 103/8 (9048101A)
| Category | Specifications |
|---|---|
| Printing method | Thermal transfer (Flat Type) |
| Printing resolution | 200 dpi |
| Maximum printing speed | up to at 200 mm/s |
| Print width | 104 mm |
| Label passage width | standard: 116 mm • cutter mode: 112 mm |
| Label width | minimum 12 mm |
| Îlabel height | max. 6000 mm • min. 5 mm (standard) • min. 15 mm (dispenser/cutter mode) |
| Supported materials | paper, cardboard, textiles, synthetic materials |
| Material weight | up to 220 g/m² |
| Max. diameter. label roll | 180 mm (internal unwinder) |
| Roll core diameter | 40 mm (75 mm optional) |
| Winding | inside or outside |
| Label sensor | transmission + bottom reflection (optional ultrasonic photocell) |
| Ribbon | ink inside/outside, Ø max. 80 mm, core 25.4 mm (1”), max. length 450 m, max. width 110 mm |
| Dimensions | 236 × 238 × 374 mm |
| Weight | 11 kg |
| Processor | High Speed 32-bit |
| RAM memory | 16 MB |
| Storage | Compact Flash Card Type I slot |
| RTC Battery | yes – data retention on shutdown |
| Alerts | acoustic error signal |
| Interfaces | RS-232C, Parallel SPP, USB 2.0 Slave, Ethernet 10/100, 2× USB Host |
| WLAN (optional) | 802.11 b/g/n (WEP, WPA, WPA2, EAP) |
| Power supply | 110–230 V AC / 50–60 Hz; consumption 275 VA |
| Operating temperature | 5 – 35 °C |
| Humidity | max. 80% (no condensation) |
| Operation panel | dedicated keys + graphic display 132 × 64 px |
| Default settings | date, time, shifts, 20 languages, network parameters, password, interfaces, emulation |
| Monitoring | stop on ribbon out, label out, head open; extended diagnostic report |
| Fonts | 6 bitmaps, 8 vectorial, 6 proportional; bold, italic, inverted, vertical styles |
| Character sets | Windows 1250–1257, 437, 850, 852, 857, UTF-8; Latin, Cyrillic, Greek, Arabic support optional |
| 1D barcodes | CODABAR, Code 128, Code 2/5, Code 39, EAN, GS1-128, ITF-14, Leitcode, PZN, UPC etc. |
| 2D barcodes | QR, DataMatrix, PDF417, Aztec, GS1 DataMatrix, Maxicode |
| Compatible software | ConfigTool, Loftware, Labelstar Office/LITE, drivers Windows |
Vita II 103/8 – 9048101A is an industrial label printer built for continuous performance. Thanks to thermal transfer technology, the printer produces durable labels that are resistant to abrasion, temperature and harsh environments. It is ideal for companies that need constant labeling at a sustained pace, without compromising on quality.
With a speed of 200 mm/s, the printer can support fast production flows, making it excellent for:
-
logistics and shipping labels
-
product and packaging labels
-
highly accurate 1D and 2D barcodes
-
long labels (up to 6 meters) for special processes
Robust hardware platform, internal memory and expandability via Compact Flash allows the storage of complex label formats, additional fonts and custom configurations.
The extensive connectivity (Serial, Parallel, USB, Ethernet and optional WLAN) ensures fast integration into ERP systems, WMS, automated production lines or industrial labeling software.
The front panel with dedicated keys and clear graphic display offers complete control over printing, and monitoring functions (stop when missing labels/ribbon, detailed diagnostics, usage counters) allow maintaining an efficient and uninterrupted workflow.
Carl Valentin Vita II 103/8 is the ideal choice for companies looking for a reliable, fast, accurate and easy-to-use label printer in demanding industrial environments.
