Label printers Carl Valentin Compa V 162/12 dispenser, rewinder 90.42.410E
3.192,68 € incl. VAT
Carl Valentin Compa V 162/12 with dispenser and rewinder – 300 dpi, large width. Industrial automation without photocell. Available now on AutoID.ro!
Carl Valentin Compa V 162/12 with dispenser and rewinder (without photocell)

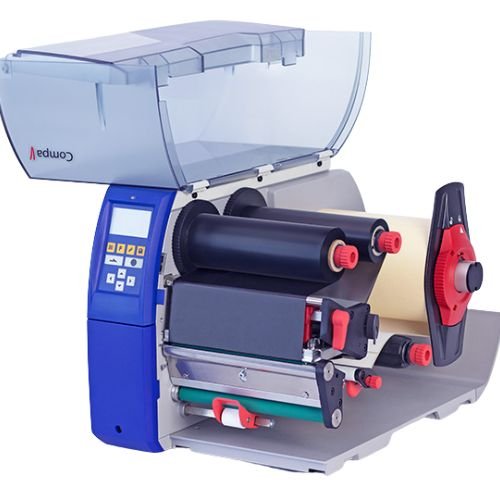

Carl Valentin Compa V 162/12 – with integrated dispenser and rewinder system without photocell is the ultimate model for industrial applications where automatic large-size labeling is essential. This printer combines an impressive print width of 162.6 mm with a resolution of 300 dpi, offering a professional solution for complex and wide labels.
Ideal for high-volume production, large packaging, palletizing or advanced logistics applications, this model allows for complete automation of the label printing and application process, reducing errors and operating time.
„Wide labels, maximum clarity and full automation – &in a single Carl Valentin equipment.”
Technical Specifications – Compa V 162/12 Dispenser + Rewinder (without photocell)
| Specification | Value / Details |
|---|---|
| Product code | 90.42.410E |
| Print resolution | 300 dpi |
| Max. speed. print | 250 mm/s |
| Print width | 162.6 mm |
| Print type | Direct thermal and thermal transfer |
| Dispenser | Yes – without photocell, with automatic label peeling |
| Liner rewind | Yes – internal, automatic |
| Supported materials | Adhesive, continuous labels: paper, cardboard, textiles, plastic |
| Material weight | max. 220 g/m² |
| Label size | Width min. 46 mm, îheight max. 2000 mm |
| Max. diameter label roll | 205 mm / Ø ax 40 mm (compatible 38.1 – 76 mm) |
| Transfer ribbon | max. 600 m, Ø 90 mm, width up to 170 mm |
| Interfaces | RS-232, USB 2.0 Slave, 2 x USB Host, Ethernet 10/100 |
| Processor / RAM | ARM Cortex A8 – 1GHz, 512 MB RAM, SD card slot |
| Display / Operation | 128×64 px graphic LCD, multifunction keys |
| Monitoring functions | Head open, ribbon or labels missing |
| Available fonts | Bitmap, Vector, TrueType – scalable, zoom, rotate |
| 1D / 2D barcodes | QR, DataMatrix, PDF417, Aztec, GS1, Codabar, Code 128, EAN, etc. |
| Compatible software | Labelstar Office, ConfigTool, Loftware, Windows drivers |
| Dimensions / Weight | 312 x 288 x 460 mm / 14 kg |
| Temperature / Humidity | 5 – 35 °C, max. 85% RH (non-condensing) |
| Power supply | 110–240 V AC, 50–60 Hz, power consumption 200 VA |
