Label printer Carl Valentin Vario V 108/12 touch 90.56.211E
2.730,97 € incl. VAT
Carl Valentin Vario V 108/12 Touch – 300 dpi, 108 mm width, 7” display, ideal for large labels, 2D codes and advanced industrial applications.
Carl Valentin Vario V 108/12 – 300 dpi Touch Display
The industrial printer Carl Valentin Vario V 108/12 – 300 dpi with touch display is designed for companies that need fast, clear printing on larger surfaces. With an extended print width of 108.4 mm, this model allows for the production of wide and detailed labels — ideal for logistics, transport, warehousing, industrial labeling, technical production and retail.
The 300 dpi resolution provides excellent quality for 1D/2D barcodes, graphics, pictograms and fine text, and the 7” color touchscreen makes operation extremely intuitive, even in demanding industrial environments.

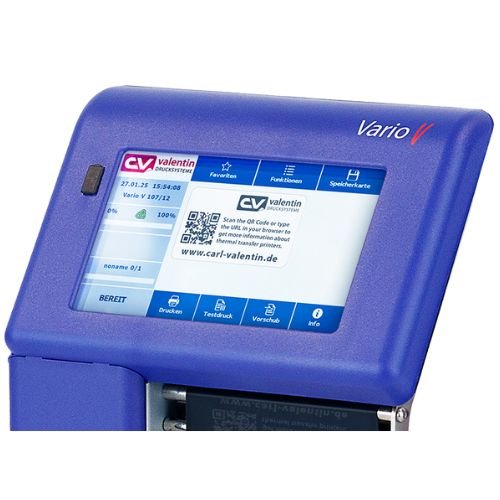

7” color touchscreen – total control and maximum productivity
The 800 × 480 px, offers:
-
instant access to menus and functions,
-
printing shortcuts,
-
clear view of printer status,
-
intuitive navigation between saved jobs,
-
PC-independent operation in many scenarios.
This modern interface reduces training time and increases operator efficiency.
300 dpi quality for detailed labels and 2D codes dense
The 300 dpi resolution allows printing:
-
high density QR and DataMatrix codes,
-
small and clearly defined texts,
-
safety images and pictograms,
-
complex labels used in premium industries (cosmetics, pharma, technical).
The 250 mm/s print speed provides excellent productivity even in high volume flows.
Fast processing for labels complex
Equipped with:
-
TI Sitara ARM Cortex A8 processor – 1 GHz, 512 MB RAM, SD card slot for memory expansion, the printer can handle complex layouts, multiple codes, images and variables without delay. Compatible with a wide range of materials The Vario V 108/12 supports: Paper, cardboard, materials synthetics,
-
textiles,
-
self-adhesive labels, pre-cut or continuous.
Accepts rolls with a diameter of up to 200 mm, and the ribbon can have a length of 450 m, optimal for intensive productions.

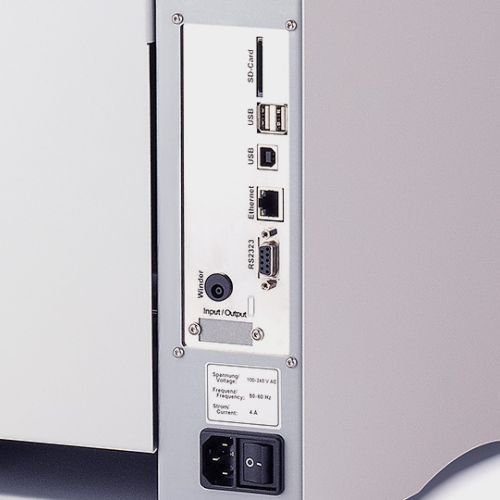

Complete connectivity for industry
The printer includes:
-
RS-232C,
-
USB 2.0 High Speed Slave,
-
Ethernet 10/100 Base T (LPD, DHCP, HTTP, FTP, RawIP),
-
2 × USB Host for keyboard, scanner, USB stick.
It is ideal for integration în:
-
ERP systems,
-
WMS,
-
automated lines,
-
special labeling applications.
Automatic monitoring and advanced security
Included functions:
-
missing detection ribbon,
-
detection of missing labels,
-
stop at open head,
-
acoustic warning,
-
detailed technical reports with network parameters, runtime, counters,
-
list of fonts and 1D/2D codes supported.
Professional software included
The model includes:
-
Labelstar Office Lite,
-
full compatibility with Loftware,
-
ConfigTool,
-
professional Windows drivers.
Technical specifications – Carl Valentin Vario V 108/12 Touch (90.56.211E)
| Specification | Value |
|---|---|
| Printing technology | Thermotransfer |
| Resolution | 300 dpi |
| Maximum speed | 250 mm/s |
| Print width | 108.4 mm |
| Passage width | 110 mm |
| Label width | min. 15 mm |
| Îlabel height | 6–3000 mm (min. 15 mm cutter/dispenser) |
| Supported materials | paper, cardboard, textiles, synthetics |
| Material weight | max. 220 g/m² |
| Label roll diameter | max. 200 mm |
| Tube diameter | 40 mm / 75 mm optional |
| Ribbon | Ø max. 80 mm, length 450 m, width 110 mm |
| Dimensions | 230 × 310 × 450 mm |
| Weight | 15 kg |
| Processor | TI Sitara ARM Cortex A8 – 1 GHz |
| RAM | 512 MB |
| Memory slot | SD card |
| Interfaces | RS-232, USB, Ethernet 10/100, 2× USB Host |
| Power Supply | 100–240 V AC |
| Power Consumption | 350 VA |
| Operating Temperature | 5–35 °C |
| Humidity | max. 80% without condensation |
| Operation panel | 7″ color touchscreen display |
| Fonts | 6 bitmap, 8 vector, 6 proportional |
| 1D/2D codes | DataMatrix, GS1 DataMatrix, QR, PDF417, Aztec, Code128, EAN etc. |
| Software included | Labelstar Office Lite |
| Monitoring | end of ribbon, end of labels, head open, status report |
