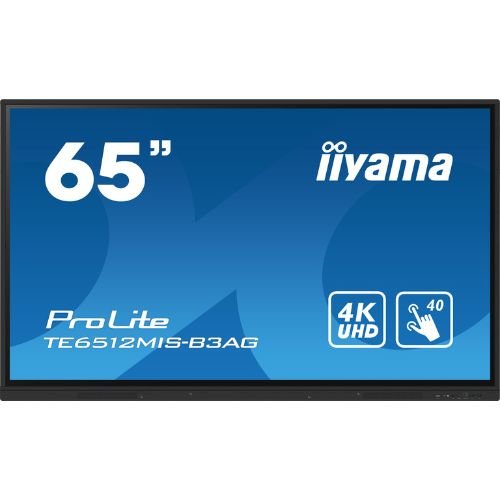

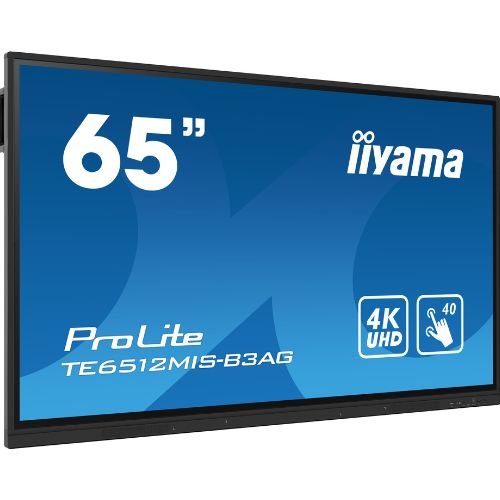

Interactive display 65″ 4K, PureTouch-IR 40-touch, USB-C 65W, iiWare 10, Wi-Fi 6, OPS – iiyama TE6512MIS-B3AG
1.626,24 € incl. VAT
IIYAMA TE6512MIS-B3AG 65” 4K interactive display with Zero Airgap, PureTouch-IR (40-touch), USB-C 65W, iiWare 10 (Android 11), Wi-Fi 6, iiyama Share/EShare, DMS, OPS, 2×16 W speakers, 24/7 – ideal for meeting rooms and education.
iiyama TE6512MIS-B3AG – 65” Interactive Display, 4K UHD, Zero Airgap, PureTouch-IR (40-touch), USB-C 65W, iiWare 10 (Android 11), Wi-Fi 6, OPS slot – for Meeting Rooms, Education & Hybrid Collaboration
iiyama TE6512MIS-B3AG is a 65” 4K interactive display designed for modern collaboration in businesses and schools. The Zero Airgap layer eliminates parallax, and PureTouch-IR delivers up to 40 touch points (smooth, fluid writing), with high accuracy and minimal latency. It runs iiWare 10 (Android 11) – the native whiteboarding suite, browser, file manager and cloud connectivity – and includes iiyama Share/EShare for multi-platform wireless mirroring (Windows, macOS, iOS, Android). Connectivity is complete: USB-C (video + touch + 65W charging), HDMI x3, HDMI out, VGA, dual LAN, USB 3.2, RS-232, S/PDIF, and the OPS slot allows the addition of a dedicated Windows PC. With 2×16 W front speakers, 3 mm, 7H hardness, anti-glare glass, VESA 600×400 mounting and design for 24/7 operation, the TE6512MIS-B3AG is the “all-in-one” solution for meeting rooms, training & classroom.
Why choose TE6512MIS-B3AG
- Natural writing, excellent precision: PureTouch-IR 40-touch + Zero Airgap → smooth pen recognition, fine lines and stable control.
- Connect and power from a single cable: USB-C 65W (DP Alt Mode + laptop charging + touch return).
- Ready-to-work ecosystem: iiWare 10 (Android 11), whiteboard, capture/annotation, cloud storage, iiyama Share/EShare (AirPlay/Chromecast/Miracast), DMS for remote management.
- Clear sound in the room: 2×16 W front-firing + S/PDIF output for external audio systems.
- Scalable & secure: OPS for Windows, OSD key-lock, control via LAN/RS-232, Wi-Fi 6 & Bluetooth integrated.
Usage scenarios
- Meeting rooms / Huddle spaces: 4K presentations, annotation, multi-device wireless sharing.
- Education (K-12 / University): interactive lessons, student-teacher collaboration, sharing to multiple devices simultaneously.
- Training, workshop, brainstorming: whiteboarding, PDF export, cloud storage and user profiles.
- Signage & public spaces: Kiosk mode, on/off scheduling, DMS management.
Technical specifications
| Section | Specifications |
|---|---|
| Diagonal / Panel | 65″ (164 cm) • VA panel • Zero Airgap • anti-glare |
| Resolution / Ratio | 3840 × 2160 (4K UHD, 16:9) |
| Brightness / Contrast | up to ≈400 cd/m² (≈350 cd/m² with touch) • native contrast ≈4000:1 |
| Angles / Colors | 178°/178° • 10-bit display (8-bit + FRC), 1.07 billion colors |
| Touch technology | PureTouch-IR, up to 40 points • multi-user fine writing • input: stylus, finger, glove • USB (HID) |
| Android integrated | iiWare 10 (Android 11): Whiteboard/Note, Browser, File Manager, Cloud Drive, WPS, iiyama Share/EShare, DMS, Kiosk mode |
| Video inputs | HDMI x3 (4K@60) • USB-C 3.2 Gen1 (4K@60, DP Alt Mode, 65W PD, touch) • VGA |
| Video Outputs & audio | HDMI out (4K@60) • S/PDIF optical • Audio out 3.5 mm |
| USB & data | USB 3.2 (front + side) for files and accessories • USB-C (front) with PD 65W |
| Network & control | LAN RJ-45 (dual, auto-switch between Android/OPS) • Wi-Fi 6 • Bluetooth • RS-232C • IR |
| Audio | 2 × 16 W front speakers |
| OPS & extensions | OPS slot for modular Windows PC or compute stick (NUC/webcam support usually included) |
| Glass & Protection | 3 mm, 7H hardness, anti-glare • OSD key-lock |
| Mounting / Mechanical | VESA 600 × 400 mm • metal housing, fanless design |
| Operation | 24/7 • recommended temperature 0…40 °C |
| Power supply / Consumption | AC 100–240 V • typical consumption ≈150–200 W • stand-by ≤0.5 W |
| Dimensions / Weight | case for flat-wall or mobile stand; thickness under ~100 mm; VESA center |
| In the box | Power/USB/HDMI cables, remote control, stylus (set), mounting accessories/cable-cover, guides |
| Compliance | CE, RoHS, ErP, WEEE, REACH, UKCA |
“A single USB-C cable for 4K video, touch and 65W charging – connect your laptop, take notes and collaborate in seconds.”
Key benefits for your team
- Frictionless collaboration: fast connection (USB-C/HDMI/wireless), intuitive whiteboard, direct export to the cloud.
- Easy management: DMS for remote updates and management, OSD key-lock, control via LAN/RS-232.
- Long-term scalability: OPS for Windows, Wi-Fi 6, 24/7 operation.
Frequently asked questions (FAQ)
USB-C does it even charge the laptop?
Yes, the USB-C port delivers up to 65W, transmits 4K video and takes touch back over the same cable.
Can I share my iPhone/Android/Windows screen wirelessly?
Yes, with iiyama Share/EShare (AirPlay, Chromecast, Miracast). Multiple devices can be connected simultaneously.
Can I run Windows directly on the display?
Yes, with the OPS slot you can install a modular Windows PC for your applications.
Is it suitable for heavy use?
Yes, it is designed for 24/7 operation and has 7H anti-glare glass for durability.
What does the package include?
Usually cables (Power/USB/HDMI), remote control, stylus, cable-cover and guides.
