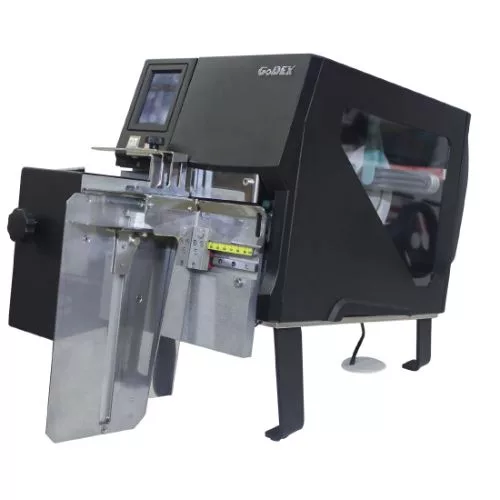

GoDEX ZX1000i CS-1000-100ZX cutter stacker

Heavy-duty cutter-stacker for GoDex ZX1000i CS-1000-100ZX printer series

GoDEX CS-1000-100ZX is a heavy-duty industrial cutter-stacker, dedicated for the GoDEX ZX1000i (ZX1200i / ZX1300i / ZX1600i) series printers. Specifically designed for applications in the textile, manufacturing and retail industries, this module fully automates the label cutting and stacking process, significantly reducing work times and increasing productivity.

The CS1000 can precisely cut satin, nylon, cardboard, PVC, PET or paper labels, with widths up to 100 mm and thicknesses up to 0.85 mm. With a speed of up to 120 labels/minute, it is ideal for the production of textile or industrial identification labels.

The module is supplied with 4 guide plates (18, 23, 28, 38 mm x 149 mm) and can only work with GoDEX ZX printers modified with the ZX-TEXTILE-MOD (included for free if ordered together).

🔧 Technical specifications:

• Model: CS-1000-100ZX

• Functions: automatic cutting and stacking

• Label width: min. 20 mm – max. 100 mm

• Label length: min. 20 mm – max. 150 mm

• Material thickness: 0.045 mm – 0.85 mm

• Label weight: up to 300 g/m²

• Supported materials: satin, nylon, PP, PVC, PET, cardboard, paper, patch labels

• Cutting speed: up to 120 cuts/minute

• Blade life: over 1 million cuts

• Anti-static systems: integrated

• Tablets included: 4 pcs. (18/23/28/38 mm x 149 mm)

• Compatibility: GoDEX ZX1200i, ZX1300i, ZX1600i + any ZX1000i series printer with ZX-TEXTILE-MOD kit

• Dimensions:

  • Without printer: 183 x 238 x 340 mm

  • With printer and stand: 651 x 270 x 437 mm

• Weight:

  • Without printer: approx. 7 kg

  • With printer: approx. 20 kg
