Fixed 2D reader Newland FM415-U

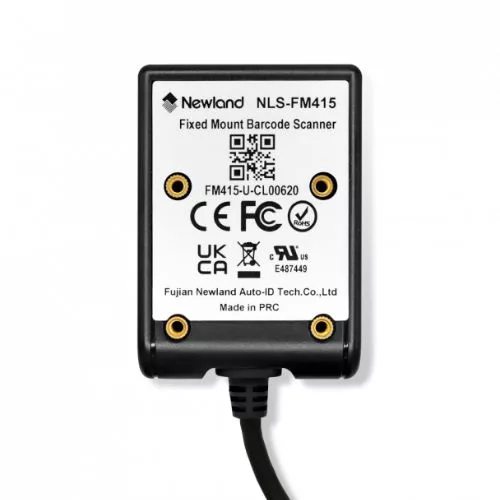

Newland FM415-U 2D Fixed Reader

The Newland FM415-U is a fixed 2D barcode reader, designed for fast and automated applications in commercial, industrial or self-service environments. With a compact housing and IP54 protection, this model is ideal for installation at fixed points – including outdoors, protected against dust and moisture.

Equipped with a 640×480 CMOS sensor, white LED illumination and red LED aiming, the FM415-U offers fast scanning, even in low light conditions or from phone screens. It works in hands-free or manual mode, with automatic activation via IR sensor, making it an excellent choice for switching from 1D to 2D without major costs.

Key Features

• Professional fixed reader: ideal for scanning automation in retail, access, or manufacturing

• Compatible with 1D & 2D: extended support for linear and 2D barcodes (QR, DataMatrix, PDF417, etc.)

• Adaptive lighting: intelligent sensor that adjusts brightness according to the environment

• Hands-free or manual: automatic or trigger operation

• Durable construction: IP54, shock resistance from 1.5m and temperatures between -20°C and 60°C

Technical specifications

• Image sensor: CMOS 640×480

• Supported codes: all common 1D and 2D formats

• Aimer/Illumination: Red LED (aiming), White LED (illumination)

• Scan modes: Sense, Continuous, Level Mode

• Interfaces: USB, RS-232

• Dimensions: 49 x 69 x 20 mm

• Consumption: max. 264 mA, standby 50 mA

• Weight: 64.6 g

• Protection: IP54, ESD ±14kV/±8kV, 1.5m drop

• Certifications: CE, FCC

• Warranty: 5 years

Recommended Applications

• Retail – points of sale vending machines

• Access control – fast scanning at entrances/exits

• Self-checkout kiosks

• Production line – barcode tracking

• Logistics – fixed 2D code scanning
