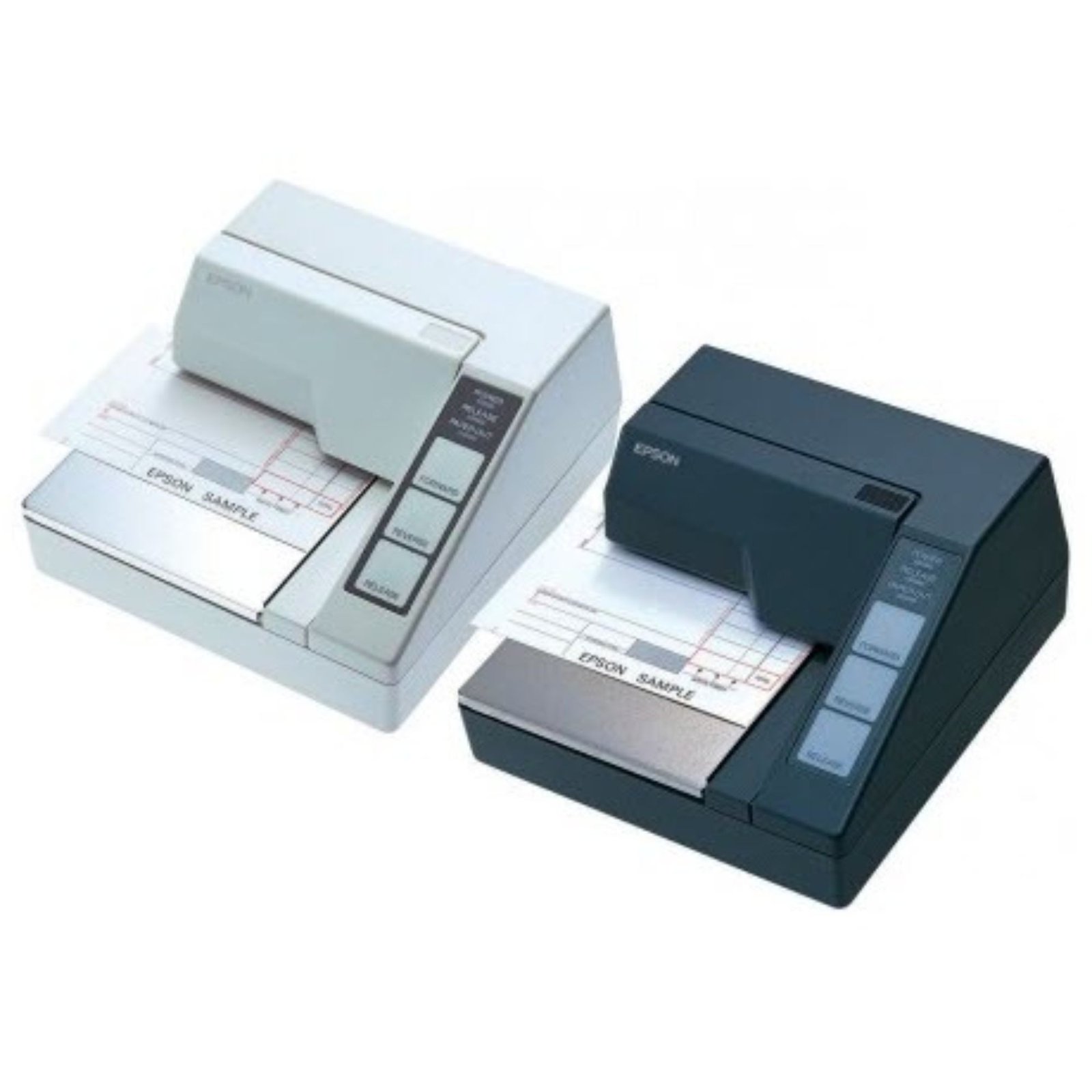

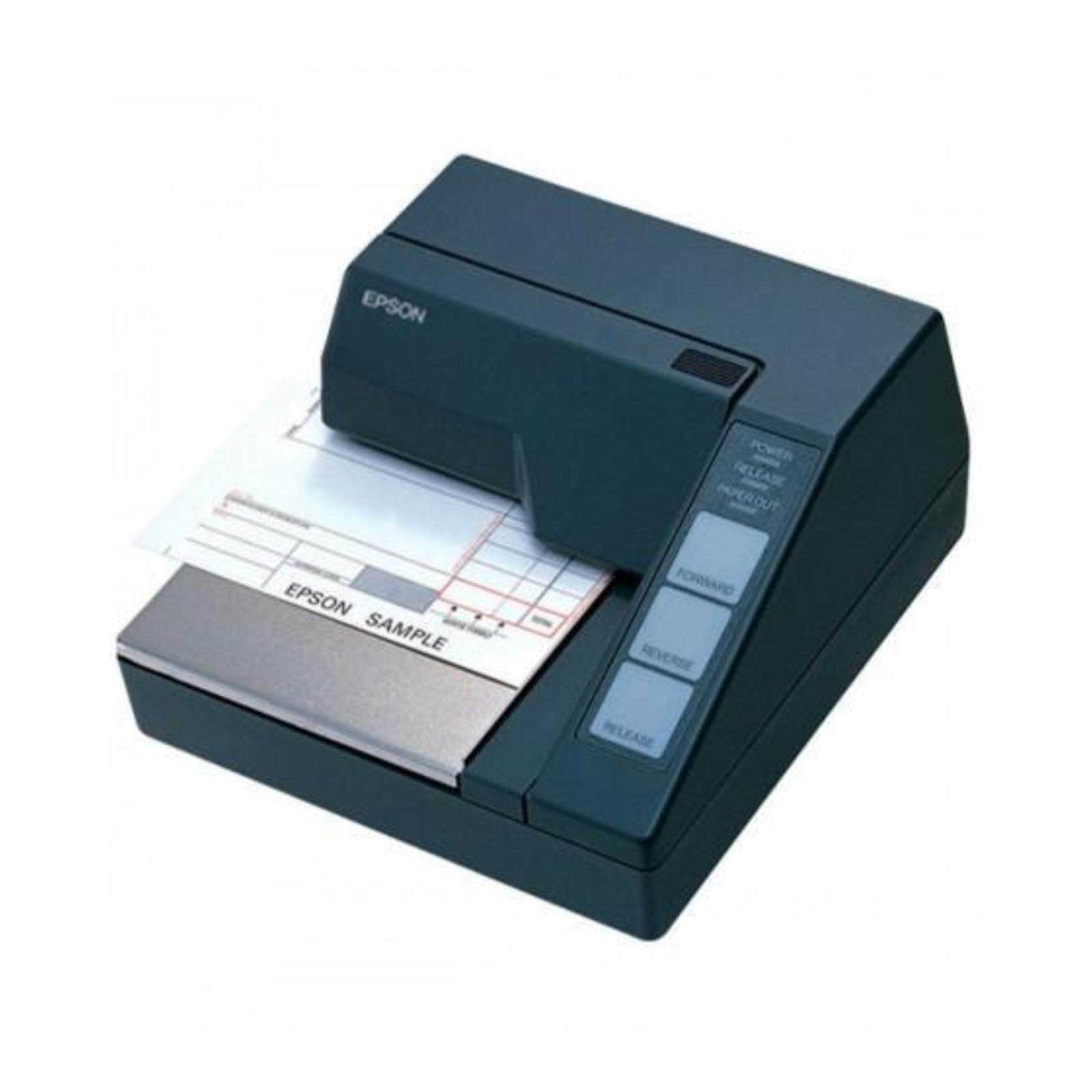

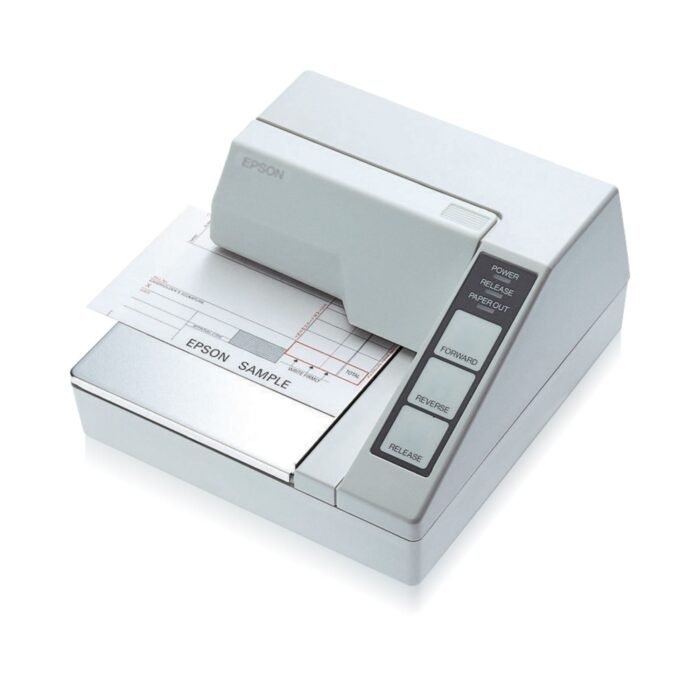

Epson TM-U295 dot matrix printer

Epson TM-U295 – Dot matrix printer for checks, forms and official documents

In a world dominated by thermal printers, there are applications where only dot matrix technology can provide control, precision, and compatibility with preprinted forms.

The Epson TM-U295 is one of the most compact and reliable slip printers in the industry, used for checks, receipts, forms, recipes and official documents.

What is TM-U295 and what is it used for?

The TM-U295 is an impact matrix printer, designed for printing on individual sheets of paper (slip printer).

According to the official data sheet, it is considered one of the smallest slip printers in the world, making it ideal for POS terminals.

The world’s most compact slip printer

Official dimensions:

• 180mm (W) × 190.5mm (D) × 101.5mm (H)

• Weight: approximately 1.6 kg

The compact design allows easy integration into bank counters, pharmacies or POS points where space is limited.

7-pin dot matrix printing technology

TM-U295 uses technology:

• 7-pin shuttle impact dot matrix

• Speed: 2.1 lines per second

• 35 / 42 columns capacity

This technology allows printing on:

• Preprinted forms

• checks

• Official documents

• Carbonless paper

Pixel-precise accuracy and Page Mode

One of the most important advantages of the TM-U295 is its support for Page Mode , which allows:

• Storing the page in memory

• Precise positioning of text and graphic elements

• Controlled printing after layout completion

This feature is essential for forms with fixed fields.

Supported formats

According to the specifications:

• Paper size: up to 182 × 257 mm

• Paper thickness: 0.09 – 0.35 mm

• Copy: original + 2 copies

POS connectivity and integration

The TM-U295 offers:

• RS-232C

• Bi-directional Parallel

• ESC/POS compatibility

It can also be integrated with Epson Intelligent Modules for extended applications.

Cash drawer control and DKD functions

The printer can control two cash drawers via the DKD (2 drivers) function.

This makes it suitable for banking and commercial applications.

Industrial reliability

According to the data sheet:

• MCBF: approximately 7 million lines

• MTBF: 18,000 hours

• Power supply: 24V DC

• Ribbon: ERC-27 (black)

Its long lifespan recommends it for intensive use.

Main technical specifications

• Printing method: 7-pin impact dot matrix

• Speed: 2.1 LPS

• Interfaces: RS-232 / Parallel

• Dimensions: 180 × 190.5 × 101.5 mm

• Weight: 1.6 kg

• Data buffer: 512 bytes

• Power supply: 24V DC

Areas of use

✔ Banks
✔ Pharmacies
✔ Public institutions
✔ Medical facilities
✔ Hotels
✔ POS with pre-printed forms
✔ Check printing

The Epson TM-U295 is a compact dot matrix printer, specialized for official documents and preprinted forms.

If you need:

• Absolute positioning accuracy

• Carbonless paper compatibility

• Industrial reliability

• Cash drawer control

The TM-U295 remains one of the safest choices in the slip printer category.

Frequently asked questions

1. What type of printing does the TM-U295 use?
7-pin matrix technology with impact.

2. Can it print on carbonless forms?
Yes, it supports original + 2 copies.

3. What is the maximum paper size?
Up to 182 × 257 mm.

4. Does it have USB?
The standard model offers RS-232 and Parallel.

5. Can it control the cash drawer?
Yes, 2 DKD drivers
