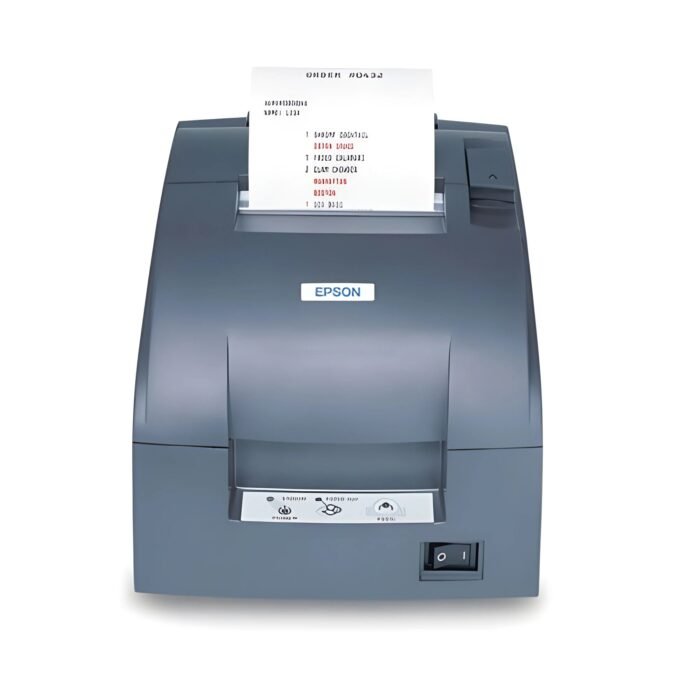

Epson TM-U220 POS dot matrix printer

Epson TM-U220 POS dot matrix printer – the global standard for retail and hospitality

The Epson TM-U220 is one of the world’s most widely used dot matrix POS printers, a standard in retail, hospitality and government. It is the successor to the TM-U210 and offers full compatibility without the need to modify POS software.

Built on Epson’s expertise in cash register printers, the TM-U220 offers high reliability, low operating costs and extensive flexibility.

✔ Three versions for different applications

• TM-U220A – automatic cutter + journal function
• TM-U220B – automatic cutter
• TM-U220D – without cutter (economical version)

Versions B and D can be wall mounted (optional kit WH-10-020).

Unique flexibility: 3 paper widths

The TM-U220 supports three different paper widths:

• 57.5mm
• 69.5mm
• 76.0mm

This flexibility allows for cost reductions by using narrower rolls where possible.

Optimized performance for POS

• Technology: matrix, 9-pin
• Speed: up to 6 lines/second (30 characters/line)
• Fonts: 7×9 or 9×9
• Optional two-color printing: black & red

Two-color printing allows you to highlight promotions, special offers or important messages directly on the receipt.

Memory and efficiency

• Logo memory: 128 KB
• User memory: 8 KB
• Receive buffer: 1 KB

Logos and graphics print quickly thanks to dedicated memory.

High reliability for intensive use

• MTBF: 180,000 hours
• MCBF: 18 million lines
• Automatic cutter (A/B): 800,000 cuts

These high values ensure stable operation in demanding commercial environments.

Connectivity and integration

• RS-232
• Parallel
• USB
• Ethernet
• Cash drawer holder (2 cash drawers)

Full compatibility with Epson ESC/POS and peripherals.

Technical Specifications

Recommended apps

• Restaurants and kitchens
• Hotels
• Retail stores
• Public administration
• Printing receipts and kitchen orders

The Epson TM-U220 remains one of the most reliable and flexible dot matrix POS printers on the market. With support for three paper widths, two-colour printing and full backward compatibility, it is the ideal solution for traditional retail and hospitality environments.
