Elo Pay 7-inch POS system
Price range: 826,56 € through 1.195,74 € ex. VAT
Elo Pay 7-inch compact POS system with HD display, Android 12, multitouch and full payment support (EMV, NFC, MSR). Available with POS stand, integrated/external hub and printer support. Ideal for modern retail.
Only logged in customers who have purchased this product may write a review.
Product description
Elo Pay 7-inch POS System
The Elo Pay 7″ POS System is a compact and modular solution, ideal for merchants who want performance in a small space. Featuring a 7-inch HD display with multitouch technology (10 points) and Corning Gorilla Glass, it supports all types of modern payments: EMV contact, contactless NFC and magnetic stripe cards (MSR), including pin-on-glass options.
It runs on Android 12, offering an enterprise-ready ecosystem with security updates, management via EloView and support for applications from Google Play. The Qualcomm Snapdragon 660 processor provides excellent performance, and connectivity via USB-C, Bluetooth, Wi-Fi and multiple hub options make it versatile for any point of sale.

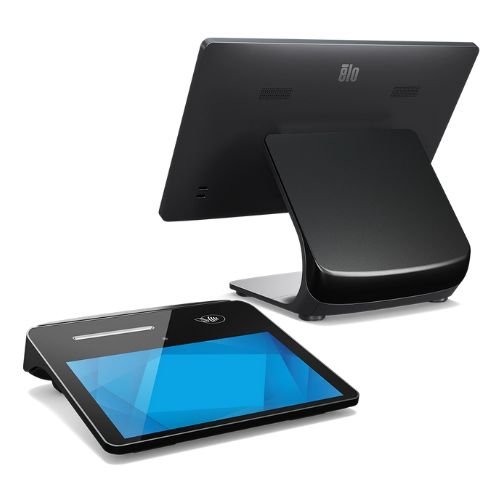

The system is available in several configurations: standalone, with Z70 stand (external or integrated hub), or with printer support. The design is IP54 certified, ideal for use in active commercial environments.
🧾 Technical specifications – Elo Pay 7″ Integrated Payment POS System
| Specification | Details |
|---|---|
| Screen | 7″ LCD optically bonded, resolution 1920×1080 |
| Brightness | 400 cd/m² |
| Contrast | 1000:1 |
| Touchscreen | TouchPro® PCAP, 10 points, Gorilla Glass, waterproof |
| OS | Android 12 with Google Play and EloView |
| Processor | Qualcomm Snapdragon 660, 2.2GHz, Octa-Core |
Memory RAM| 4 GB | |
| Storage | 64 GB |
| Expansion | MicroSD Slot |
| Audio | 2 microphones, 1 1W speaker, 1 buzzer |
| Camera | Front 5 MP |
| Connectivity wireless | Wi-Fi a/b/g/n/ac (MU-MIMO), Bluetooth 5.0 |
| I/O Ports | USB-C (drive), optional hubs with USB-A, USB-C, LAN, RJ12 (cash drawer), Powered USB 24V |
| Card readers | EMV contact/chip/NFC/MSR (3-track), pin-on-glass |
| Certifications | PCI PTS 6.2, EMV L1/L2, Mastercard, Amex, D-PAS, UnionPay, DICOM 14 (some steps in progress) |
| Sealing | IP54 (front) |
| Dimensions (WxHxD) | 176 × 168.68 × 42.95 mm |
| Weight | 0.616 kg |
| Operating Temperature | 0°C to 40°C |
| Warranty | 2 years standard (extendable) |

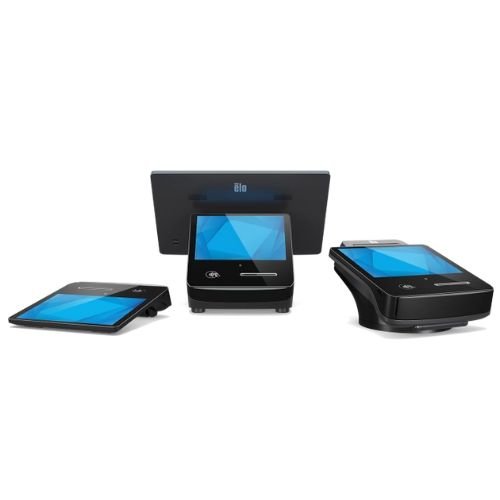

📦 Available configurations
| Model | Description |
|---|---|
| E863808 | Elo Pay 7″ standalone |
| E814281 | Elo Pay 7″ + Z70 POS Stand + External Hub |
| E814473 | Elo Pay 7″ + Z70 POS Stand + Integrated Hub |
| E814661 | Elo Pay 7″ + Printer Stand |
