Elo Pay 22-inch POS system
1.647,00 € ex. VAT
Elo Pay 22-inch POS system with Full HD touchscreen, Android 12, integrated NFC, 8 MP camera, extensive connectivity (USB, Ethernet, Wi-Fi), ideal for self-service and retail applications. Qualcomm SD660, 4GB RAM, 64GB storage. Professional design with VESA support.
Elo Pay 22-inch POS System
The Elo Pay 22-inch is an integrated POS system, based on the I-Series 4 platform, ideal for self-service applications such as automated ordering, customer check-in and ticketing. The device offers a 21.5” Full HD display with multitouch technology (up to 10 points), integrated NFC for contactless payments and Android 12 support with Google Mobile Services.
The modern design, with universal VESA mounting (75×75 mm and 100×100 mm), makes it compatible with a variety of supports, including the Wallaby Pro stand. Integration is fast, without the need for complex certifications, and management and maintenance can be done through EloView or other compatible platforms.
The device comes equipped with a Qualcomm Snapdragon 660 processor, 4 GB RAM, 64 GB storage and extensive connectivity (USB, USB-C, Ethernet, Wi-Fi, Bluetooth, NFC, microSD). The 8 MP front camera, built-in speakers and DICOM 14 support (for compatible variants) turn it into a complete terminal, ready for retail, HoReCa, healthcare or public services.
📊 Specifications technical: Elo Pay 22-inch
| Feature | Details |
|---|---|
| Model | Elo Pay 22″ E574316 |
| Color | Black |
| Screen Size | 21.5″ (54.6 cm) |
| Resolution | 1920 x 1080 px (Full HD) |
| Touch technology | TouchPro® PCAP (10 points) |
| Brightness | LCD: 250 nits / PCAP: 215 nits |
| Contrast ratio | 1000:1 |
| Viewing angle viewing angle | 178°/178° (H/V) |
| Response time | 14 ms |
| Processor | Qualcomm Snapdragon SDA660 |
| RAM | 4 GB |
| Internal storage | 64 GB |
| System operation | Android 12 + Google Play Services + EloView |
| I/O Ports | 1x USB-A 3.0, 3x micro-USB (Edge Connect), USB-C, microSD, RJ45, GPIO |
| Wireless connectivity | Wi-Fi (802.11ac), Bluetooth 5.0 |

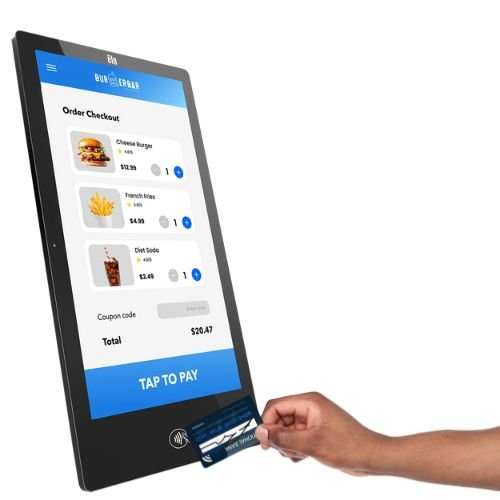

| NFC | Yes, front, with LED lighting for the logo contactless |

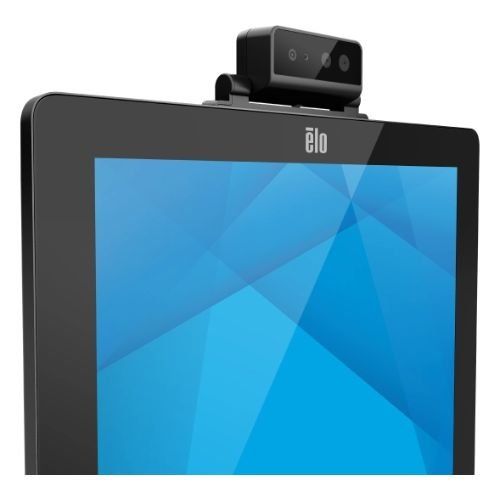

| Camera | 8MP, Full HD, auto focus |
| Speakers | 2x 0.8W |
| Microphones | 2 integrated digital |

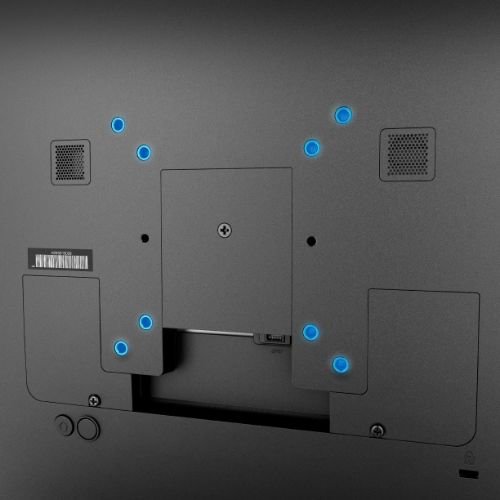

| Mounting | VESA 75 mm / 100 mm |
Dimensions (L x W x h)
| 585.6 x 324.7 x 29.7 mm |
|
| Weight | 4.1 kg (packed: 6.8 kg) |
| Certifications | UL/cUL, FCC, CE, RCM, VCCI, MIC, IC etc. |
| Protection | Touchscreen sealed, IP support (front NFC) |
| Package | POS system, cables (EU & US), power supply, quick guide |
| Standard warranty | 2 years |
| Extended warranties | up to 5 years + ADP / AUR / OS 360 available |
