Elo 03LM Touchscreen Medical Monitors
Price range: 823,00 € through 1.029,00 € ex. VAT
Elo 03LM medical touchscreen monitors – available in sizes from 19″ to 27″, with multi-touch PCAP technology, DICOM 14 compatible, IP54 protection and VESA mounting. Ideal for clinics, hospitals, laboratories and medical equipment.
Elo 03LM Touchscreen Medical Monitors

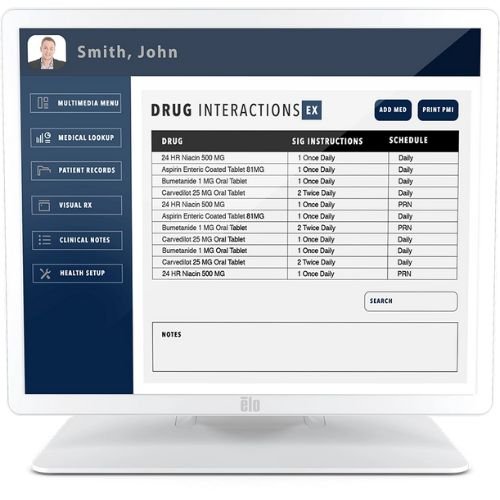

The Elo 03LM series of touchscreen medical monitors are designed specifically for the medical field, offering a combination of reliable performance, hygiene and advanced functionality. Equipped with TouchPro PCAP (Projected Capacitive) technology with 10-point multi-touch support, these monitors ensure precise and intuitive interaction, being compatible with the finger, glove and stylus.
Available in sizes of 19”, 22”, 24” and 27”, the 03LM series monitors are ideal for applications such as: EMR documentation, imaging visualization, clinical collaboration, laboratories, pharmacies or integration into medical equipment. All models comply with IEC60601-1 (edition 4) standards and offer IP54 protection against liquid and dust ingress, and are DICOM Part 14 compliant, making them suitable for consistent display of clinical images.
The series offers stand and stand-free options, black or white finishes, and includes essential accessories such as HDMI, VGA, USB cables, power supply, 100×100 mm VESA mounting bracket, and quick installation guide.
Technical Specifications (selective)
| Model | Diagonal | Resolution | Aspect Ratio | Brightness | Response | Contrast | Touch | Video Interfaces | Interfaces Touch | Protection | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1903LM | 19” | 1280 x 1024 | 5:4 | 225 cd/m² | 14ms | 1000:1 | 10 points | VGA, HDMI | USB, RS232 (via VGA) | IP54 | White/Black |
| 2203LM | 21.5” | 1920 x 1080 | 16:9 | 225 cd/m² | 14ms | 1000:1 | 10 points | VGA, HDMI | USB, RS232 (via VGA) | IP54 | White/Black |
| 2403LM | 23.8”/24” | 1920 x 1080 | 16:9 | 225 cd/m² | 16ms | 1000:1 | 10 points | VGA, HDMI | USB, RS232 (via VGA) | IP54 | White/Black |
| 2703LM | 27” | 1920 x 1080 | 16:9 | 270 cd/m² | 14ms | 1000:1 | 10 points | VGA, HDMI | USB, RS232 (via VGA) | IP54 | White/Black |
Source: Full technical specifications are available in the official data sheet.
Available Models
| Model Code | Diagonal | Color | With Stand | Touch Interface | DICOM |
|---|---|---|---|---|---|
| E658586 | 19″ | White | Yes | USB, RS232 (VGA) | No |
| E658394 | 19″ | Black | Yes | USB, RS232 (VGA) | No |
| E380665 | 19″ | White | No | USB, RS232 (VGA) | Yes |
| E380478 | 19″ | Black | No | USB, RS232 (VGA) | Yes |
| E658992 | 22″ | White | Yes | USB, RS232 (VGA) | No |
| E658788 | 22″ | Black | Yes | USB, RS232 (VGA) | No |
| E381048 | 22″ | White | No | USB, RS232 (VGA) | Yes |
| E380851 | 22″ | Black | No | USB, RS232 (VGA) | Yes |
| E659395 | 24″ | White | Yes | USB, RS232 (VGA) | No |
| E659195 | 24″ | Black | Yes | USB, RS232 (VGA) | No |
| E381452 | 24″ | White | No | USB, RS232 (VGA) | Yes |
| E381251 | 24″ | Black | No | USB, RS232 (VGA) | Yes |
| E659793 | 27″ | White | Yes | USB, RS232 (VGA) | No |
| E659596 | 27″ | Black | Yes | USB, RS232 (VGA) | No |
| E381844 | 27″ | White | No | USB, RS232 (VGA) | Yes |
| E381654 | 27″ | Black | No | USB, RS232 (VGA) | Yes |
