Display Digital Signage 75″ 4K UHD, Android 14, USB-C, Wi-Fi, 24/7 – iiyama LH7564UHS-B1AG
1.764,18 € incl. VAT
iiyama ProLite LH7564UHS-B1AG professional display, 75” 4K UHD, 500 cd/m², VA panel, Android 14, USB-C, iiSignage², WiFi and FailOver, 24/7 operation, ideal for digital signage in retail, corporate and hospitality.
Professional Display 75″ 4K UHD, Android 14, USB-C, 24/7 Digital Signage – iiyama ProLite LH7564UHS-B1AG
iiyama ProLite LH7564UHS-B1AG is a professional display of 75″ 4K UHD, designed as a true “powerhouse” for 24/7 digital signage projects. With a VA panel with Anti-Glare glass, matte finish and 25% haze, brightness of 500 cd/m² and static contrast of 5000:1, the image is clear, intense and easy to read even in well-lit spaces – perfect for shop windows, reception halls, showrooms or spaces with heavy traffic.
The 3840 x 2160 (4K UHD) resolution flawlessly renders fine text, brand graphics, digital menus, and high-quality video content. The wide 178°/178° viewing angles ensure the same image quality from almost any position, so your message remains equally powerful for everyone who sees it.
On the inside, the display runs Android 14, which turns it into an all-in-one player: you can directly install digital signage applications, media players, or custom solutions, without an external media player. The integrated software package includes iiSignage² (CMS) for content management, iiControl (DMS) for display fleet management and monitoring, and iiShare / EShare for wireless presentations – the entire ecosystem you need, ready to use right out of the box.
Connectivity is one of the strengths of the LH7564UHS-B1AG. In addition to the 2 HDMI 2.0 inputs for 4K @ 60Hz signal, you have a USB-C port with DisplayPort Alt Mode and Power Delivery 15W, ideal for quickly connecting a laptop via a single cable (image + data + power). With LAN (RJ45), RS-232c, IR in/out and 2 x USB 2.0 you can integrate the display into any AV or IT infrastructure and make content updates flexibly.
The intelligent Signal FailOver function ensures that no “no signal” messages or black backgrounds appear on the screen. If the main video source fails, the display automatically switches to the next prioritized source (including Browser, Media Player or custom sources), so that your content is always displayed – an essential advantage for information boards, orientation displays or continuous advertising campaigns.
The integrated WiFi (2.4 / 5 GHz) module simplifies content distribution and remote control, without additional cables. The integrated 2 x 10W speakers provide sound for video clips, promotional spots or audio announcements, without the need for external speakers in basic installations.
In terms of design, the ProLite LH7564UHS-B1AG comes with a slim frame of only 12.8 mm, a lightweight housing with a plastic bezel and a fanless construction, which makes it discreet, quiet and easy to integrate into any environment – from retail and corporate to hotels and restaurants. It can be mounted in both landscape and portrait, and the package includes a wall mounting kit (VESA 500 x 500 mm) for a quick and clean installation.
The display is designed for 24/7, non-stop operation, includes anti image retention protection, has a MTBF of 50,000 hours and a typical consumption of 219 W, offering a good balance between performance, reliability and total cost of ownership. If you need a 75″ 4K display with Android 14, USB-C, and a full digital signage software ecosystem, the iiyama ProLite LH7564UHS-B1AG is an extremely solid choice for long-term professional projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | iiyama ProLite LH7564UHS-B1AG |
| Product Type | LFD – Professional Digital Signage Display signage |
| Screen size | 75″ / 189.5 cm |
| Native resolution | 3840 × 2160 @ 60Hz (4K UHD, 8.3 Megapixels) |
| Aspect ratio | 16:9 |
| Panel type | VA, Anti-Glare coated glass, matte finish, 25% haze |
| Brightness panel | 500 cd/m² |
| Static Contrast | 5000:1 |
| Response Time (GTG) | 6.5 ms |
| Viewing Angle | 178°/178° (right/left 89°/89°, top/bottom 89°/89°) |
| Color Support | 1.07 billion (8-bit + FRC), NTSC 72% |
| Horizontal Frequency | 57 – 62 kHz |
| Viewable Area (W × H) | 1650.2 × 928.3 mm, 65 × 36.6″ |
| Pixel Pitch | 0.430 mm |
| Bezel Width (Left / Top / Bottom) | 12.8 mm / 12.8 mm / 12.8 mm |
| Bezel color and finish | Black, matte |
| Case material (bezel) | Plastic |
| Digital video inputs | 2 × HDMI (v2.0, max. 3840 × 2160 @ 60Hz) |
| USB-C input | 1 × USB-C (DP Alt Mode, 15W Power Delivery) |
| Ports USB | 2 × USB 2.0 |
| Monitor control inputs | 1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN), 1 × IR (3.5 mm) |
| Monitor control outputs | 1 × RS-232c (2.5mm), 1 × IR loop-through (3.5mm) |
| Audio output | 1 × 3.5 mm mini jack |
| Speakers integrated | 2 × 10 W |
| HDCP standard | HDCP 1.4 & 2.0 |
| Integrated operating system | Android 14 OS |
| Integrated software | iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager |
| Wireless connectivity | Integrated WiFi (2.4 / 5 GHz) |
| Internal hardware | CPU: ARM Cortex-A73 × 4; GPU: G52 MC1; RAM: 4 GB; ROM: 32 GB |
| FailOver function | Yes, automatic switching between sources (incl. Browser, Media Player, Custom) |
| Media playback | Yes |
| Orientation | Landscape / Portrait |
| Fanless design (fanless) | Yes |
| Anti image retention protection | Yes |
| Maximum operating time | 24/7, non-stop |
| VESA mount | 500 × 500 mm (wall mounting kit included) |
| Operating temperature | 0°C – 40°C |
| Temperature storage | -20°C – 60°C |
| MTBF (excluding backlight) | 50,000 hours |
| Power | AC 100 – 240 V, 50/60 Hz |
| Power supply | Internal |
| Power consumption (typical) | 219 W, 0.5 W stand-by, 0.3 W off mode |
| Energy efficiency class | G (Regulation (EU) 2017/1369) |
| Product dimensions (W × H × D) | 1679 × 957.1 × 68.8 mm |
| Packaging dimensions (W × H × D) | 1840 × 1112 × 177 mm |
| Weight without packaging | 27.7 kg |
| Packaged weight | 39.1 kg |

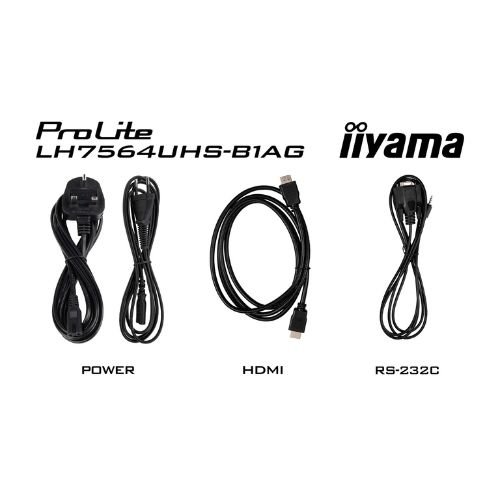

| Cables included | Power cable (1.8 m), HDMI cable (1.8 m), RS-232c cable (1.8 m) |
| Guides included | Quick Start Guide, Safety Guide |
| Other accessories | Wall mount, mounting guide, screws, dowels, hole stickers screws |
| Remote control | Yes, included (with batteries) |
| Certifications | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| EAN code | 4948570125333 |
