Display Digital Signage 65″ 4K UHD Android 11, HDMI/USB, Wi-Fi, 24/7 – iiyama LH6560UHS-B2AG
1.287,44 € incl. TVA
iiyama ProLite LH6560UHS-B2AG professional display, 65″, 4K UHD, VA panel 500 cd/m² with anti-glare glass, Android 11, iiSignage², Signal FailOver, WiFi, 3x HDMI, ultra slim 38.9 mm design and 24/7 operation for digital signage.
Only logged in customers who have purchased this product may write a review.
Product description
Professional monitor 65″ iiyama ProLite LH6560UHS-B2AG, 4K UHD, 500 cd/m², Android 11, 24/7
iiyama ProLite LH6560UHS-B2AG is a professional display of 65″ 4K UHD designed specifically for modern digital signage projects, where you need a very clear image, high brightness and 24/7 operation. The 3840×2160 resolution offers four times more detail than Full HD, so texts, logos and graphics are seen flawlessly even from a distance.
The VA panel with Anti-Glare Coated glass, 3H hard coating and 25% haze combines deep blacks and a static contrast ratio of 5000:1 with low reflections and wide viewing angles (178°/178°). With 500 cd/m² brightness, content remains perfectly readable in brightly lit spaces – showrooms, receptions, corporate spaces or retail areas.
A big plus of this model is the ELED VA technology, which consumes significantly less energy than a DLED IPS panel at the same brightness. The typical consumption of only 59 W is very good for a 65″ 4K display, an extremely important aspect in networks with many screens.
The display runs Android 11 and includes iiSignage² (Content Management System for content management), Signal FailOver (automatic switching between sources to avoid black screen) and EShare (wireless content sharing). Basically, you have a smart player integrated into the screen: you can install applications, schedule campaigns, organize playlists and control multiple displays remotely without an external PC.
Inside, the LH6560UHS-B2AG is equipped with A53×4 CPU, G52 MP2 GPU, 2 GB RAM and 16 GB internal memory, enough for digital signage applications, streaming and media playback directly from USB. Connectivity is complete: 3x HDMI 2.0 (4K @ 60 Hz), 2x USB 2.0, mini-jack audio output, LAN (RJ45) and RS-232c port for professional control, plus integrated WiFi 802.11ac for fast network connection. 2×10 W speakers provide decent sound for most commercial spaces.
The display is designed for 24/7 continuous operation, has a fanless design for quiet operation and a MTBF of 50,000 hours (excluding backlight). It can be mounted in both landscape and portrait orientations, in totems, digital menus or display walls. The depth of just 38.9 mm and narrow bezel (14 mm sides/top, 16 mm bottom) make it ideal for slim installations and elegant integration into showcases or furniture.
It comes with VESA 400×400 mm wall mount kit, power, HDMI and RS-232c cables and remote control with batteries – everything you need for a quick installation in a professional digital signage network.
Technical specifications – iiyama ProLite LH6560UHS-B2AG
| Feature | Specification |
|---|---|
| Series / Model | ProLite LH6560UHS-B2AG |
| Product type | LFD – Professional signage display |
| Diagonal | 64.5″ / 164 cm |
| Panel type | VA, Anti-Glare Coated Glass, Hard Coating (3H), haze 25% |
| Resolution native | 3840 × 2160 @ 60 Hz (8.3 megapixels, 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 500 cd/m² |
| Static contrast | 5000:1 |
| Response time (GTG) | 6.5 ms |
| Viewing angles viewing | 178° / 178° (89°/89° left–right, 89°/89° top–bottom) |
| Color support | 1.07 billion colors (8 bit + FRC), NTSC 87% |
| Horizontal frequency | 28 – 160 kHz |
| Viewable area (W × H) | 1428.5 × 803.5 mm (56.2 × 31.6″) |
| Width bezel (left/right/top/bottom) | 14 mm / 14 mm / 14 mm / 16 mm |
| Pixel pitch | 0.372 mm |
| Bezel color / finish | Black, matte |
| Lighting technology | ELED VA (low power consumption compared to DLED IPS) |
| Digital video inputs | 3 × HDMI 2.0 (max. 3840×2160 @ 60 Hz) |
| Monitor control inputs | 1 × RS-232c, 1 × RJ45 (LAN) |
| Audio output | 1 × 3.5 mm mini-jack |
| Built-in speakers | 2 × 10 W |
| HDCP compatibility | HDCP 1.4 & 2.2 |
| USB ports | 2 × USB 2.0 |
| Operating System | Android 11 OS |
| Integrated software | iiSignage², Signal FailOver, EShare |
| Wireless connectivity | Integrated WiFi (802.11ac) |
| Internal hardware | CPU: A53 ×4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB |
| Extra | Wall mounting kit included (VESA 400 × 400 mm) |
| Max. operating time | 24/7 (continuous operation) |
| Anti image retention function | Yes |
| Media playback | Yes (integrated media player) |
| Casing material (bezel) | Metal (front) |
| OSD – available languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Physical buttons | Power button, Power indicator, Remote sensor |
| User controls (OSD) | Picture, screen, audio, Config 1 & 2, advanced options, Android settings |
| Plug & Play | DDC2B |

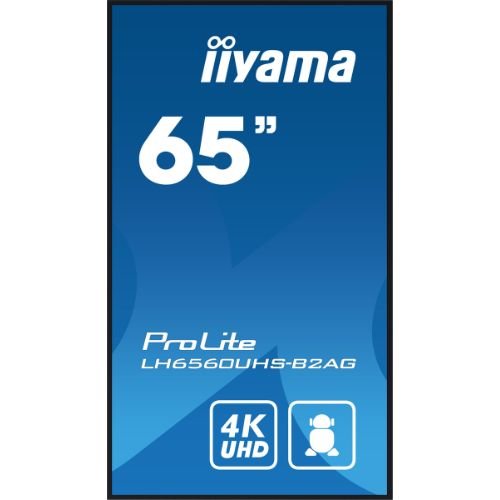

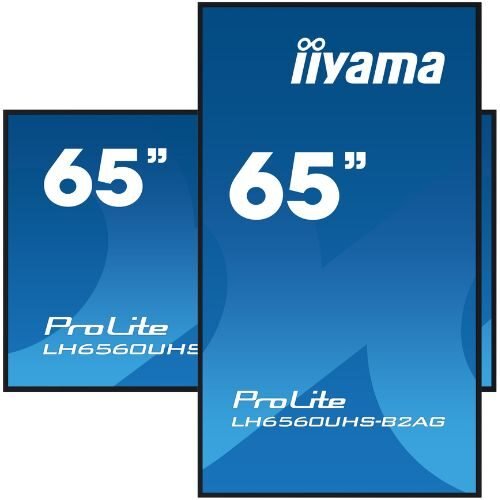

| Mounting orientation | Landscape and Portrait |
| Fanless design (fanless) | Yes |
| Operating temperature range | 0°C – 40°C |
| Storage temperature range | –20°C – 60°C |
| MTBF | 50,000 hours (without backlight) |

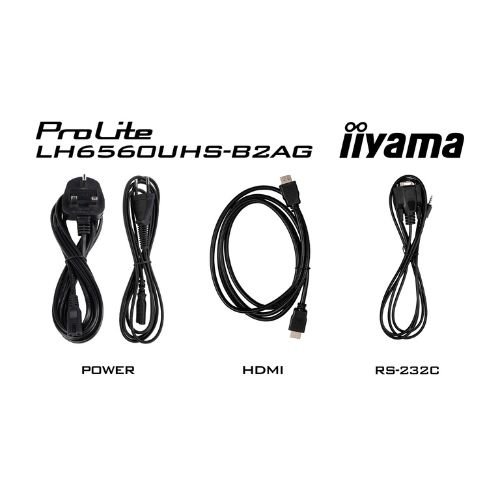

| Cables included | Power cable 1.8 m, HDMI cable 1.8 m, RS-232c cable 1.8 m |
| Guides | Quick start guide, safety guide |
| Other accessories | Wall mount bracket, wall mount guide, screws, screw anchors, stickers |
| Remote control | Yes, included (with batteries) |
| Power supply | Internal |
| Power supply | AC 100 – 240 V, 50/60 Hz |
| Power consumption | 59 W (typical), 0.5 W standby, 0.3 W off mode |
| Regulations / Certifications | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (EU 2017/1369) | C |
| Product dimensions (W × H × D) | 1459.2 × 837.1 × 38.9 mm |
| Packaging dimensions (W × H × D) | 1640 × 990 × 164 mm |
| Weight (without packaging) | 25.3 kg |
| Weight (with packaging) | 36.4 kg |
| Code EAN | 4948570124459 |
