Display Digital Signage 55″ 4K UHD Android 11, HDMI/USB, Wi-Fi, 24/7 – iiyama LH5560UHS-B2AG
863,64 € incl. VAT
iiyama ProLite LH5560UHS-B2AG professional display, 55″, 4K UHD, VA panel 500 cd/m² with anti-glare glass, Android 11, iiSignage², FailOver, WiFi, 3x HDMI and 24/7 operation for digital signage.
55″ iiyama ProLite LH5560UHS-B2AG Professional Monitor, 4K UHD, 500 cd/m², Android 11, 24/7
iiyama ProLite LH5560UHS-B2AG is a 55″ 4K UHD professional display, specially designed for modern digital signage projects in retail, corporate, education or HoReCa. The 3840×2160 resolution and 500 cd/m² brightness ensure extremely clear images, perfectly legible texts and intense colors, even in brightly lit spaces.
The VA panel with Anti-Glare Coated glass, matte finish and 25% haze reduces disturbing reflections and offers a static contrast of 4000:1, so that black remains deep, and video or graphic content looks professional in any context. The wide viewing angles of 178°/178° ensure that your messages are visible from almost any position.
A great advantage of this model is that it uses ELED VA technology, which consumes significantly less energy than a DLED IPS panel with the same brightness, but maintains the level of 500 cd/m². The typical power consumption of just 55W is excellent for a 55″ 4K display, which is important in large display networks.
The LH5560UHS-B2AG runs Android 11 and integrates the iiSignage² (CMS for content management), Signal FailOver (automatic switching between sources to avoid black screens) and EShare (wireless content sharing). Basically, you have a digital signage “smart player” right in the screen – you can install apps, schedule campaigns and display content from the network or internal memory, without an external PC.
In terms of connectivity, the monitor offers 3x HDMI 2.0 (4K @ 60 Hz), 2x USB 2.0, mini-jack audio output, LAN (RJ45) and RS-232c ports for centralized control, plus integrated 802.11ac WiFi. The built-in 2×10 W speakers are sufficient for most commercial spaces, and a 300×400 mm VESA mounting kit is included for quick wall installation.
The display is certified for 24/7 operation, has a fanless design for silent operation, and an MTBF lifespan of 50,000 hours (excluding backlight). The depth of only 38.6 mm and the narrow bezel (13.3 mm side/top) make it look impeccable in shop windows, display walls or slim totems.
Technical specifications – iiyama ProLite LH5560UHS-B2AG
| Feature | Specification |
|---|---|
| Series / Model | ProLite LH5560UHS-B2AG |
| Product type | LFD – Professional digital display signage |
| Diagonal | 54.6″ / 139 cm |
| Panel type | VA, Anti-Glare Coated Glass, Hard Coating (3H), haze 25% |
| Native resolution | 3840 × 2160 @ 60 Hz (8.3 megapixels, 4K UHD) |
| Aspect ratio | 16:9 |
| Brightness panel | 500 cd/m² |
| Static contrast | 4000:1 |
| Response time (GTG) | 6.5 ms |
| Viewing angles | 178° / 178° (89°/89° left–right, 89°/89° top–bottom) |
| Color support | 1.07 billion colors (8 bit + FRC), NTSC 87% |
| Horizontal Frequency | 28 – 160 kHz |
| Viewable Area (W × H) | 1209.6 × 680.4 mm (47.6 × 28.8″) |
| Bezel Width (Left/Right/Top/Bottom) | 13.3 mm / 13.3 mm / 13.3 mm / 15.3 mm |
| Pixel Pitch | 0.315 mm |
| Bezel color / finish | Black, matte |
| Lighting technology | ELED VA (low power consumption compared to DLED IPS) |
| Digital video inputs | 3 × HDMI 2.0 (max. 3840×2160 @ 60 Hz) |
| Monitor control inputs | 1 × RS-232c, 1 × RJ45 (LAN) |
| Output audio | 1 × 3.5 mm mini-jack |
| Built-in speakers | 2 × 10 W |
| HDCP compatibility | HDCP 1.4 & 2.2 |
| USB Ports | 2 × USB 2.0 |
| Operating System | Android 11 OS |
| Integrated software | iiSignage², Signal FailOver, EShare |
| Wireless connectivity | Integrated WiFi (802.11ac) |
| Internal hardware | CPU: A53 ×4, GPU: G52 MP2, RAM: 2GB, ROM: 16 GB |

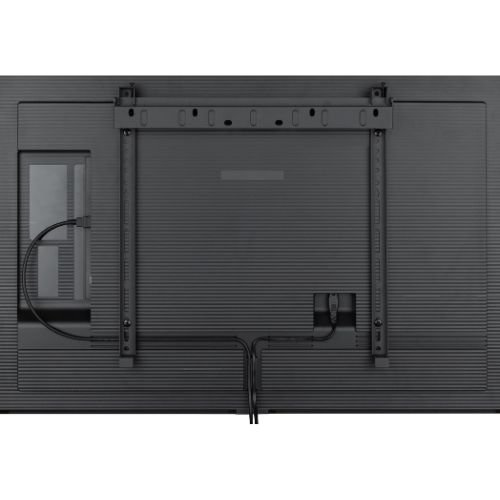

| Extra | Wall mounting kit included (VESA 300 × 400 mm) |
| Anti image retention function | Yes |
| Media playback | Yes (integrated media player) |
| Maximum operating time | 24/7 (continuous operation) |

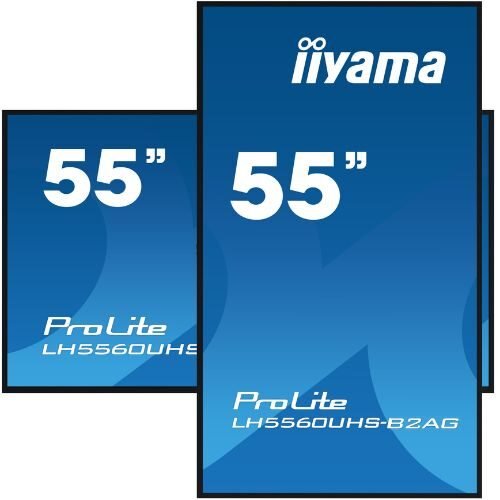

| Mounting orientation | Landscape and Portrait |
| Fanless design | Yes |
| OSD – languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Physical buttons | Power button, Power indicator, Remote sensor |
| User controls (OSD) | Picture, screen, audio, Config 1 & 2, advanced options, Android settings |
| Plug & Play | DDC2B |
| Operating temperature range | 0°C – 40°C |
| Storage temperature range | –20°C – 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| Cables included | Power cable 1.8 m, HDMI cable 1.8 m, RS-232c cable 1.8 m |
| Guides | Quick start guide, safety guide |
| Other accessories | Wall mount, mounting guide, screws, dowels, hole stickers |
| Remote control | Yes, included (with batteries) |
| Power supply | Internal |
| Power supply | AC 100 – 240 V, 50/60 Hz |
| Power consumption | 55 W (typical), 0.5 W standby, 0.3 W off mode |
| Regulations / Certifications | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (EU 2017/1369) | E |
| Product dimensions (W × H × D) | 1239.7 × 712.5 × 38.6 mm |
| Packaging dimensions (W × H × D) | 1390 × 850 × 136 mm |
| Weight (without packaging) | 17.6 kg |
| Weight (with packaging) | 22.9 kg |
| Code EAN | 4948570125685 |
