Display Digital Signage 55″ 4K UHD, 800cd/m², Android 11, Wi-Fi, 24/7 – iiyama LH5565UHSB

MSRP: 953,00 € ex. TVA

1.153,13 € incl. TVA

iiyama ProLite LH5565UHSB-B1 professional display, 55” 4K UHD, 800 cd/m², IPS panel, Android 11, iiSignage², FailOver, WiFi and 24/7 operation, ideal for digital signage projects in retail, corporate and education.

Request a quote for availability
    GUARANTEED SAFE CHECKOUT
    • Stripe
    • Visa Card
    • MasterCard
    • Apple Pay
    MPN: LH5565UHSB-B1Category: Model: Downloads: DataSheet

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may write a review.

    About this product

    Product description

    Professional Display 55″ 4K, 800 cd/m², Android 11, 24/7 Digital Signage – iiyama ProLite LH5565UHSB-B1

    iiyama ProLite LH5565UHSB-B1 is a professional display of 55″ 4K UHD, from the vivid-bright range, designed to make your content stand out in any context. With a brightness of 800 cd/m², the screen is perfect for storefronts, very bright spaces and high-traffic areas, where you need your message to be clear, visible and impossible to ignore.

    The IPS panel with 1% haze ensures natural colors, wide viewing angles (178°/178°) and a uniform image, regardless of whether the viewer is in front of the screen or to the side. The 4K UHD (3840 × 2160) resolution offers a high level of detail – ideal for fine text, brand graphics, digital menus or high-quality video content.

    Thanks to the Android 11 operating system, the ProLite LH5565UHSB-B1 works as an all-in-one player: you can directly install the desired applications (CMS platforms, media players, custom applications), without an external media player. The integrated iiSignage² platform allows you to create, schedule and manage content remotely, so that the entire network of screens is easily managed and always up to date.

    The Signal FailOver feature ensures that the screen never shows “no signal” or a black background. If the primary signal input is no longer available, the display automatically switches to the next prioritized source (including Browser, Media Player, or a custom source), keeping the content displayed – essential for critical information applications or continuous advertising.

    The connectivity is designed for modern digital signage projects: you have 2 x HDMI 2.0 and 1 x DisplayPort 1.2 for 4K @ 60Hz video signal, plus LAN (RJ45) and RS-232c for remote control and management. 2 USB 2.0 ports allow for local content playback or quick updates, while the 3.5 mm audio jack output and integrated 2 x 10 W speakers cover the audio side of presentations and video spots.

    The integrated WiFi (802.11ac) module simplifies content distribution over the network – no more need for additional cables. With applications such as iiControl, iiShare and EShare, the screen can also be used in meeting rooms or education, for wireless screen sharing from a laptop, tablet or smartphone.

    The all-metal construction, thin bezel design, and fanless architecture make the ProLite LH5565UHSB-B1 a robust, discreet, and reliable solution for heavy-duty commercial and corporate environments. It can be mounted in both landscape and portrait orientations, using a VESA 400 × 400 mm mount, making it ideal for digital signage, information boards, digital menus, or orientation screens.

    The display is designed for 24/7 operation, has a MTBF of 50,000 hours, and typical power consumption of just 78 W, which means high reliability and optimized operating costs. If you need an ultra-bright 55″ 4K display with Android 11, integrated CMS, FailOver and WiFi, the iiyama ProLite LH5565UHSB-B1 is an excellent candidate for any serious digital signage project.

    Technical Specifications

    ParameterValue
    Modeliiyama ProLite LH5565UHSB-B1
    Type productLFD – Vivid-bright professional display for digital signage
    Diagonal54.6″ / 139 cm (segment 55″)
    Native resolution3840 × 2160 @ 60Hz (4K UHD, 8.3 Megapixels)
    Aspect ratio16:9
    Panel typeIPS, haze 1%
    Panel Brightness800 cd/m²
    Static Contrast1200:1
    Response Time (GTG)8 ms
    Viewing Angle178°/178° (Right/Left 89°/89°, Up/Down 89°/89°)
    Support colors1.07 billion (8-bit + FRC), NTSC 72%
    Horizontal frequency28 – 160 kHz
    Viewable area (W × H)1209.6 × 680.4 mm, 47.6 × 26.8″
    Pixel pitch0.315 mm
    Bezel width (left / top / bottom)14.9 mm / 14.9 mm / 14.9 mm
    Bezel color and finishBlack
    Digital video inputs2 × HDMI 2.0 (max. 3840 × 2160 @ 60Hz)
    DisplayPort input1 × DisplayPort 1.2 (max. 3840 × 2160 @ 60Hz)
    Monitor control inputs1 × RS-232c (2.5 mm sub-mini jack), 1 × RJ45 (LAN), 1 × IR (3.5 mm)
    Audio output1 × 3.5 mm mini jack (stereo)
    Built-in speakers2 × 10 W
    USB ports2 × USB 2.0
    HDCP standardHDCP 2.2
    Operating system built-inAndroid 11 OS
    Integrated softwareiiSignage², iiControl, iiShare, FailOver, EShare
    Wireless connectivityIntegrated WiFi (802.11ac, built-in module)
    Internal hardwareCPU: A73 × 4 + A53 × 4; GPU: G52 MP8; RAM: 4 GB; ROM: 32 GB
    FailOver functionYes, automatic switching between sources (incl. Browser, Media Player, Custom)
    Media playbackYes
    Case constructionMetal
    OSD languagesEN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
    Buttons physicalPower
    Plow & Play

    DDC2B
    OrientationLandscape / Portrait
    Fanless DesignYes
    Anti-image retention protectionYes
    Maximum operating time24/7, non-stop
    VESA mount400 × 400 mm
    Operating temperature range0°C – 40°C
    Storage temperature range-20°C – 60°C
    MTBF (excluding backlight)50,000 hours
    Power supplyAC 100 – 240 V, 50/60 Hz
    Power source powerInternal
    Power consumption78 W (typical), 0.5 W stand-by, 0.3 W off mode
    Energy efficiency classE (Regulation (EU) 2017/1369)
    Product dimensions (W × H × D)1237.5 × 710 × 55 mm
    Packaging dimensions (W × H × D)1386 × 845 × 130 mm
    Weight without packaging14.6 kg
    Weight with packaging19.8 kg

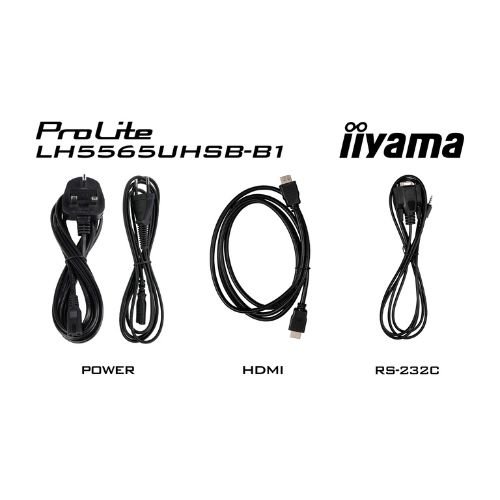

    Cables includedPower cable (1.8 m), HDMI cable (1.8 m), RS-232c cable (1.8 m)
    Guides includedQuick Start Guide, Safety Guide
    Other accessoriesScrew hole stickers, adhesive cable clips, AC switch cover
    Remote controlYes, included (with batteries)
    CertificationsCE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
    EAN code4948570123575
