Datalogic STS320 fixed industrial scanners
Price range: 3.566,70 € through 37.830,60 € ex. VAT
Datalogic STS320 – industrial 2D scanning system for tire traceability, with 2MP sensors, dual-core processor, large FOV up to 1250 mm and fast plug-and-play integration.
Datalogic STS320 – Fixed Industrial Scanner for Tire Traceability
The Datalogic STS320 is a first-in-class solution for demanding traceability applications in the tire and automotive industries. Equipped with a 2 MP (1920×1080) sensor, dual-core processor, and high-power LED illumination, the STS320 offers a field of view (FOV) of up to 1250 mm and 0.25 mm (10 mils) code reading, ensuring maximum performance at transport speeds up to 1.5 m/s. The systems are delivered pre-configured and validated from the factory for quick installation, dramatically reducing commissioning time. With the new DL.CODE™ software, advanced web interface and 360° visual diagnostics, the STS320 guarantees reliability and productivity at all stages of the tire production and distribution flow.
🔥 Key Benefits
- ⚡ Excellent performance – 2 MP sensor, dual-core processor, speed up to 1.5 m/s
- 📷 Optical flexibility – field of view up to 1250 mm and reading of 0.25 mm codes
- 🛠️ Plug & Play – delivered pre-assembled, pre-configured and validated from the factory
- 🌐 Full connectivity – Gigabit Ethernet, Profinet, EtherNet/IP, Modbus TCP, OPC UA, ID-NET™
- 🔎 Advanced diagnostics – web Mosaic View, real-time visualization, code quality metrics (ISO/IEC)
- 💡 360° visual feedback – Configurable multicolor LEDs and cross laser aiming system
- 🧾 Industrial compliance – IP65/IP67 protection, sulfur gas resistance, CE/FCC/CSA standards
📦 Typical applications

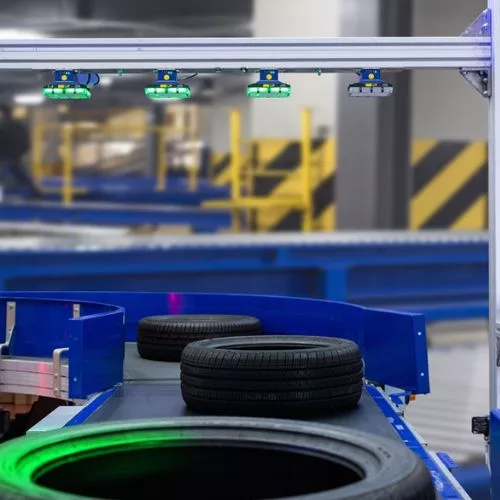

- 🏭 Tire production – traceability from green tires to the final product
- 📦 Distribution and logistics – automatic sorting on multi-directional conveyor belts
- 🚗 Automotive – full traceability for tires and wheels
- 🔬 Visual inspection – test machines, inspection stations, assembly lines
📐 General specifications – Datalogic STS320
| Feature | Details |
|---|---|
| Sensor | CMOS global shutter, 2 MP (1920×1080), 40–60 fps |
| Illumination | Blue LED – 14 or 36 LEDs, High/Very High Power |
| Supported codes | 1D, 2D (Data Matrix, QR, Micro QR, Aztec, DotCode), postal codes |
| Interfaces | Ethernet 10/100/1000, Profinet IO, EtherNet/IP, Modbus TCP, RS232/RS422, OPC UA |
| Digital I/O | 2 optocoupler inputs, 3 configurable NPN/PNP outputs |
| User feedback | 360° multi-color LED, Green Spot, Red Spot, buzzer, HMI X-PRESS |
| Protection | IP65 / IP67, sulfur gas resistance |
| Operating temperature | -10 °C … +50 °C |
| Dimensions & Weight | Variations between 695 and 1126 mm length, 4.8–10.5 kg (depending on model) |
| Consumption | 3.1 A (3-head models) to 6.0 A (6-head models) @ 24 VDC |
| Software | DL.CODE™, WebSentinel Plus, Mosaic View |
📦 Models available
- 🔹 Standard Range – Passenger & Light Truck Tires: STS320-003, STS320-004, STS320-013, STS320-014, STS320-015, STS320-016
- 🔹 Long Range – Commercial Vehicle Tires: STS320-103, STS320-104, STS320-113, STS320-114, STS320-115, STS320-116
- 🔹 Near Range / Bottom Reading Tires: STS320-203, STS320-204, STS320-205
- 🔹 Assemblies Matrix 320 ATS: ATS-000, ATS-010, ATS-100, ATS-110, ATS-200 (modular associations for STS320)
