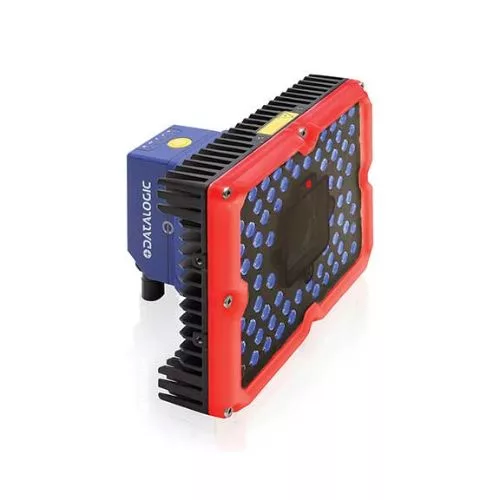

Datalogic Matrix 320 industrial 2D scanners
Price range: 2.997,55 € through 5.124,00 € ex. VAT
Datalogic Matrix320 – high-performance industrial 2D scanner with 2MP sensor (5MP option), smart multicolor illumination, electronic autofocus, industrial connectivity and maximum flexibility for traceability applications in logistics, production and intralogistics.
Datalogic Matrix 320 – Industrial 2D Scanners for Intelligent Traceability in Production and Logistics
Datalogic Matrix 320 is a family of next-generation fixed industrial 2D scanners, designed for fast, accurate and versatile reading of 1D/2D and DPM (Direct Part Marking) codes in demanding applications in production, logistics, automotive, electronics and beyond.
Equipped with 2MP (16:9) and optional 5MP HDR sensors, variable focus lenses (Liquid Lens), intelligent lighting (RED/WHT/BLU) and advanced industrial connectivity (Ethernet, RS232, OPC UA), the Matrix 320 offers top performance and maximum flexibility in reading codes even on difficult surfaces or in movement.
🔥 Key Benefits – Matrix 320
- 📷 2MP CMOS Sensor – offers an extended field of view and high readout speed (up to 60 FPS)
- 🔍 Optional 5MP HDR – for applications requiring improved resolution and contrast
- 🎯 Liquid Lens – fast autofocus, no manual adjustments

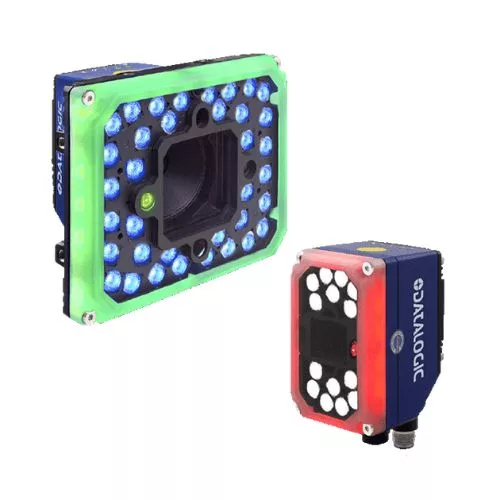

- 💡 Variable Illumination – red, white and blue LEDs; various angles (60°, 45°, 25°)
- 🌐 Full Connectivity – Ethernet, Serial, OPC UA, PoE support, web configurator
- 🧠 DL.CODE + X-Press HMI software – intuitive configuration, self-learning, FTP image save support
- 🟢 360° visual feedback – multi-color LEDs + green/red spot for immediate visual confirmation
- 🔩 Robust construction – industrial standard IP65/IP67, ideal for demanding environments
📦 Typical applications
- 🏭 Automotive – parts traceability with DPM on metal/plastic

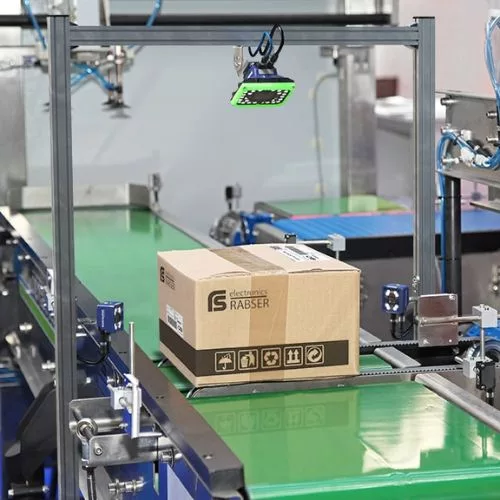

- 📦 Logistics & intralogistics – high-speed reading on automated lines
- 🔌 Electronics & PCB – small codes on reflective surfaces, with ESD protection
- 💊 Pharmaceutical – serialization, UDI codes, regulatory-compliant traceability
- 🚚 Warehouse & Distribution – solutions for scanning on the move, even in dusty or vibrating environments
📐 General specifications – Matrix 320
| Feature | Details |
|---|---|
| Sensor | 2MP CMOS Global Shutter (16:9), optional 5MP HDR |
| Focus | Liquid Lens (autofocus) |
| Illumination | LED: red, white, blue; variants LL6, LL9, LL16 |
| Viewing angle | 60°, 45°, 25° (depending on lens) |
| Connectivity | Ethernet, RS232, RS422, OPC UA, PoE |
| Software | X-Press HMI, DL.CODE, Web Interface, FTP Image Save |
| Visual Feedback | 360° LED, green/red spot for successful reading |
| Industrial Protection | IP65 / IP67 |
📋 Models available – Matrix 320
Below are listed all models in the Matrix 320 family, îalong with the configuration name:
| Product code | Model configuration |
|---|---|
| 938100035 | MATRIX 320 700-030 CM 2MP 1/3″ |
| 938100017 | Matrix 320 701-230 LL6 14L 60D RED |
| 938100019 | Matrix 320 703-230 LL6 14L 60D BLUE |
| 938100020 | MATRIX 320 705-330 LL9 14L 45D RED |
| 938100021 | MATRIX 320 706-330 LL9 14L 45D WHT |
| 938100022 | Matrix 320 707-330 LL9 14L 45D BLUE |
| 938100023 | MATRIX 320 709-430 LL16 14L 25D RED |
| 938100024 | Matrix 320 710-430 LL16 14L 25D WHT |
| 938100025 | Matrix 320 711-430 LL16 14L 25D BLUE |
| 938100026 | Matrix 320 717-230 LL6 36L 60D RED |
| 938100028 | Matrix 320 719-230 LL6 36L 60D BLUE |
| 938100029 | Matrix 320 721-330 LL9 36L 45D RED |
| 938100030 | Matrix 320 722-330 LL9 36L 45D WHT |
| 938100031 | Matrix 320 723-330 LL9 36L 45D BLUE |
| 938100032 | MATRIX 320 725-430 LL16 36L 25D RED |
| 938100033 | MATRIX 320 726-430 LL16 36L 25D WHT |
| 938100034 | MATRIX 320 727-430 LL16 36L 25D BLUE |
| 938100071 | MATRIX 320 700-030 CM 2MP 1/3″ X |
| 938100101 | MATRIX 320 700-030 CM 2MP 1/3″ XP |
| 938100053 | Matrix 320 701-230 LL6 14L 60D RED X |
| 938100055 | Matrix 320 703-230 LL6 14L 60D BLU X |
| 938100056 | Matrix 320 705-330 LL9 14L 45D RED X |
| 938100084 | MATRIX 320 705-330 LL9 14L 45D RED XP |
| 938100057 | Matrix 320 706-330 LL9 14L 45D WHT X |
| 938100085 | MATRIX 320 706-330 LL9 14L 45D WHT XP |
| 938100058 | Matrix 320 707-330 LL9 14L 45D BLUE X |
| 938100059 | Matrix 320 709-430 LL16 14L 25D RED X |
| 938100060 | Matrix 320 710-430 LL16 14L 25D WHT X |
| 938100061 | Matrix 320 711-430 LL16 14L 25D BLUE X |
| 938100086 | MATRIX 320 711-430 LL16 14L 25D BLU XP |
| 938100062 | Matrix 320 717-230 LL6 36L 60D RED X |
| 938100064 | Matrix 320 719-230 LL6 36L 60D BLUE X |
| 938100065 | Matrix 320 721-330 LL9 36L 45D RED X |
| 938100066 | Matrix 320 722-330 LL9 36L 45D WHT X |
| 938100087 | MATRIX 320 722-330 LL9 36L 45D WHT XP |
| 938100067 | Matrix 320 723-330 LL9 36L 45D BLU X |
| 938100068 | Matrix 320 725-430 LL16 36L 25D RED X |
| 938100069 | Matrix 320 726-430 LL16 36L 25D WHT X |
| 938100070 | Matrix 320 727-430 LL16 36L 25D BLU X |
👉 Quick tip: Choose LL6 focal length for wide field (e.g. labels, packaging), LL9 for medium distance and LL16 for long distances or difficult markings. The “X” and “XP” models offer extended performance and support for advanced applications.
